LOWPOWERDatasheet (PDF)

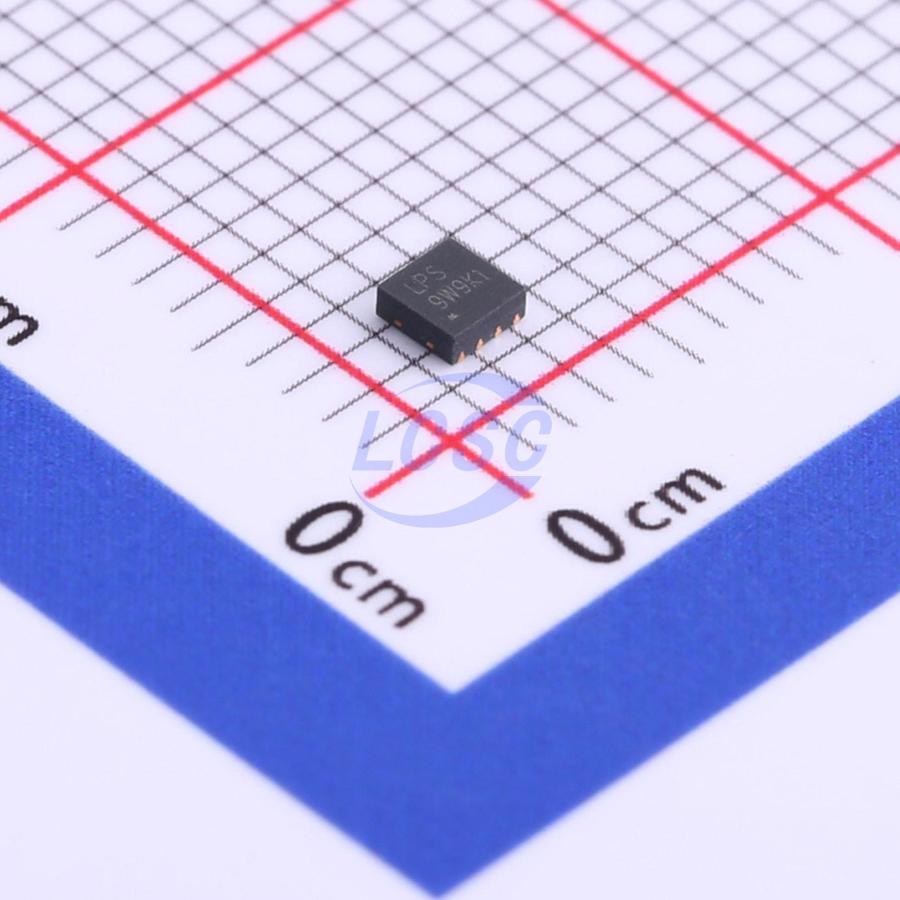

LP5301QVF
DFN-8-EP(2x2) Battery Management
DFN-8-EP(2x2)RoHSDiscontinued
Over Voltage and Over Current Protection IC
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP5301QVF
- Store part #
- C517041
- Package / case
- DFN-8-EP(2x2)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,055 in stock
#C517041
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.51 | ₹107.55 |
| 50+ | ₹18.79 | ₹939.50 |
| 150+ | ₹17.62 | ₹2,643.00 |
| 500+ | ₹16.15 | ₹8,075.00 |
| 2,500+ | ₹15.51 | ₹38,775.00 |
| 5,000+ | ₹15.12 | ₹75,600.00 |
5 × ₹21.51
₹107.55
excl. GST
₹126.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LP5301QVF
₹107.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- Operating Voltage
- 3.5V~36V
- Features
- Overcurrent Protection;Overvoltage protection;Programmable charging current;Output discharge function;Under-voltage lockout
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Discontinued
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.061 g
Overview
The LP5301 is an Over-Voltage-Protection(OVP) and programmable Over-Current-Protection (OCP) device. The device will switch off internal MOSFET to disconnect VIN to VOUT to protect load when any of input voltage, input current over the threshold. The Over temperature protection (OTP) function monitors chip temperature to protect the device. The LP5301 is available in SOT-23-6, DFN-8 2*2mm package. Standard products are Pb-free and Halogen-free.
Applications
- GPS
- PMP
- PAD
- MID
- Digital cameras
- Digital Videos
Key features
- Input Voltage Range: 3.5V to 36V
- Typical Output Power on Time: 9ms
- OVP Threshold: 6.1V
- OVP Threshold Time Less Than 1μs
- Programmable Current Limit up to 2.1A
- Low RDS(ON) Internal Switches:130mΩ @ 5V /1A
- Output Discharge
- Thermal Fault Protection
- SOT23-6, DFN-8 2*2mm Package
- RoHS Compliant and 100% Lead(Pb)-Free
