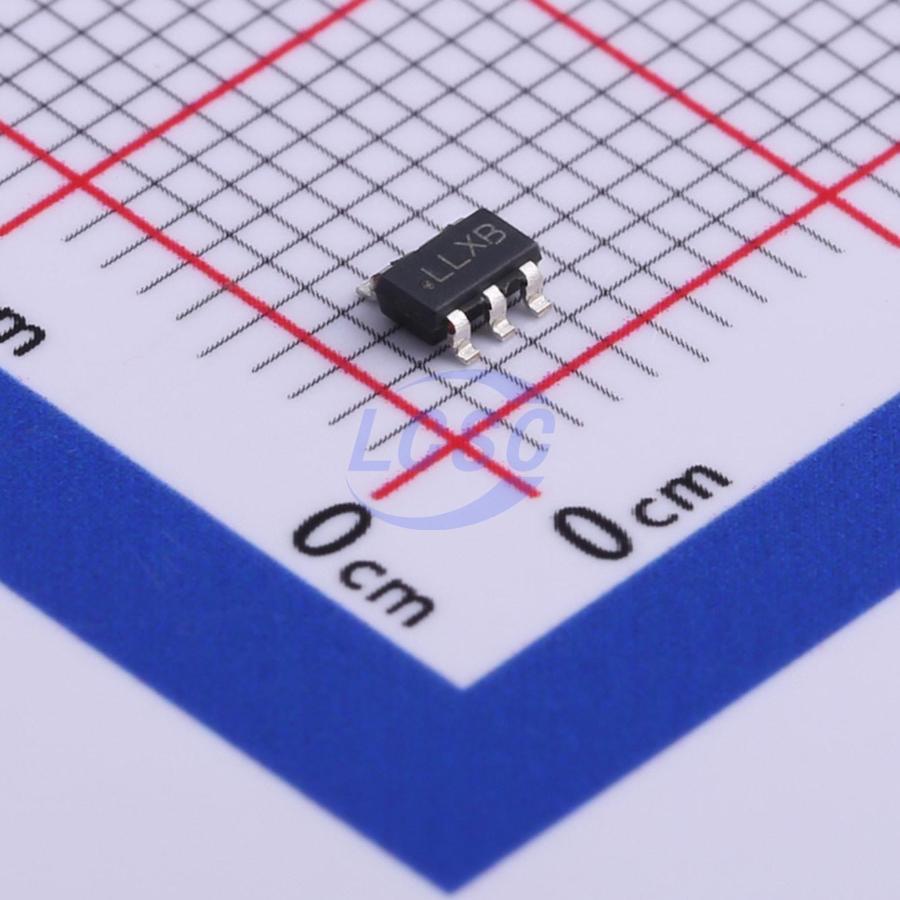

LP5907MFX-4.5/NOPB

The LP5907 is a low-noise LDO capable of delivering up to 250mA output current. This device is specifically designed for RF and analog circuits, meeting their requirements for low noise, high PSRR, low quiescent current, and low line/load transient response. The LP5907 employs innovative design techniques to achieve excellent noise performance without a noise bypass capacitor, while supporting remote placement of the output capacitor. The device operates with 1μF input and 1μF output ceramic capacitors (no separate noise bypass capacitor required). Fixed output voltage ranges from 1.2V to 4.5V in 25mV steps.

Applications

• Mobile phones
• Tablets
• Digital cameras
• Audio equipment
• Portable and battery-powered devices
• Portable medical devices
• Smart meters and field transmitters
• RF, PLL, VCO, and clock power supplies
• IP cameras
• Drones

Key features

• Input voltage range: 2.2V to 5.5V
• Output voltage range: 1.2V to 4.5V
• Stable performance with 1μF ceramic input and output capacitors
• No noise bypass capacitor required
• Remote output capacitor placement supported
• Thermal overload and short-circuit protection
• Operating junction temperature range: -40°C to 125°C
• Low output voltage noise: <6.5μV RMS
• PSRR: 82dB at 1kHz
• Output voltage tolerance: ±2%
• Ultra-low IQ (enabled): 12μA
• Low dropout: 120mV (typical)
• Create custom designs using LP5907 with WEBENCH VCH Power Designer
