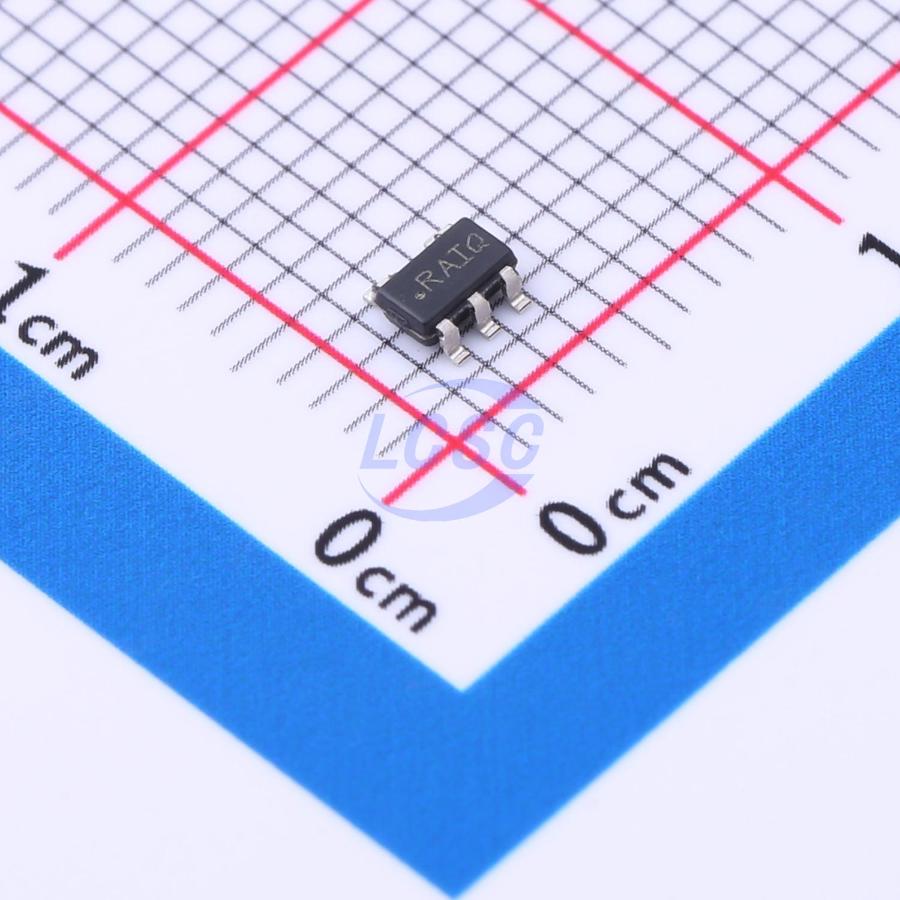

LP5907QMFX-4.5Q1

The LP5907-Q1 is a low-noise LDO that can supply 250 mA of output current. Designed to meet the requirements of RF and analog circuits, the LP5907-Q1 provides low noise, high PSRR, low quiescent current, and low line or load transient response figures. Using new innovative design techniques, the LP5907-Q1 offers class-leading noise performance without a noise bypass capacitor and the ability for remote output capacitor placement. The device is designed to work with a input and a output ceramic capacitor (no separate noise bypass capacitor is required). This device is available with fixed output voltages from 1.2 V to 4.5 V in 25-mV steps.

Applications

• ADAS Cameras and Radar
• Automotive Infotainment
• Telematics Systems
• Navigation Systems

Key features

• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
• Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
• Device HBM ESD Classification Level 2
• Device CDM ESD Classification Level C6
• Input Voltage Range: 2.2 V to 5.5 V
• Output Voltage Range: 1.2 V to 4.5 V
• Stable with 1-µF Ceramic Input and Output Capacitors
• No Noise Bypass Capacitor Required
• Remote Output Capacitor Placement
• Thermal-Overload and Short-Circuit Protection
• Output Current: 250 mA
• Low Output Voltage Noise: <6.5 µV RMS
• PSRR: 82 dB at 1 kHz
• Output Voltage Tolerance: ±2%
• Virtually Zero IQ (Disabled): <1 µA
• Very Low IQ (Enabled): 12 µA
• Start-up Time: 80 µs
• Low Dropout: 120 mV (Typical)
• -40°C to 125°C Junction Temperature Range for Operation
