LOWPOWER

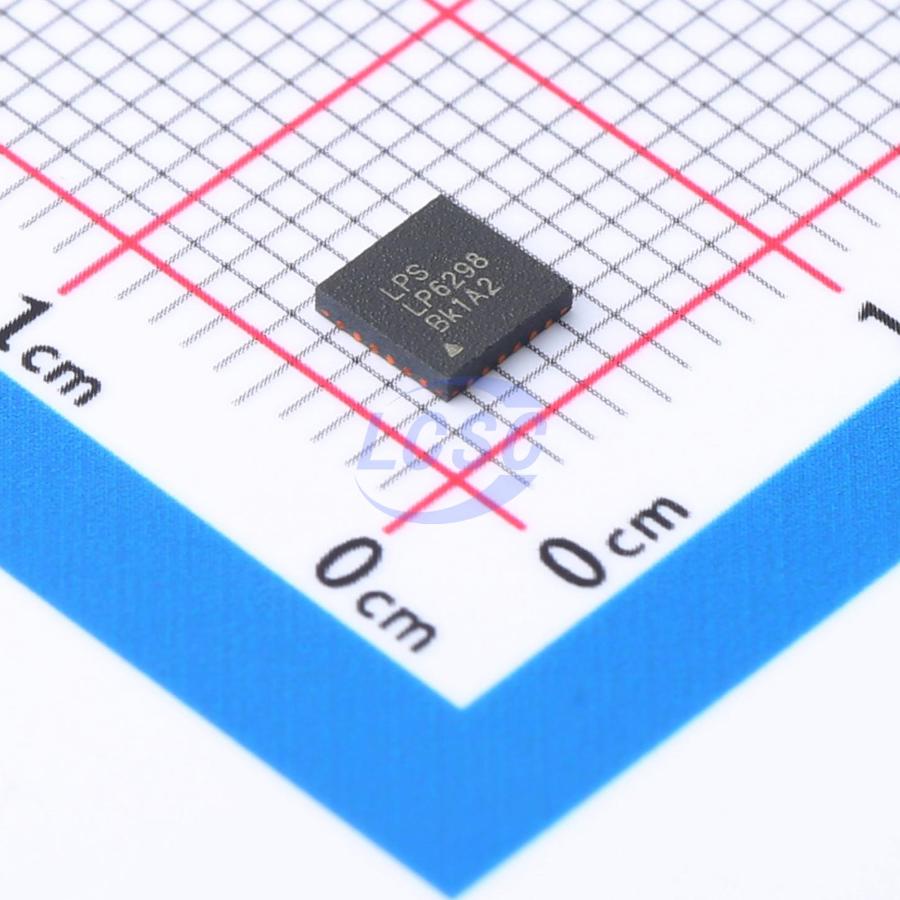

LP6298QVF

1 QFN-24(4x4) Buffers, Drivers, Receivers, Transceivers

QFN-24(4x4)RoHSActive

14CH Programmable Gamma and VCOM Buffers

Manufacturer: LOWPOWER
Manufacturer part #: LP6298QVF
Store part #: C2902423
Package / case: QFN-24(4x4)
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C2902423

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹126.94	₹126.94
10+	₹102.12	₹1,021.20
30+	₹89.82	₹2,694.60
100+	₹77.51	₹7,751.00
500+	₹70.17	₹35,085.00
1,000+	₹66.49	₹66,490.00

Quantity (min 1)

1 × ₹126.94

₹126.94

excl. GST

₹149.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP6298QVF

₹126.94 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Short-Circuit Protection;Output enable
Current - Output High(IOH): 140mA
Current - Output Low(IOL): 70mA
Number of Elements: 1

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.193 g

Overview

The LP6298 integrates 14 channels of programmable gamma buffers, and a programmable operational amplifier that drives the LCD VCOM. The device uses IIC interface for setting such as output voltages, programming gamma and VCOM codes into EEPROM.

Applications

TFT LCD Panels

Key features

The LP6298 providers a 14-channel programmable gamma buffer and 1-channel programmable VCOM buffer for applications in TFT-LCD Panel. Each of the 14-channel gamma buffers is generated using a 10-bit resolution digital-to-analog converter together with a buffer through IIC control.
The LP6298 also features a programmable operational amplifier that drives the LCD VCOM. This unity-gain buffer is capable of rail-to-rail output, fast slew rate, and ±140mA output short-circuits current. The VCOM buffer voltage is IIC programmed using 7-bit resolution.
The LP6298 includes EEPROM to store gamma codes and VCOM codes, and control it through IIC interface at the real time.
The LP6298 is available in a space saving QFN24 (0.5mm pitch) package.
