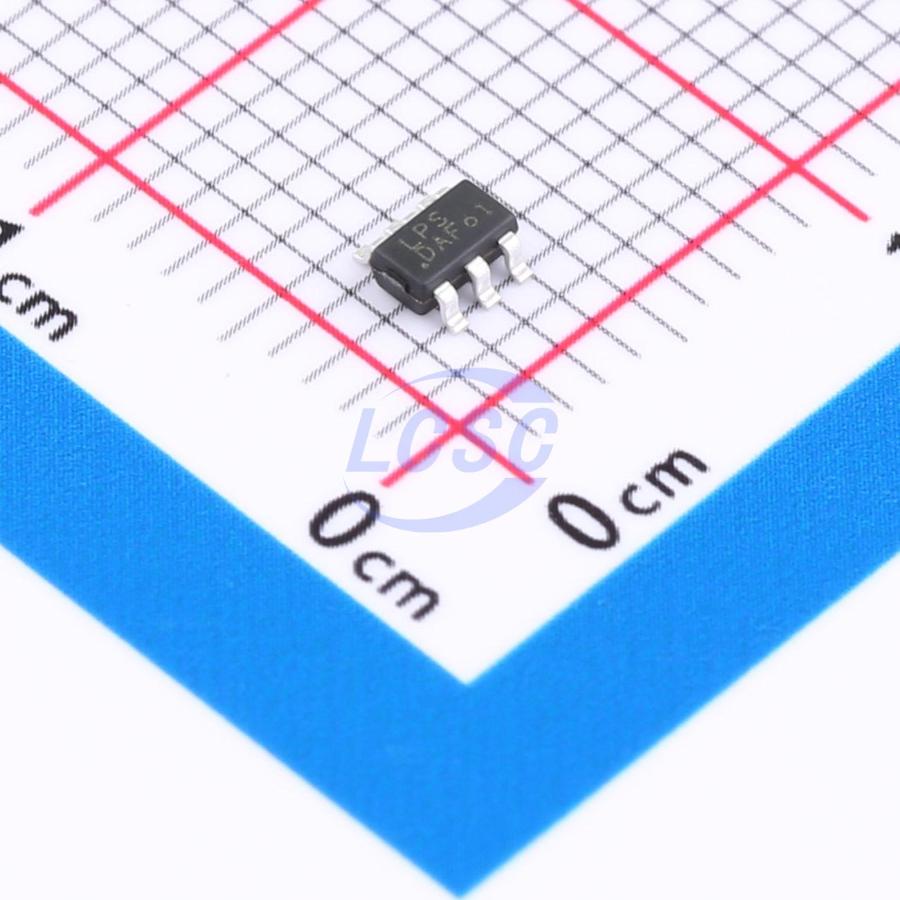

LP78080B6F
Battery Charging IC Lithium Battery SOT-23-6
Driver chip for lithium battery small fan
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP78080B6F
- Store part #
- C47345739
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,965 in stock
#C47345739
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.73 | ₹163.65 |
| 50+ | ₹28.58 | ₹1,429.00 |
| 150+ | ₹26.80 | ₹4,020.00 |
| 500+ | ₹24.58 | ₹12,290.00 |
| 3,000+ | ₹23.60 | ₹70,800.00 |
| 6,000+ | ₹23.01 | ₹1,38,060.00 |
5 × ₹32.73
₹163.65
excl. GST
₹193.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP78080B6F
₹163.65 for 5 + GST
Specifications
- Quiescent Current
- 15uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.4V~5.5V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Charge termination;Programmable charging current;Overcurrent Protection;Short-Circuit Protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
LP78080 is a driver IC designed specifically for portable lithium battery mini fans. It integrates lithium battery charge management with path management, featuring charging status, full charge, and low battery LED indicators, with three selectable output operating modes via a push button. The IC employs a linear charging architecture with a built-in fixed charging current of 500mA or 800mA, supporting a complete charging sequence including trickle charge, constant current, and constant voltage phases. The IC integrates button debounce functionality along with multiple protection features, including short-circuit protection, over-temperature protection, and reverse battery protection. High-performance ESD protection circuits are implemented on all IC ports, ensuring exceptional reliability and stability. In addition, the LP78080 application circuit is simple, requiring only a minimal number of external components to realize a complete portable lithium battery charging fan solution, significantly reducing overall system size.
Applications
- Portable lithium battery fan
Key features
- 500mA or 800mA lithium battery charging with adaptive charge current
- LED indication for charging, fully charged, and low battery status
- Single-button control support
- 3-level airflow adjustment
- Low standby current < 15uA
- Simple peripheral circuit
- Over-current protection, short-circuit protection, and over-temperature protection
- Package: SOT23-6 or ESOP8
