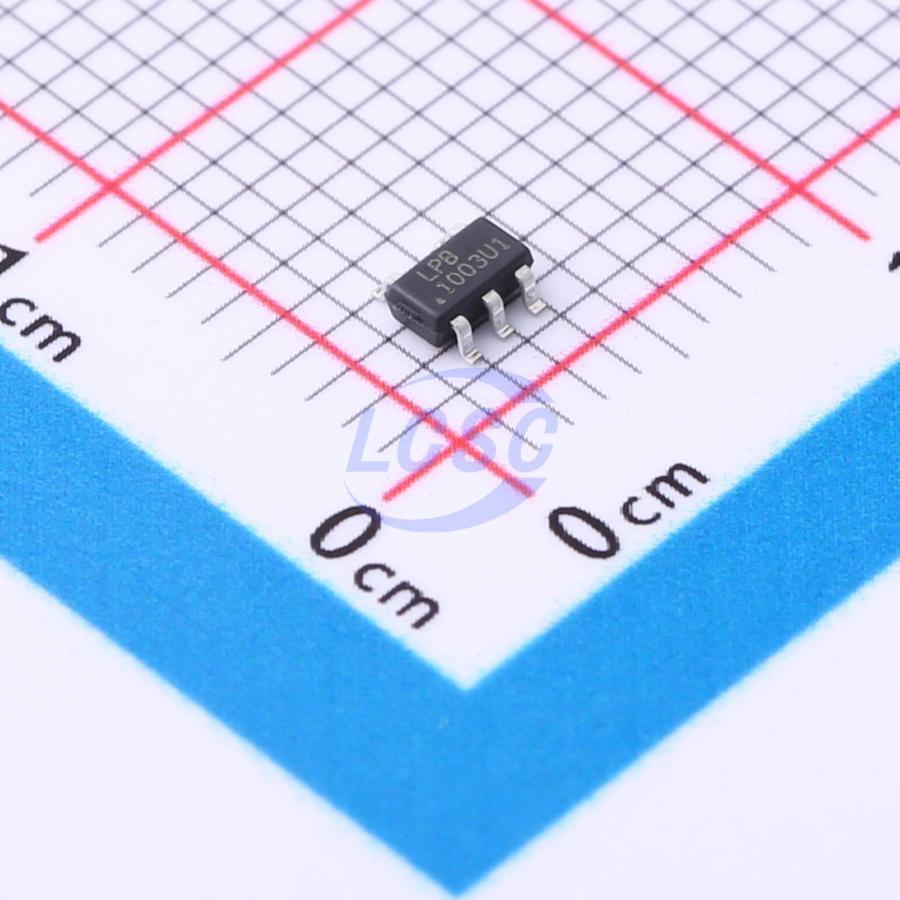

LPB1003B5F
Lithium Battery SOT-23-5 Battery Management
One Cell Li-Ion Battery Protection IC
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LPB1003B5F
- Store part #
- C2902427
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,608 in stock
#C2902427
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹6.34 | ₹6.34 |
| 10+ | ₹5.03 | ₹50.30 |
| 30+ | ₹4.38 | ₹131.40 |
| 100+ | ₹3.89 | ₹389.00 |
| 500+ | ₹3.49 | ₹1,745.00 |
| 1,000+ | ₹3.29 | ₹3,290.00 |
1 × ₹6.34
₹6.34
excl. GST
₹7.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LPB1003B5F
₹6.34 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 2.2uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 2.4V~10V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
The LPB1003 product is a highly integrated solution for Li-Ion battery protection. It includes advanced power MOSFETs, precision voltage detection circuitry and delay circuitry for all the protection functions required in battery applications, including overcharge, overdischarge, overcurrent and load short circuit protection. Its accurate overcharge detection voltage ensures a safe and efficient charging cycle. The low standby current allows for almost no battery current to be consumed during storage. The LPB1003 is available in an ultra-small SOT23-5 package. Its simple peripheral circuit requires only one external capacitor. This chip is suitable for any electronic device that requires long-term continuous power supply from a Li-Ion battery.
Applications
- Any application that requires long periods of power from a Li-Ion battery
Key features
- Integrate Advanced Power MOSFET with Equivalent of 50mΩ RSS(ON)
- Two-step Overcurrent Detection: Overdischarge Current Load Short Circuiting
- Overcharge Current Protection
- 0V Battery Charging Function
- Delay Times are generated inside
- High-accuracy Voltage Detection
- Low Current Consumption: Operation Mode: 3.5μA typ.
