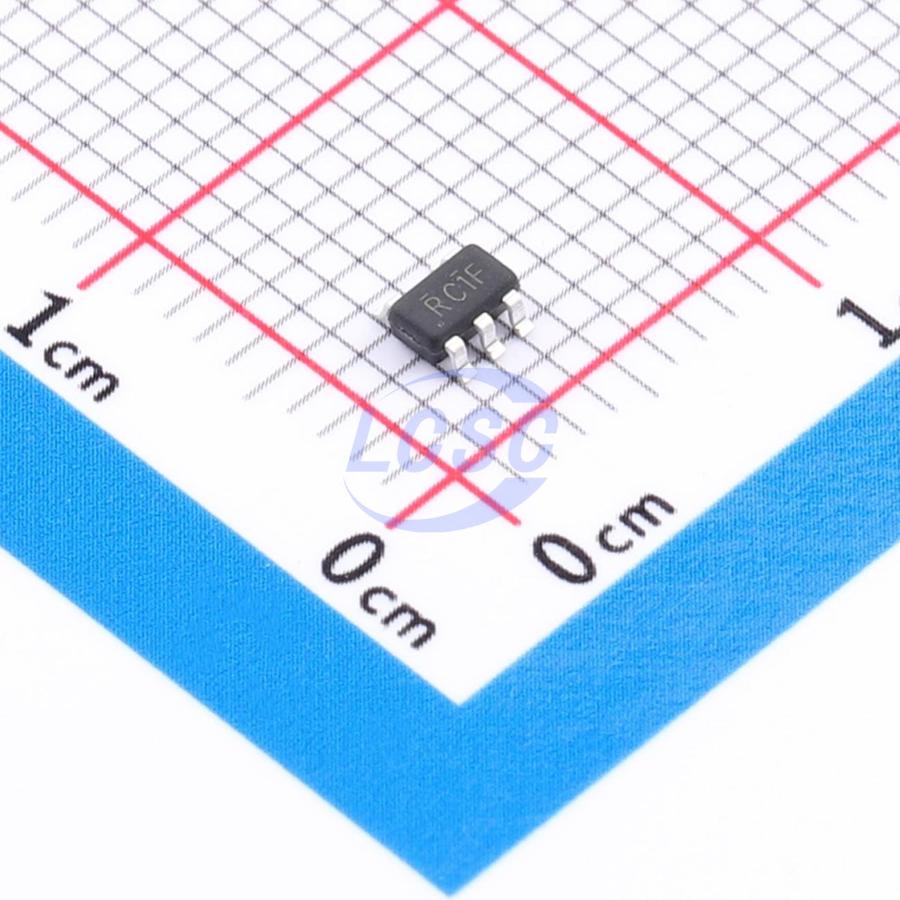

LPV321M5X/NOPB-JSM
140mA 1 200uV 8.5V/us 70dB 1pA 400uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LPV321M5X/NOPB-JSM
- Store part #
- C49367753
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,385 in stock
#C49367753
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.69 | ₹178.45 |
| 50+ | ₹28.27 | ₹1,413.50 |
| 150+ | ₹25.10 | ₹3,765.00 |
| 500+ | ₹21.13 | ₹10,565.00 |
| 3,000+ | ₹19.36 | ₹58,080.00 |
| 6,000+ | ₹18.30 | ₹1,09,800.00 |
5 × ₹35.69
₹178.45
excl. GST
₹210.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LPV321M5X/NOPB-JSM
₹178.45 for 5 + GST
Specifications
- Output Current
- 140mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 200uV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 400uA
- Gain Bandwidth Product
- 10MHz
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The LPV321M5X/NOPB enables low-voltage operation with rail-to-rail input and output, delivering an excellent speed/power ratio with outstanding bandwidth (10MHz) and slew rate (8.5V/μs). This op amp features unity-gain stability and extremely low input bias current. The LPV321M5X/NOPB offers low offset voltage, guaranteed no greater than 0.5mV at 25°C with Vs = 5V and VCM = Vs/2. The LPV321M5X/NOPB op amp operates from a single supply of 2.1V to 5.5V or dual supplies of ±1.05V to ±2.75V. The device is well suited for sensor interfaces, active filters, and portable applications. Available in SOT23-5 package.
Applications
- Sensors
- Active filters
- Test equipment
- Driving A/D converters
- Photodiode amplification
Key features
- High gain bandwidth: 10MHz
- Excellent slew rate: 8.5V/μs
- Rail-to-rail input and output
- Low offset voltage: ±0.5mV max
- Input voltage range: -0.2V to +5.7V at Vs = 5.5V
- Supply range: +2.1V to +5.5V
- Operating range: -40°C to +125°C
- Miniature packages: SOT23-5/SC70
