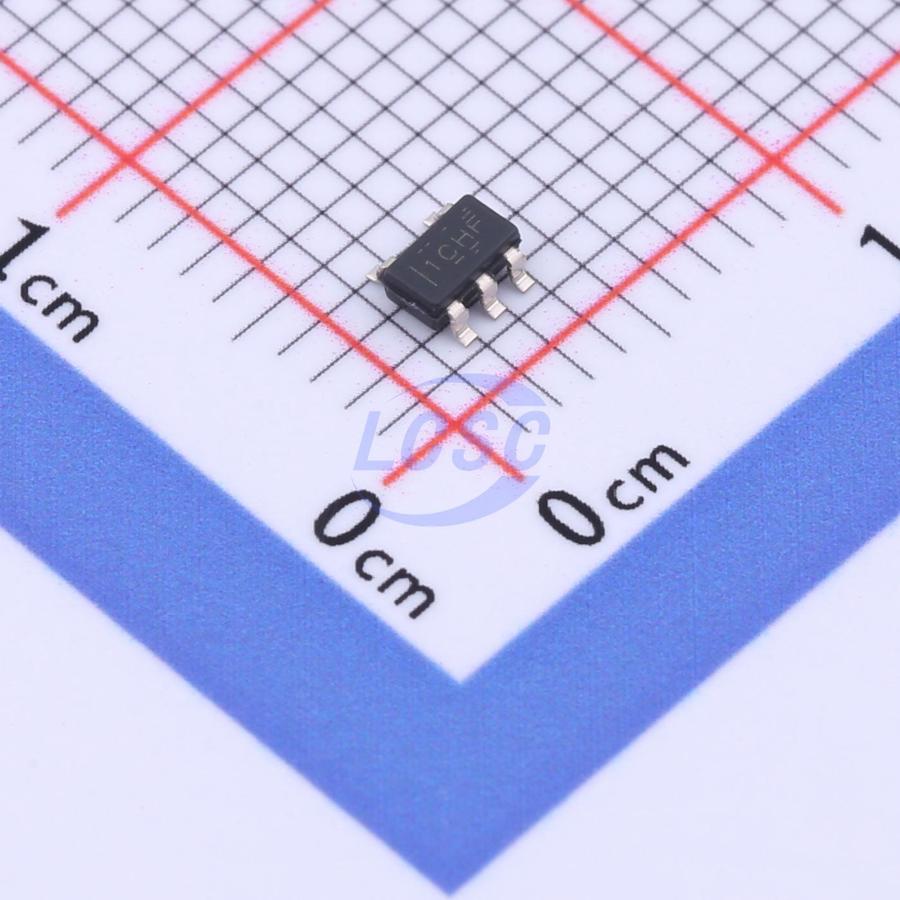

LPV821DBVR

21mA 1 1.5uV 0.0033V/us 125dB 7pA 650nA 8kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Precision, nano-watt power, zero-drift amplifiers

Manufacturer: TI
Manufacturer part #: LPV821DBVR
Store part #: C2864006
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,977 in stock

#C2864006

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹268.37	₹268.37
10+	₹236.21	₹2,362.10
30+	₹213.61	₹6,408.30
100+	₹192.96	₹19,296.00
500+	₹183.41	₹91,705.00
1,000+	₹179.72	₹1,79,720.00

Quantity (min 1)

1 × ₹268.37

₹268.37

excl. GST

₹316.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LPV821DBVR

₹268.37 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 21mA
Number of Channels: 1
Vos - Input Offset Voltage: 1.5uV
Slew Rate: 0.0033V/us
Input Offset Current(Ios): 14pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 125dB
Ib - Input Bias Current: 7pA
Input Offset Voltage Drift(Vos TC): 96nV/℃
Quiescent Current: 650nA
Gain Bandwidth Product: 8kHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 215nV/√Hz@100Hz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.7V~3.6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.18 g
