LR1106G-33-AE3-3-R

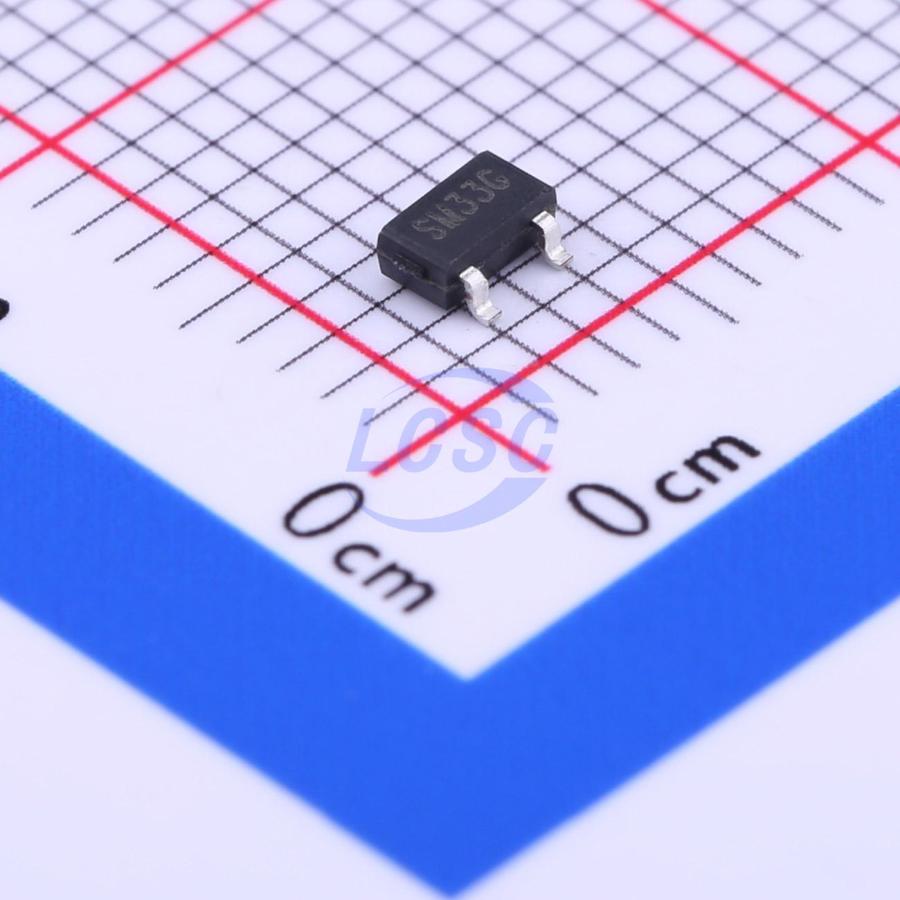

Linear Voltage Regulator IC Positive Fixed 1 Output 400mA SOT-23
SOT-23ROHS CompliantActive
CMOS high-current positive voltage regulator
- Manufacturer
- UTC
- Manufacturer part #
- LR1106G-33-AE3-3-R
- Store part #
- C250820
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C250820
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.65 | ₹63.25 |
| 50+ | ₹10.16 | ₹508.00 |
| 150+ | ₹8.93 | ₹1,339.50 |
| 500+ | ₹7.99 | ₹3,995.00 |
| 3,000+ | ₹6.77 | ₹20,310.00 |
| 6,000+ | ₹6.40 | ₹38,400.00 |
5 × ₹12.65
₹63.25
excl. GST
₹74.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR1106G-33-AE3-3-R
₹63.25 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 400mA
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The UTC LR1106 series are positive voltage regulators that developed in CMOS technology with highly precise, low power consumption. It is capable of large currents with a significantly small dropout voltage. The device consists of a driver transistor, a precision reference voltage and an error amplifier. Basically, output voltage is selectable in 0.1V step form 1.5V to 6.0V, 2.85V also is available.
Key features
- Maximum Output Current: 400mA
- Maximum Operating Voltage: 8V
- Highly Accurate: ±2%
- Output Voltage Temperature Characteristics: TYP ±100ppm/°C
