LRCDatasheet (PDF)

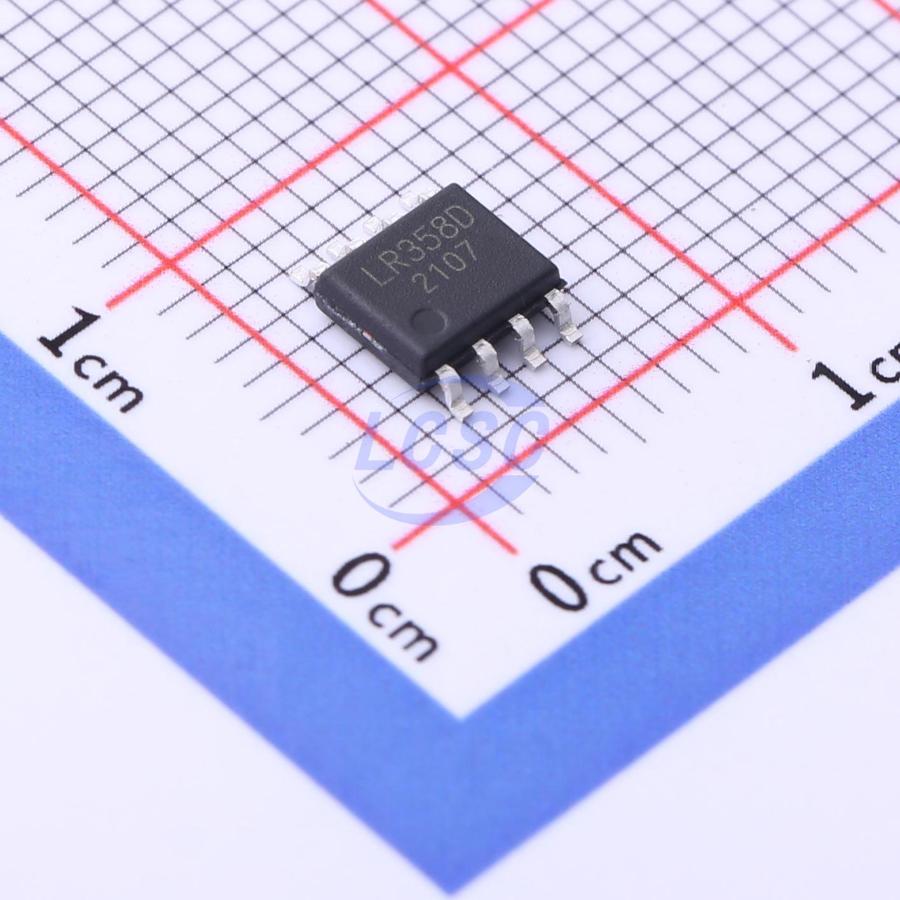

LR358D
40mA 2 7mV 1V/us 250nA 75dB 2mA SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Dual Operational Amplifier
- Manufacturer
- LRC
- Manufacturer part #
- LR358D
- Store part #
- C2912050
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C2912050
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.51 | ₹115.10 |
| 100+ | ₹9.66 | ₹966.00 |
| 300+ | ₹8.73 | ₹2,619.00 |
| 1,000+ | ₹8.03 | ₹8,030.00 |
| 4,000+ | ₹7.25 | ₹29,000.00 |
| 8,000+ | ₹6.97 | ₹55,760.00 |
10 × ₹11.51
₹115.10
excl. GST
₹135.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LR358D
₹115.10 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -20℃~+85℃
- Ib - Input Bias Current
- 250nA
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Quiescent Current
- 2mA
- Features
- Built-in compensation
- Dual Supply
- -1.5V~13V
- Single Supply
- 3V~26V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.175 g
Overview
The LR358/LR2904 consists of dual independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range. Operation from split power supplies is also possible so long as the difference between the two supplies 3V to 26V. Application areas include transducer amplifiers, DC gain blocks and all the conventional OP amp circuits which now can be easily implemented in single power supply systems.
Key features
- Internally frequency compensated for unity gain
- Large DC voltage gain: 100dB
- Wide operating supply range (Vcc = 3V~26V or ±1.5V~±13V)
- Input common - mode voltage includes ground
- Large output voltage swing: From 0V to Vcc - 1.5V
- Power drain suitable for battery operation
- Available in SOP - 8 package
