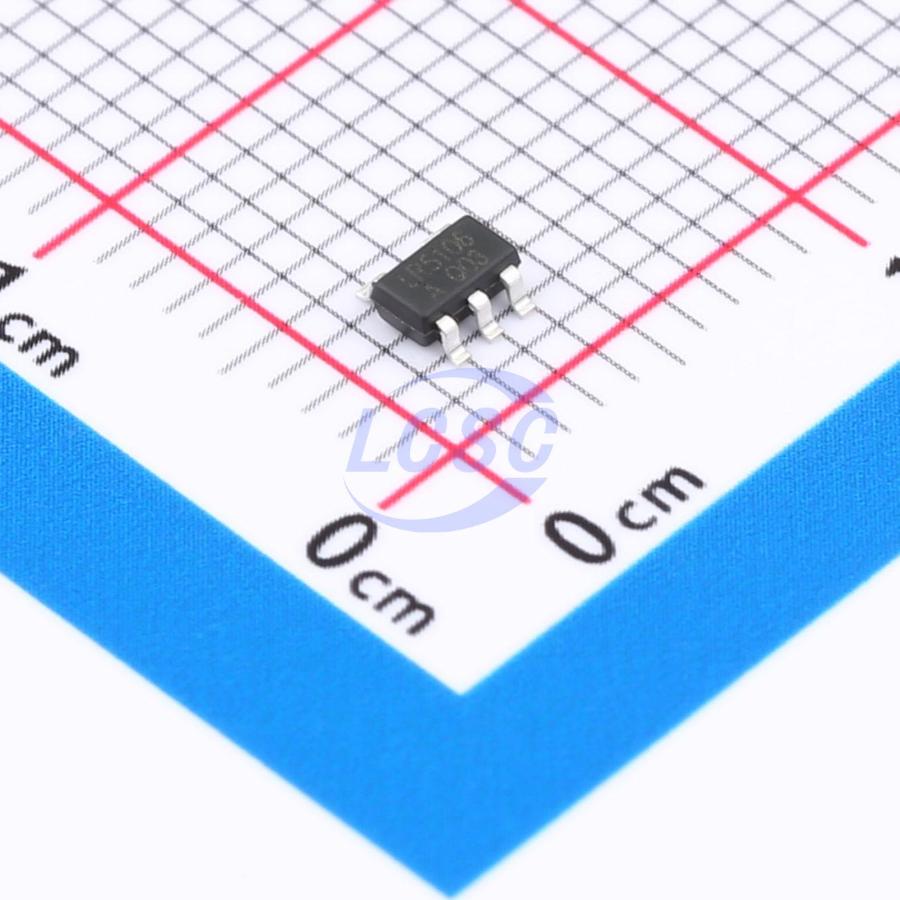

LR5106A-T
Lithium Battery 600mA SOT-23-5 Battery Management RoHS
Independent linear lithium battery charging chip
- Manufacturer
- LR
- Manufacturer part #
- LR5106A-T
- Store part #
- C46956283
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,730 in stock
#C46956283
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.30 | ₹83.00 |
| 100+ | ₹6.56 | ₹656.00 |
| 300+ | ₹5.69 | ₹1,707.00 |
| 3,000+ | ₹5.04 | ₹15,120.00 |
| 6,000+ | ₹4.52 | ₹27,120.00 |
| 9,000+ | ₹4.26 | ₹38,340.00 |
10 × ₹8.30
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR5106A-T
₹83.00 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Reverse current blocking;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
LR5106A is a highly integrated, cost-effective single-cell lithium-ion battery charger IC. It employs constant-current/constant-voltage linear control with minimal external components, making it ideal for portable applications and compatible with both USB power and adapter power sources. The LR5106A features an internal PMOSFET architecture with reverse-charge protection, eliminating the need for external sense resistors and isolation diodes. Thermal feedback automatically adjusts the charge current to limit die temperature under high-power or high-temperature conditions. The full-charge voltage is fixed at 4.2V. Charge current is programmable via an external resistor on the PROG pin, up to 0.6A. When the input voltage is removed, the LR5106A automatically enters a low-current state with battery leakage current below 3uA. Additional features include charge current monitoring, input overvoltage protection, undervoltage lockout, automatic recharge, and two status pins for indicating charge status and input voltage presence.
Applications
- Mobile phone charging docks
- Portable media players
- Bluetooth headsets
Key features
- Up to 32V input voltage with 6.9V overvoltage protection
- No external MOSFET, sense resistor, or isolation diode required
- High-accuracy full-charge detection voltage threshold: 4.2V (±1%)
- Standby current < 3uA
- BAT-VDD reverse current blocking
- 0V battery charging supported
- Linear charging mode, charge current up to 0.6A
- Trickle/CC/CV three-stage charging
- Externally adjustable charge current
- Intelligent thermal regulation of charge current
- Battery temperature detection and protection
- Automatic recharge
- Charge status indication
- Compliant with latest IEC62368 standard
- SOT23-5 package
