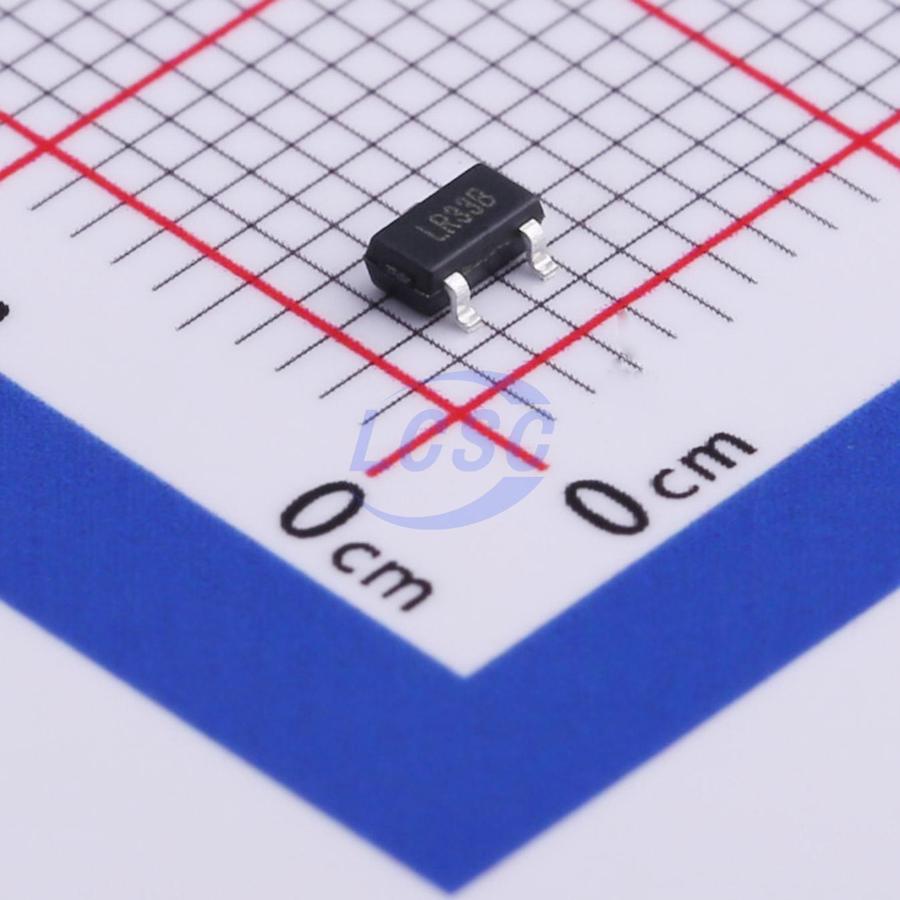

LR7533-T
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
Low-power, high-voltage voltage regulator chip
- Manufacturer
- LR
- Manufacturer part #
- LR7533-T
- Store part #
- C486069
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,14,210 in stock
#C486069
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.01 | ₹60.10 |
| 100+ | ₹4.86 | ₹486.00 |
| 300+ | ₹4.29 | ₹1,287.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.19 | ₹19,140.00 |
| 9,000+ | ₹3.02 | ₹27,180.00 |
10 × ₹6.01
₹60.10
excl. GST
₹70.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR7533-T
₹60.10 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.8uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 100mA
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
The LR75XX series is a group of three-terminal low-power high-voltage regulators implemented in CMOS technology. They allow input voltages up to 24V, and CMOS technology ensures low dropout voltage and low quiescent current. Several fixed output voltage options are available, ranging from 2.5V to 5.0V. The LR75XX can deliver 100mA of output current while maintaining good regulation performance. Due to the low dropout voltage between input and output and the low quiescent current, these devices are particularly suitable for computers, consumer products, and industrial equipment.
Applications
- Smart lighting equipment
- Battery-powered devices
- Auxiliary power supplies
- Communication equipment
Key features
- Low power consumption
- Low dropout voltage
- High input voltage (up to 24V)
- Quiescent current 1.5μA
- Output voltage accuracy: ±2% tolerance
- Integrated short-circuit protection
