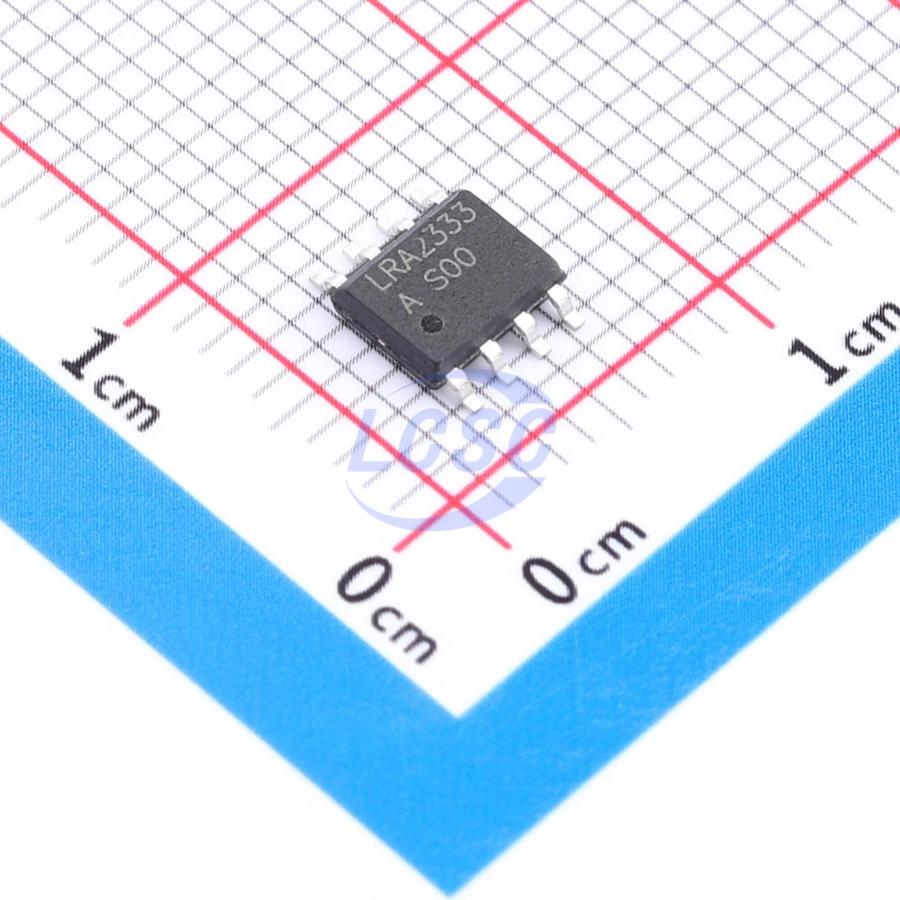

LRA2333A-D

12mA 2 2uV 0.1V/us 1pA 110dB 15uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

Manufacturer: LR
Manufacturer part #: LRA2333A-D
Store part #: C54333733
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,375 in stock

#C54333733

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹51.35	₹256.75
50+	₹40.77	₹2,038.50
150+	₹36.13	₹5,419.50
500+	₹30.43	₹15,215.00
2,500+	₹27.89	₹69,725.00
4,000+	₹26.41	₹1,05,640.00

Quantity (min 5, multiples of 5)

5 × ₹51.35

₹256.75

excl. GST

₹302.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LRA2333A-D

₹256.75 for 5 + GST

Specifications

Output Current: 12mA
Number of Channels: 2
Vos - Input Offset Voltage: 2uV
Slew Rate: 0.1V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 20nV/℃
Quiescent Current: 15uA
Gain Bandwidth Product: 350kHz
Input Voltage Noise Density: 55nV/√Hz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: 900mV~2.75V;-2.75V~-900mV
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.17 g

Overview

The LRA333, LRA2333, and LRA4333 series are CMOS operational amplifiers featuring ultra-low offset voltage (typical 2μV) with near-zero drift over time and temperature. These devices employ a high-impedance input design with a common-mode range that extends 100mV beyond the supply rails, while the rail-to-rail output swings to within 50mV of either supply rail. They support single-supply or dual-supply operation, with a minimum single-supply voltage of 1.8V (dual-supply ±0.9V) and a maximum of 5.5V (dual-supply ±2.75V), optimized specifically for low-voltage, single-supply applications. At only 15μA quiescent current per amplifier, this series delivers 350kHz bandwidth with excellent CMRR, eliminating the crossover distortion inherent in conventional complementary input stages. These characteristics make the devices ideal for sensor interfaces, active filters, and low-voltage or battery-powered systems.
