LRDatasheet (PDF)

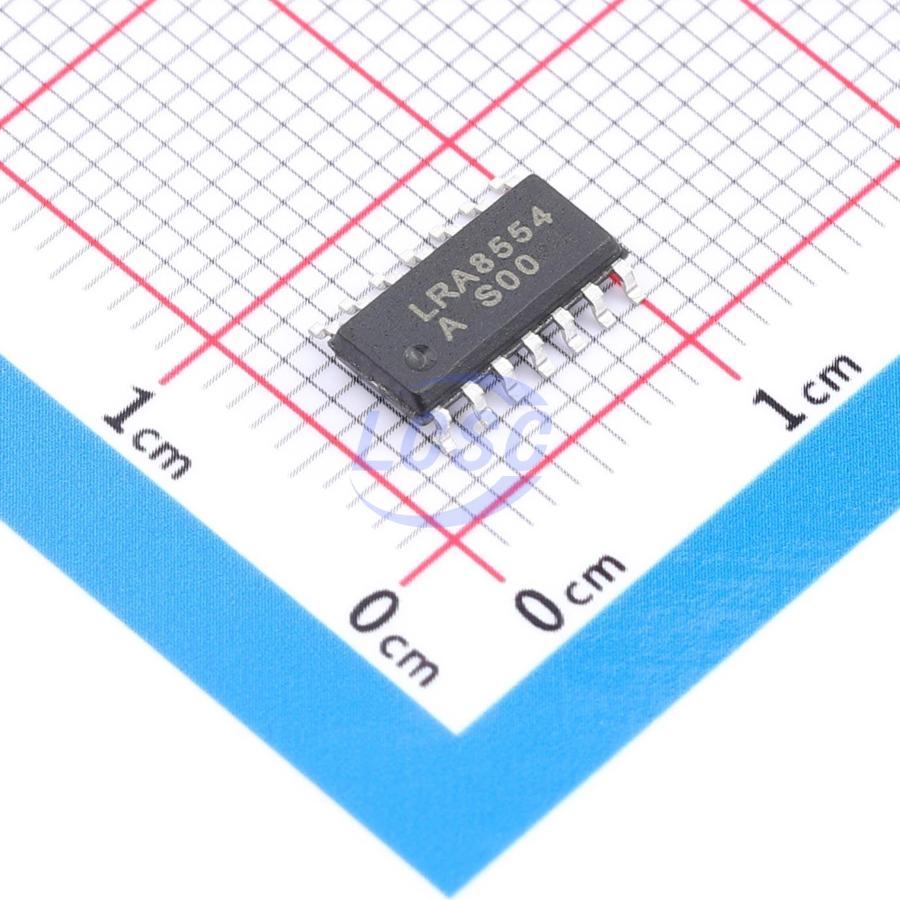

LRA8554A-D
20mA 4 1uV 1.2V/us 125dB 1.7MHz 460uA Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- LR
- Manufacturer part #
- LRA8554A-D
- Store part #
- C54333731
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,428 in stock
#C54333731
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.06 | ₹91.06 |
| 10+ | ₹73.94 | ₹739.40 |
| 30+ | ₹65.29 | ₹1,958.70 |
| 100+ | ₹56.84 | ₹5,684.00 |
| 500+ | ₹51.77 | ₹25,885.00 |
| 1,000+ | ₹49.02 | ₹49,020.00 |
1 × ₹91.06
₹91.06
excl. GST
₹107.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LRA8554A-D
₹91.06 for 1 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 1.2V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 5nV/℃
- Gain Bandwidth Product
- 1.7MHz
- Quiescent Current
- 460uA
- Input Voltage Noise Density
- 40nV/√Hz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- 900mV~2.75V;-2.75V~-900mV
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.244 g
Overview
The LRA8551, LRA8552, and LRA8554 series CMOS op-amps feature ultra-low offset voltage (1μV typical) with near-zero drift over time and temperature. Operating at a low supply current of 460μA/amplifier, these op-amps deliver 1.7MHz bandwidth and 1.2V/μs slew rate, with excellent CMRR and no crossover distortion associated with conventional complementary input stages — making them ideal for sensor interfaces, active filters, and low-voltage or battery-powered systems. The LRA8551, LRA8552, and LRA8554 series are available in SOT/SOP packages and operate over an extended temperature range of -40℃ to +125℃.
Applications
- Active filters
- Photodiode amplifiers
- Piezoelectric sensors
- Test equipment
- Medical instruments
- Audio output
- Portable systems
- Smoke detectors
- Laptops
- Mobile communications
Key features
- Rail-to-rail input and output
- Input offset voltage drift: 0.005μV/℃
- Low offset voltage: 1μV
- Supply voltage range: 1.8V ~ 5.5V
- Gain bandwidth product: 1.7MHz
- Slew rate: 1.2V/μs
- Micropower: typical quiescent current 0.46mA/op-amp
- Overload recovery time: 8.8μs
- Low noise: 1μVₚ₋ₚ (0.01 - 10Hz)
- High gain, CMRR: 125dB, PSRR: 130dB
- SOT/SOP/DFN/MSOP/TSOP packages
