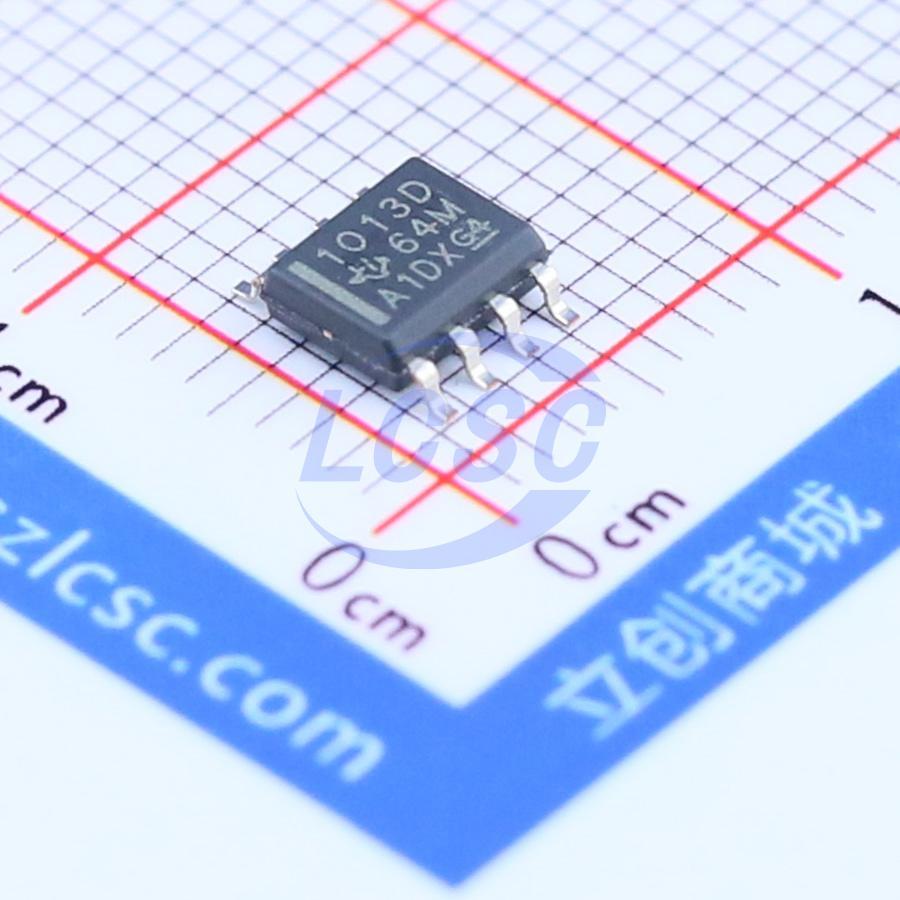

LT1013DDR

2 200uV 0.4V/us 97dB 15nA 1MHz 350uA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Dual Precision Operational Amplifier

Manufacturer: TI
Manufacturer part #: LT1013DDR
Store part #: C80103
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,320 in stock

#C80103

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹121.20	₹121.20
10+	₹99.45	₹994.50
30+	₹88.56	₹2,656.80
100+	₹77.69	₹7,769.00
500+	₹67.67	₹33,835.00
1,000+	₹64.42	₹64,420.00

Quantity (min 1)

1 × ₹121.20

₹121.20

excl. GST

₹143.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LT1013DDR

₹121.20 for 1 + GST

Specifications

Number of Channels: 2
Vos - Input Offset Voltage: 200uV
Slew Rate: 0.4V/us
Input Offset Current(Ios): 200pA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 97dB
Ib - Input Bias Current: 15nA
Input Offset Voltage Drift(Vos TC): 700nV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 350uA
Features: Reverse-phase input protection
Dual Supply: -15V~15V
Single Supply: 5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.231 g

Overview

The LT1013x devices are dual precision operational amplifiers, featuring high gain, low supply current, low noise, and low-offset-voltage temperature coefficient. The LT1013x devices can be operated from a single 5-V power supply; the common-mode input voltage range includes ground, and the output can also swing to within a few millivolts of ground. Crossover distortion is eliminated. The LT1013x can be operated with both dual ± 15-V and single 5-V supplies. The LT1013C and LT1013D are characterized for operation from 0℃ to 70℃. The LT1013DI is characterized for operation from -40℃ to 105℃. The LT1013M, LT1013AM, and LT1013DM are characterized for operation over the full temperature range of -55℃ to 125℃.

Applications

Thermocouple Amplifiers
Low-Side Current Measurement Instrumentation Amplifiers

Key features

Single-Supply Operation
Input Voltage Range Extends to Ground
Output Swings to Ground While Sinking Current
Phase Reversal Protection
Input Offset Voltage – 150 μV Maximum at 25℃ for LT1013AM
Offset-Voltage Temperature Coefficient – 2 μV/℃ Maximum for LT1013AM
Input Offset Current – 0.8 nA Maximum at 25℃ for LT1013AM
High Gain – 1.5 V/μV Minimum (RL = 2 kΩ) for LT1013AM; 0.8 V/μV Minimum (RL = 600 kΩ) for LT1013AM
Low Supply Current – 0.5 mA Maximum at TA = 25℃ for LT1013AM
Low Peak-to-Peak Noise Voltage – 0.55 μV Typical
Low Current Noise – 0.07 pA/√Hz Typical
