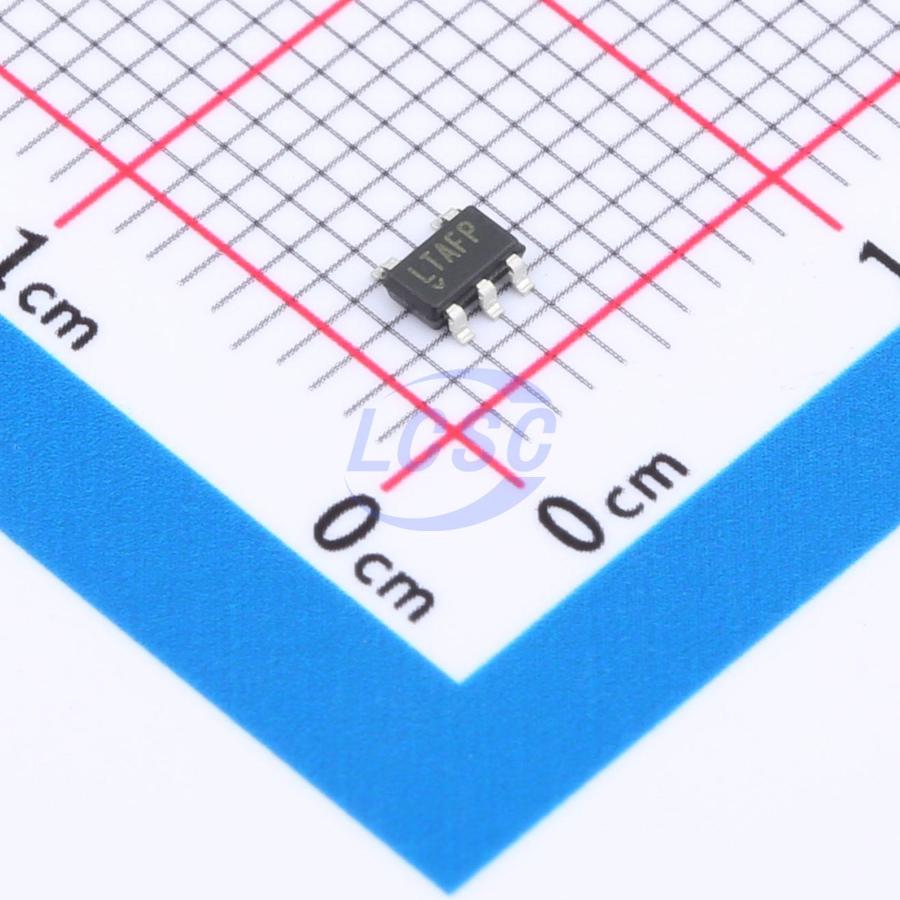

LT6220IS5#TRPBF
TSOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
TSOT-23-5ROHS3 CompliantActive
Single/Dual/Quad 60MHz, Low Power, Rail-to-Rail Input and Output Precision Op Amps
- Manufacturer
- ADI
- Manufacturer part #
- LT6220IS5#TRPBF
- Store part #
- C673000
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
969 in stock
#C673000
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹847.33 | ₹847.33 |
| 10+ | ₹732.08 | ₹7,320.80 |
| 30+ | ₹661.98 | ₹19,859.40 |
| 100+ | ₹603.16 | ₹60,316.00 |
1 × ₹847.33
₹847.33
excl. GST
₹999.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LT6220IS5#TRPBF
₹847.33 for 1 + GST
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
Single/Dual/Quad 60MHz, 20V/µs, Low Power, Rail-to-Rail Input and Output Precision Op Amps
Applications
- Low Voltage, High Frequency Signal Processing
- Driving A/D Converters
- Rail-to-Rail Buffer Amplifiers
- Active Filters
- Video Amplifiers
- Fast Current Sensing Amplifiers
Key features
- Gain Bandwidth Product: 60MHz
- Input Common Mode Range Includes Both Rails
- Output Swings Rail-to-Rail
- Low Quiescent Current: 1mA Max
- Input Offset Voltage: 350µV Max
- Input Bias Current: 150nA Max
- Wide Supply Range: 2.2V to 12.6V
- Large Output Current: 50mA Typ
- Low Voltage Noise: 10nV√Hz Typ
- Slew Rate: 20V/µs Typ
- Common Mode Rejection: 102dB Typ
- Power Supply Rejection: 105dB Typ
- Open-Loop Gain: 100V/mV Typ
- Operating Temperature Range: -40°C to 85°C
- Single in the 8-Lead SO and 5-Lead Low Profile (1mm) ThinSOT Packages
- Dual in the 8-Lead SO and (3mm×3mm) DFN Packages
- Quad in the 16-Lead SSOP Package
