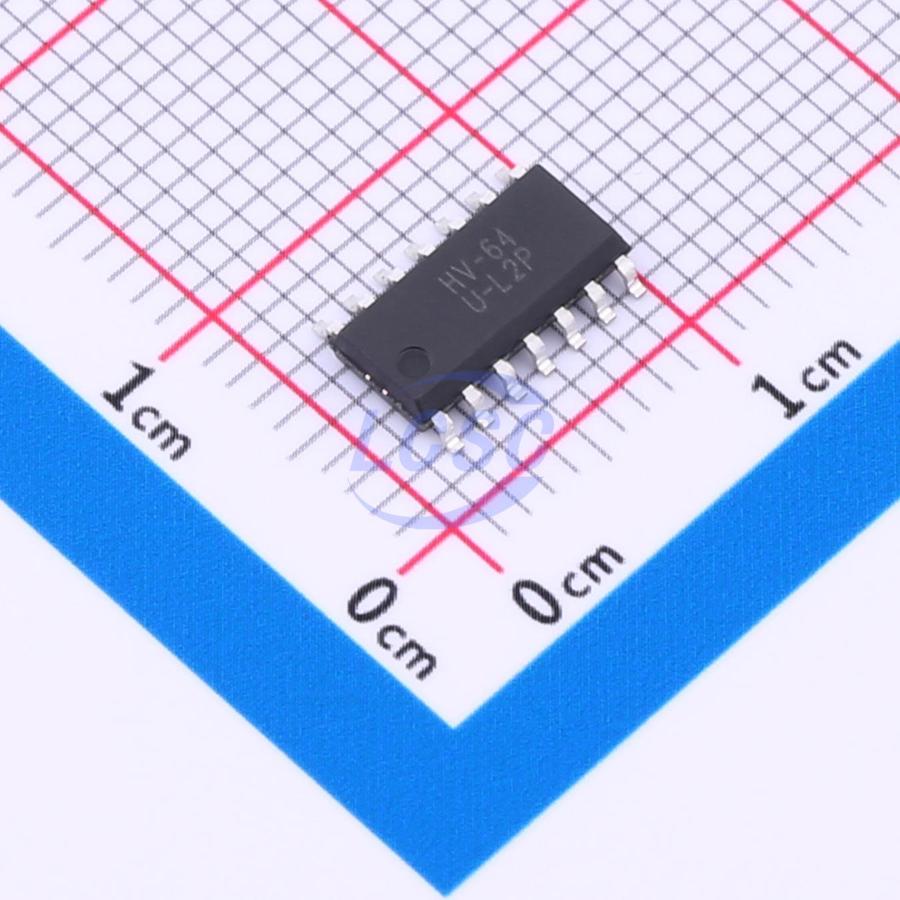

LTA8064XS14/R5

The LTA8061, LTA8062 and LTA8064 (LTA806x) are a family of micro-power, 48 V wide supply voltage, rail-to-rail output, precision operational amplifiers capable of operating on supplies ranging from +4.5 V to +48 V. This new generation of high-voltage CMOS operational amplifiers, in conjunction with the LTA809x, LTA808x and LTA807x, provide a family of bandwidth, noise, and power options to meet the needs of a wide variety of applications. The LTA806x devices offer outstanding dc precision and ac performance, including low offset (±75 μV typically), low offset drift (±1.5 μV/°C typically), 1.1 MHz bandwidth, and 22 nV/√Hz input voltage noise density at 1 kHz. Unique features such as differential input-voltage range to the negative supply rail, high output current (±45 mA), high capacitive load drive of up to 1 nF, and high slew rate (0.8 V/μs) make the LTA806x high-performance operational amplifiers for high-voltage industrial applications. The robust design of the LTA806x family provides ease-of-use to the circuit designer: integrated RF/EMI rejection filter, no phase reversal in overdrive conditions, and high electro-static discharge (ESD) protection. The LTA806x are optimized for operation at voltages from +4.5 V (±2.25 V) to +48 V (±24 V) over the extended temperature range of -40 °C to +125 °C.

Applications

• Tracking Amplifier in Power Modules
• Power Delivery: UPS, Server, and Merchant Network Power
• High-Side and Low-Side Current Sensing
• Transducer Amplifiers
• Battery-Powered Instruments
• Test and Measurement Equipment
• Multiplexed Data-Acquisition Systems
• Programmable Logic Controllers

Key features

• Wide Supply: ±2.25 V to ±24 V, 4.5 V to 48 V
• Low Offset Voltage: ±75 μV Typically
• Low Offset Voltage Drift: ±1.5 μV/°C
• High Common-Mode Rejection: 115 dB
• Gain Bandwidth: 1.1 MHz
• Slew Rate: 0.8 V/μs
• Low Noise: 22 nV/√Hz at 1 kHz
• Low Quiescent Current: 140 μA per amplifier
• Low Bias Current: ±10 pA
• Rail-to-Rail Output
