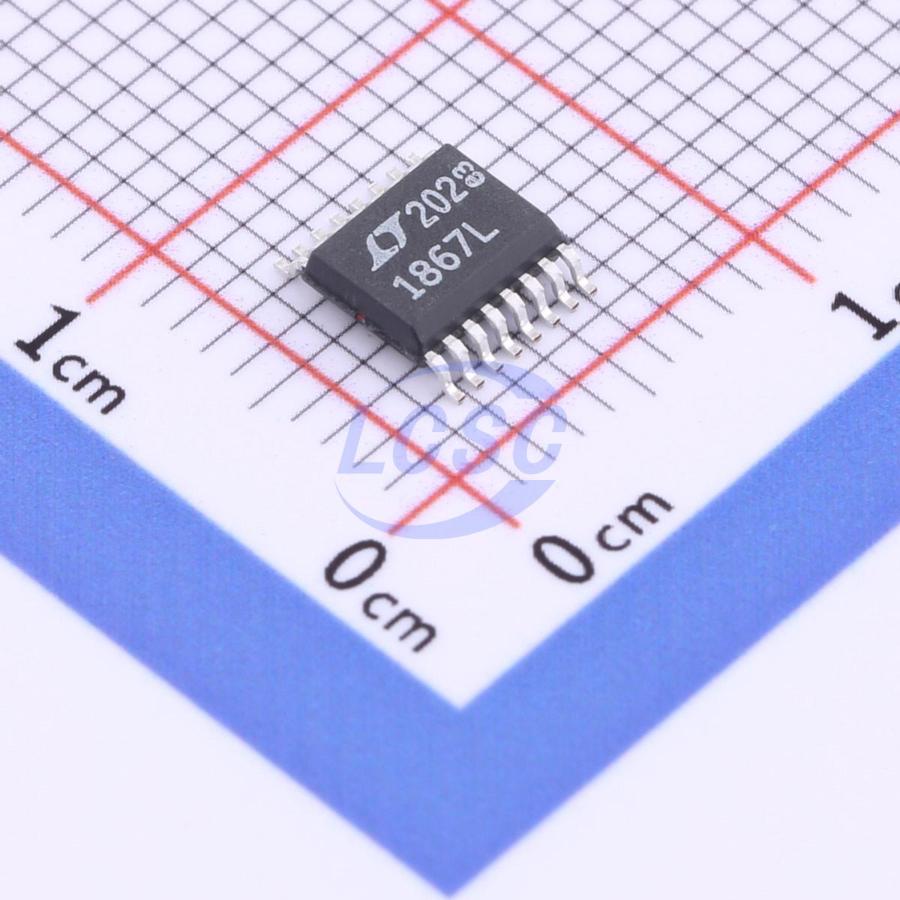

LTC1867LIGN#TRPBF

The LTC1863L/LTC1867L are pin compatible, 8-channel 12-/16-bit A/D converters with serial I/O and an internal reference. The 8-channel input multiplexer can be configured for either single-ended or differential inputs and unipolar or bipolar conversions (or combinations thereof). The ADCs convert 0V to 2.5V unipolar inputs or ±1.25V bipolar inputs. The ADCs typically draw only 750μA from a single 2.7V supply. The automatic nap and sleep modes benefit power sensitive applications. The LTC1867L’s DC performance is outstanding with a ±3LSB INL specification and 16-bit no missing codes over temperature. Housed in a compact, narrow 16-pin SSOP package, the LTC1863L/LTC1867L can be used in space-sensitive as well as low power applications.

Applications

• Industrial Process Control
• High Speed Data Acquisition
• Battery Operated Systems
• Multiplexed Data Acquisition Systems
• Imaging Systems

Key features

• Sample Rate: 175ksps
• 16-Bit No Missing Codes and ±3LSB Max INL
• 8-Channel Multiplexer with: Single Ended or Differential Inputs and Unipolar or Bipolar Conversion Modes
• SPI/MICROWIRE Serial I/O
• 2.7V Guaranteed Supply Voltage
• Pin Compatible with LTC1863/LTC1867
• True Differential Inputs
• On-Chip or External Reference
• Low Power: 750μA at 175ksps, 300μA at 50ksps
• Sleep Mode
• Automatic Nap Mode Between Conversions
• 16-Pin Narrow SSOP Package
