ADI

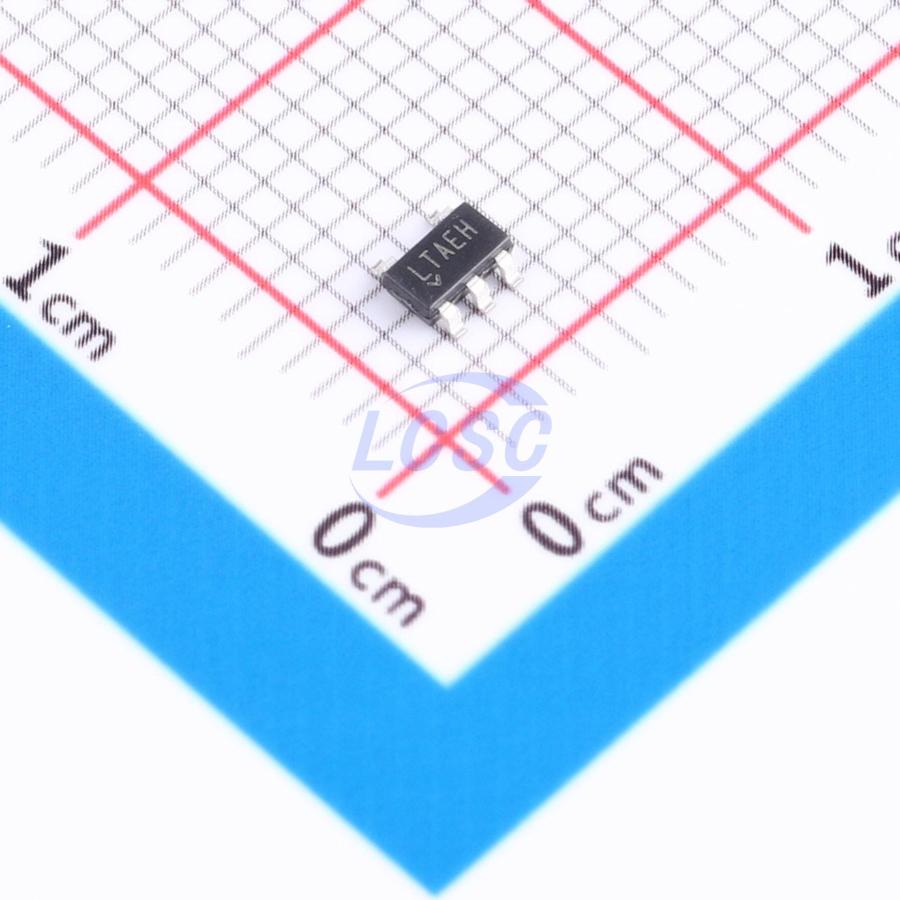

LTC2050HVCS5#TRPBF

1 500nV 2V/us 130dB 125pA 800uA 3MHz Rail-to-rail output TSOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

TSOT-23-5ROHS3 CompliantActive

Zero-Drift Operational Amplifiers in SOT-23

Manufacturer: ADI
Manufacturer part #: LTC2050HVCS5#TRPBF
Store part #: C679138
Package / case: TSOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,487 in stock

#C679138

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹833.62	₹833.62
10+	₹724.55	₹7,245.50
30+	₹659.59	₹19,787.70
100+	₹593.99	₹59,399.00
500+	₹563.80	₹2,81,900.00
1,000+	₹550.10	₹5,50,100.00

Quantity (min 1)

1 × ₹833.62

₹833.62

excl. GST

₹983.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LTC2050HVCS5#TRPBF

₹833.62 for 1 + GST

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 500nV
Slew Rate: 2V/us
Input Offset Current(Ios): 250pA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 130dB
Ib - Input Bias Current: 125pA
Input Offset Voltage Drift(Vos TC): 30nV/℃
Quiescent Current: 800uA
Gain Bandwidth Product: 3MHz
Features: Enable/shutdown function;Zero drift / auto-zero
Dual Supply: -5.5V~5.5V
Rail to Rail: Rail-to-rail output

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.108 g

Overview

The LTC2050 and LTC2050HV are zero-drift operational amplifiers available in the 5- or 6-lead SOT-23 and SO-8 packages. The LTC2050 operates from a single 2.7V to 6V supply. The LTC2050HV operates on supplies from 2.7V to ±5.5V. The current consumption is 800μA and the versions in the 6-lead SOT-23 and SO-8 packages offer power shutdown (active low). The LTC2050HVMP offer operating range from 4.5V to ±5.5V and operating temperature range of -55°C to 150°C. The LTC2050, despite its miniature size, features uncompromising DC performance. The typical input offset voltage and offset drift are 0.5μV and 10nV/°C. The almost zero DC offset and drift are supported with a power supply rejection ratio (PSRR) and common mode rejection ratio (CMRR) of more than 130dB. The input common mode voltage ranges from the negative supply up to typically 1V from the positive supply. The LTC2050 also has an enhanced output stage capable of driving loads as low as 2kΩ to both supply rails. The open-loop gain is typically 140dB. The LTC2050 also features a 1.5μVP-P DC to 10Hz noise and a 3MHz gain bandwidth product.
