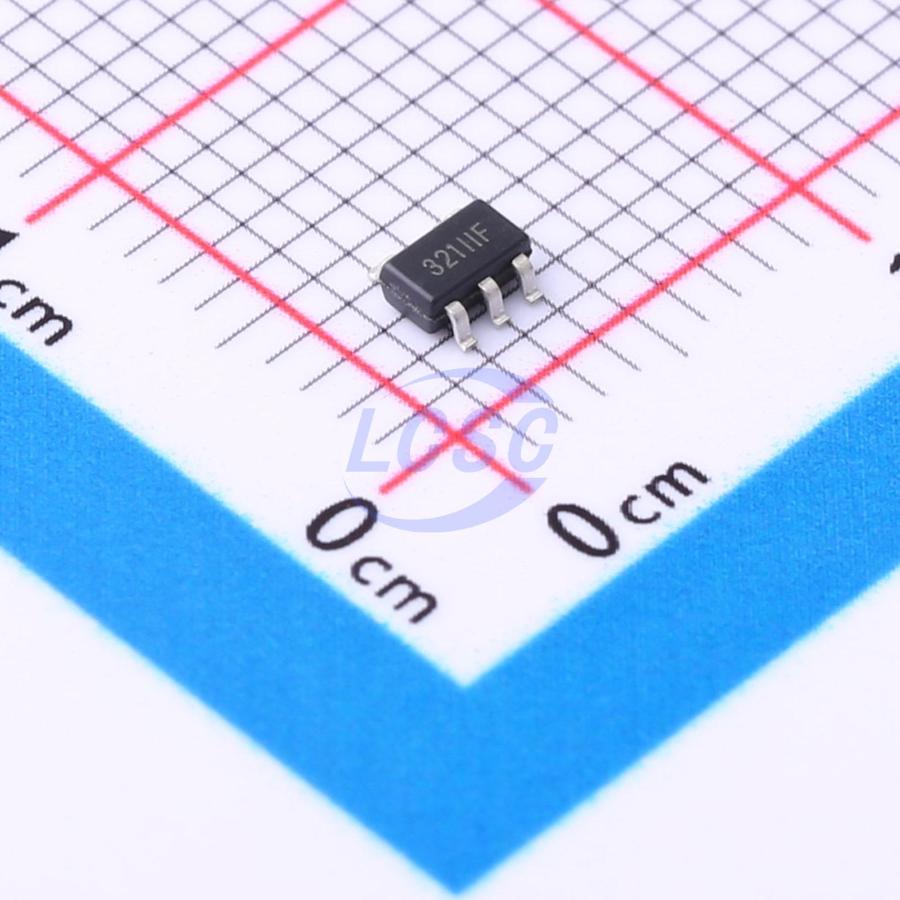

LTC321AXT5/R6

45mA 1 500uV 1V/us 96dB 150pA 85uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5L Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5LROHS CompliantActive

General-Purpose, Micro-Power 1MHz, RRIO, Precision Amplifiers

Manufacturer: Linearin
Manufacturer part #: LTC321AXT5/R6
Store part #: C2888106
Package / case: SOT-23-5L
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13,915 in stock

#C2888106

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
5+	₹41.20	₹206.00
50+	₹32.77	₹1,638.50
150+	₹29.16	₹4,374.00
500+	₹24.66	₹12,330.00
3,000+	₹20.44	₹61,320.00
6,000+	₹19.24	₹1,15,440.00

Quantity (min 5, multiples of 5)

5 × ₹41.20

₹206.00

excl. GST

₹243.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LTC321AXT5/R6

₹206.00 for 5 + GST

Specifications

Output Current: 45mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 1V/us
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 96dB
Ib - Input Bias Current: 150pA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 85uA
Gain Bandwidth Product: 1MHz
Features: EMI filtering/RF suppression;Reverse-phase input protection;ESD protection;Built-in compensation
Input Voltage Noise Density: 29nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.046 g

Overview

The LTC321A and LTC358A family of single- and dual- channel amplifiers provides input offset voltage correction for positive low offset (maximum 1.0 mV) and drift (1 μV/°C) through the use of proprietary techniques. Featuring rail-to-rail input and output swings, and low quiescent current (typical 85 μA) combined with a wide bandwidth of 1 MHz and very low noise (29 nV/√Hz at 1 kHz) makes this family very attractive for a variety of battery-powered applications such as handsets, tablets, notebooks, and portable medical devices. The low input bias current supports these amplifiers to be used in applications with mega-ohm source impedances. The robust design of the LTC321A and LTC358A amplifiers provides ease-of-use to the circuit designer: unity-gain stability with capacitive loads of up to 500 pF, integrated RF/EMI rejection filter, no phase reversal in overdrive conditions, and high electro-static discharge (ESD) protection (5-kV HBM). The LTC321A and LTC358A amplifiers are optimized for operation at voltages as low as +1.8 V (±0.9V) and up to +5.5 V (±2.75V) at the temperature range of 0 °C to 70 °C, and operation at voltages from +2.0 V (±1.0V) to +5.5 V (±2.75V) over the extended temperature range of -40 °C to +125 °C. The LTC321A (single) is available in SOT23-5L package. The LTC358A (dual) is offered in SOIC-8L and MSOP-8L packages.
