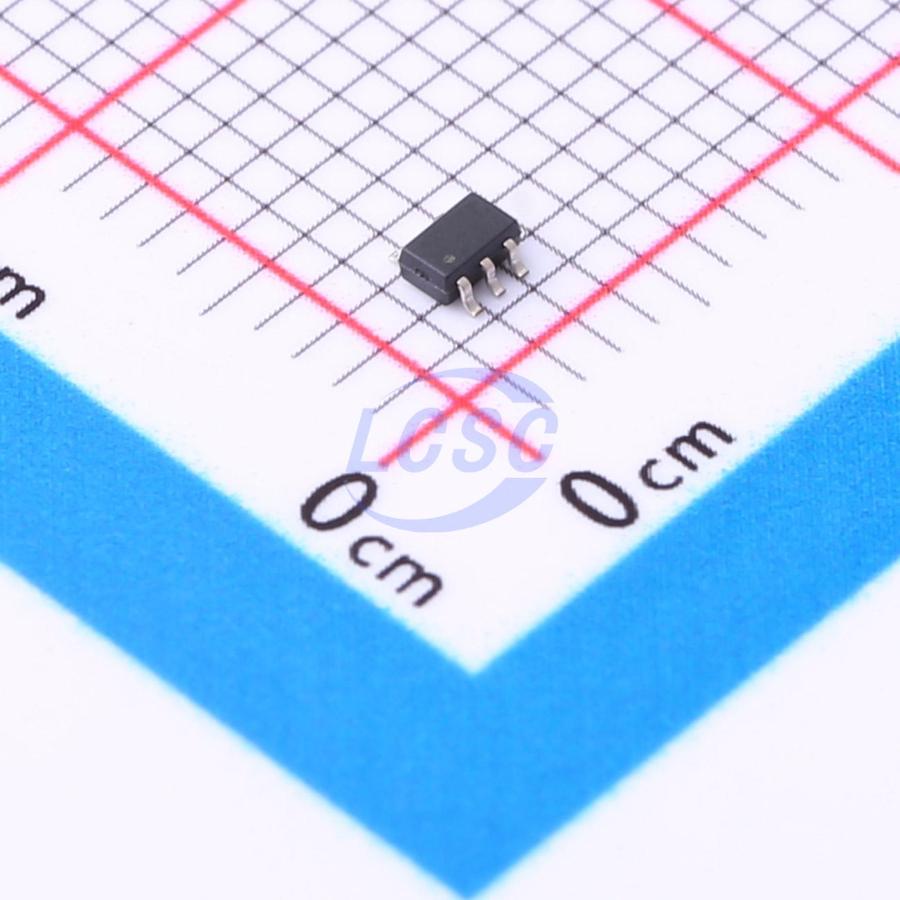

LTC321XC5/R6

40mA 1 3mV 1V/us 50pA 83dB 120uA 1.2MHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5L Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5LROHS CompliantActive

General Purpose 1.2MHz, RRI0, 1.8V CM0S Amplifiers

Manufacturer: Linearin
Manufacturer part #: LTC321XC5/R6
Store part #: C2888107
Package / case: SC-70-5L
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,959 in stock

#C2888107

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹12.05	₹12.05
10+	₹10.65	₹106.50
30+	₹9.95	₹298.50
100+	₹9.43	₹943.00
500+	₹9.01	₹4,505.00
1,000+	₹8.80	₹8,800.00

Quantity (min 1)

1 × ₹12.05

₹12.05

excl. GST

₹14.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LTC321XC5/R6

₹12.05 for 1 + GST

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 3mV
Slew Rate: 1V/us
Input Offset Current(Ios): 50pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 50pA
Common Mode Rejection Ratio(CMRR): 83dB
Input Offset Voltage Drift(Vos TC): 3.5uV/℃
Quiescent Current: 120uA
Gain Bandwidth Product: 1.2MHz
Features: EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 30nV/√Hz@1kHz
Dual Supply: -900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.016 g

Overview

The LTC321/LTC358/LTC324 family of single-, dual-, and quad- channel operational amplifiers is specifically designed for general-purpose cost-sensitive systems and applications. Featuring rail-to-rail input and output (RRIO) swings, and low quiescent current (typical 85 μA) combined with a wide bandwidth (1.2 MHz) and low noise (30 nV/√Hz at 1 kHz) makes this family very attractive for a variety of battery-powered applications that require a good balance between cost and performance, such as audio outputs, consumer electronics, smoke detectors, portable medical devices and white goods. The low input bias current supports these amplifiers to be used in applications with mega-ohm source impedances. The robust design of the LTC321/LTC358/LTC324 family provides ease-of-use to the circuit designer: unity-gain stability with capacitive loads of up to 500 pF, integrated RF/EMI rejection filter, no phase reversal in overdrive conditions, and high electro-static discharge (ESD) protection (5-kV HBM). The LTC321/LTC358/LTC324 amplifiers are optimized for operation at voltages as low as +1.8 V (±0.9 V) and up to +5.5 V (±2.75 V), and over the extended temperature range of -40 °C to +125 °C. The LTC321 (single) is available in both SOT23-5L and SC70-5L packages. The LTC358 (dual) is offered in SOIC-8L, DFN-8L and MSOP-8L packages. The quad-channel LTC324 is offered in SOIC-14L, TSSOP-14L and QFN-16L packages.

Applications

Battery-Powered Instruments: Consumer, Industrial, Medical, Notebooks
Audio Outputs
Wireless Sensors: Home Security, Remote Sensing, Wireless Metering
Sensor Signal Conditioning: Sensor Interfaces, Loop-Powered, Active Filters

Key features

General Purpose Amplifiers for Cost-Sensitive Systems
1.2 MHz GBW for Unity-Gain Stable
Micro-Power: 85 μA Supply Current Per Amplifier
Low Input Offset Voltage: ±3.0 mV Maximum
Low Noise: 30 nV/√Hz at 1 kHz
Single 1.8 V to 5.5 V Supply Voltage Range
Rail-to-Rail Input and Output
Internal RF/EMI Filter
Extended Temperature Range: -40 °C to +125 °C
