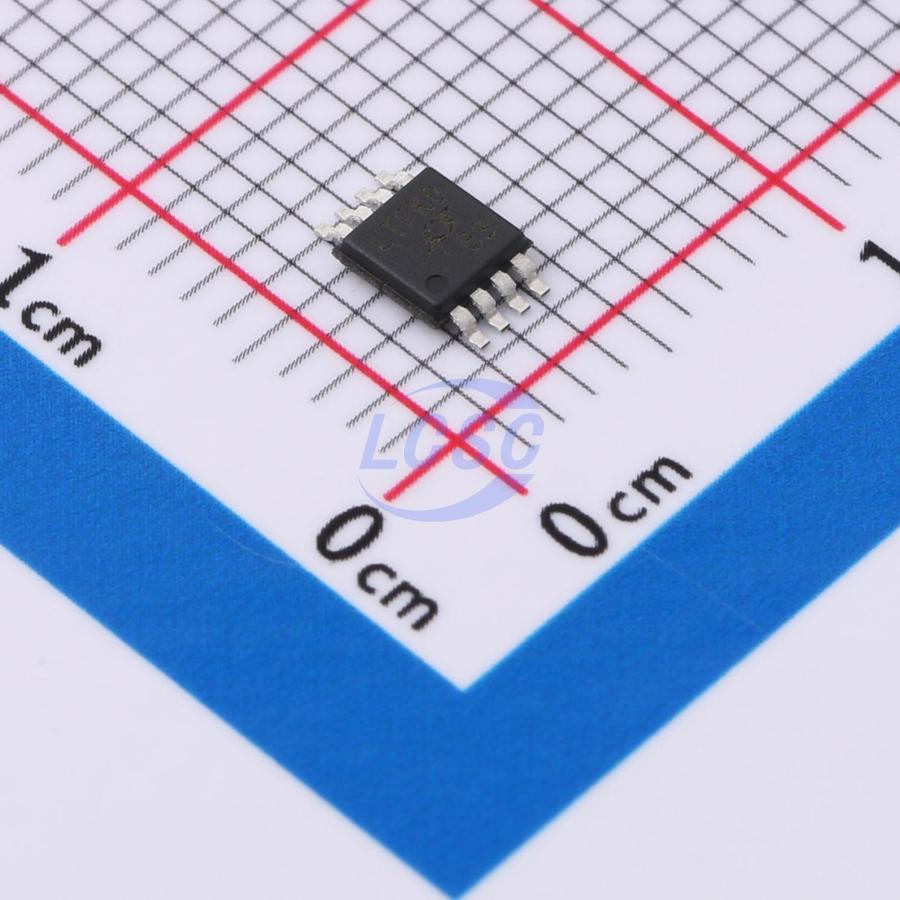

LTC4359HMS8#TRPBF
MSOP-8 OR Controllers, Ideal Diodes RoHS
MSOP-8ROHS3 CompliantActive
Ideal diode controller with reverse input protection
- Manufacturer
- ADI
- Manufacturer part #
- LTC4359HMS8#TRPBF
- Store part #
- C688239
- Package / case
- MSOP-8
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,410 in stock
#C688239
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,025.38 | ₹1,025.38 |
| 10+ | ₹900.30 | ₹9,003.00 |
| 30+ | ₹785.86 | ₹23,575.80 |
| 100+ | ₹722.03 | ₹72,203.00 |
1 × ₹1,025.38
₹1,025.38
excl. GST
₹1,209.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LTC4359HMS8#TRPBF
₹1,025.38 for 1 + GST
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
A positive high voltage ideal diode controller that drives an external N-channel MOSFET to replace a Schottky diode. It controls the forward-voltage drop across the MOSFET to ensure smooth current delivery without oscillation even at light loads. If a power source fails or is shorted, a fast turn-off minimizes reverse current transients. A shutdown mode is available to reduce the quiescent current to 9μA for load switch and 14µA for ideal diode applications. When used in high current diode applications, it reduces power consumption, heat dissipation, voltage loss and PC board area. With its wide operating voltage range, the ability to withstand reverse input voltage, and high temperature rating, it satisfies the demanding requirements of both automotive and telecom applications. It also easily ORs power sources in systems with redundant supplies.
Applications
- Automotive Battery Protection
- Redundant Power Supplies
- Supply Holdup
- Telecom Infrastructure
- Computer Systems/Servers
- Solar Systems
Key features
- Reduces Power Dissipation by Replacing a Power Schottky Diode
- Wide Operating Voltage Range: 4V to 80V
- Reverse Input Protection to –40V
- Low 9µA Shutdown Current
- Low 150µA Operating Current
- Smooth Switchover without Oscillation
- Controls Single or Back-to-Back N-Channel MOSFETs
- Available in 6-Pin (2mm×3mm) DFN, 8-Lead MSOP and 8-Lead SO Packages
- AEC-Q100 Qualified for Automotive Applications
