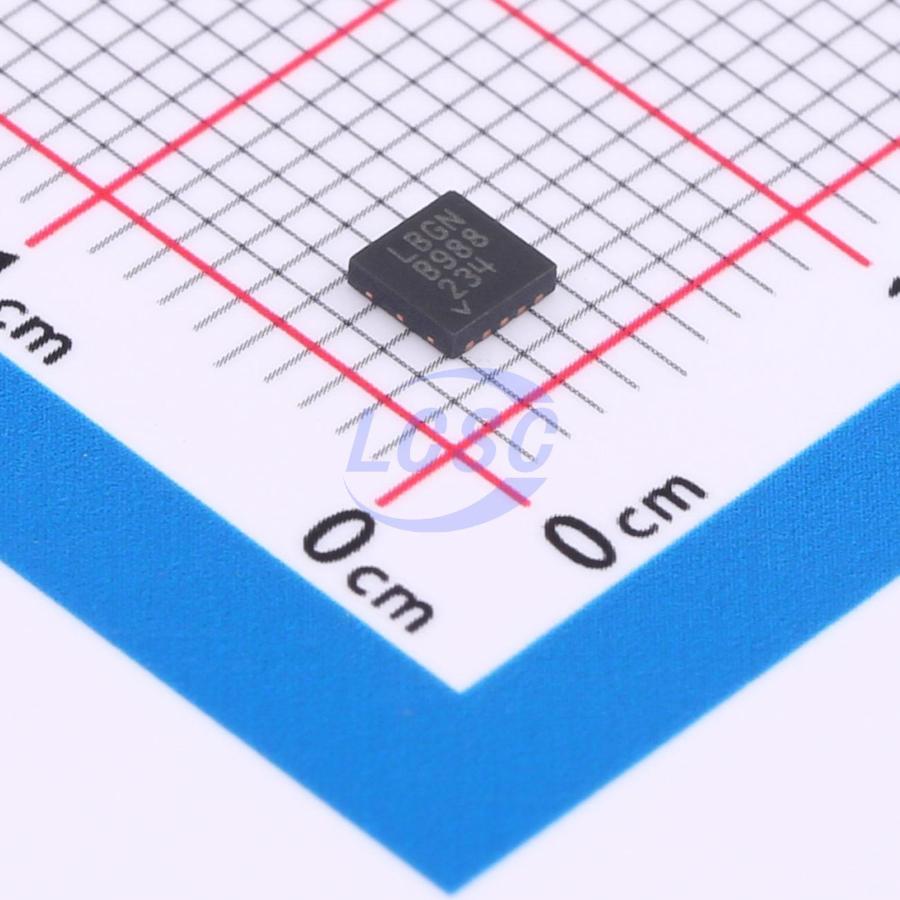

LTC4413EDD#TRPBF
DFN-10-EP(3x3) OR Controllers, Ideal Diodes RoHS
DFN-10-EP(3x3)ROHS3 CompliantActive
Dual 2.6A, 2.5V to 5.5V Ideal Diodes in 3mm × 3mm DFN
- Manufacturer
- ADI
- Manufacturer part #
- LTC4413EDD#TRPBF
- Store part #
- C580898
- Package / case
- DFN-10-EP(3x3)
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,454 in stock
#C580898
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹890.71 | ₹890.71 |
| 10+ | ₹765.33 | ₹7,653.30 |
| 30+ | ₹688.83 | ₹20,664.90 |
| 100+ | ₹624.95 | ₹62,495.00 |
1 × ₹890.71
₹890.71
excl. GST
₹1,051.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LTC4413EDD#TRPBF
₹890.71 for 1 + GST
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
2-Channel Ideal Diode ORing or Load Sharing Low Loss Replacement for ORing Diodes Low Forward On-Resistance (100mΩ Max at 3.6V) Low Reverse Leakage Current (1µA Max) Small Regulated Forward Voltage (28mV Typ) 2.5V to 5.5V Operating Range 2.6A Maximum Forward Current Internal Current Limit and Thermal Protection Slow Turn-On/Off to Protect Against Inductive Source Impedance-Induced Voltage Spiking Ultralow Quiescent Current Consumption, Low Power Alternative to the LTC4413-1 Status Output to Indicate if Selected Channel is Conducting Programmable Channel On/Off Low Profile (0.75mm) 10-Lead 3mm × 3mm DFN Package
Applications
- Battery and Wall Adapter Diode ORing in Handheld Products
- Backup Battery Diode ORing
- Power Switching
- USB Peripherals
- Uninterruptable Supplies
Key features
- 2-Channel Ideal Diode ORing or Load Sharing
- Low Loss Replacement for ORing Diodes
- Low Forward On-Resistance (100mΩ Max at 3.6V)
- Low Reverse Leakage Current (1µA Max)
- Small Regulated Forward Voltage (28mV Typ)
- 2.5V to 5.5V Operating Range
- 2.6A Maximum Forward Current
- Internal Current Limit and Thermal Protection
- Slow Turn-On/Off to Protect Against Inductive Source Impedance-Induced Voltage Spiking
- Ultralow Quiescent Current Consumption, Low Power Alternative to the LTC4413-1
- Status Output to Indicate if Selected Channel is Conducting
- Programmable Channel On/Off
- Low Profile (0.75mm) 10-Lead 3mm × 3mm DFN Package
