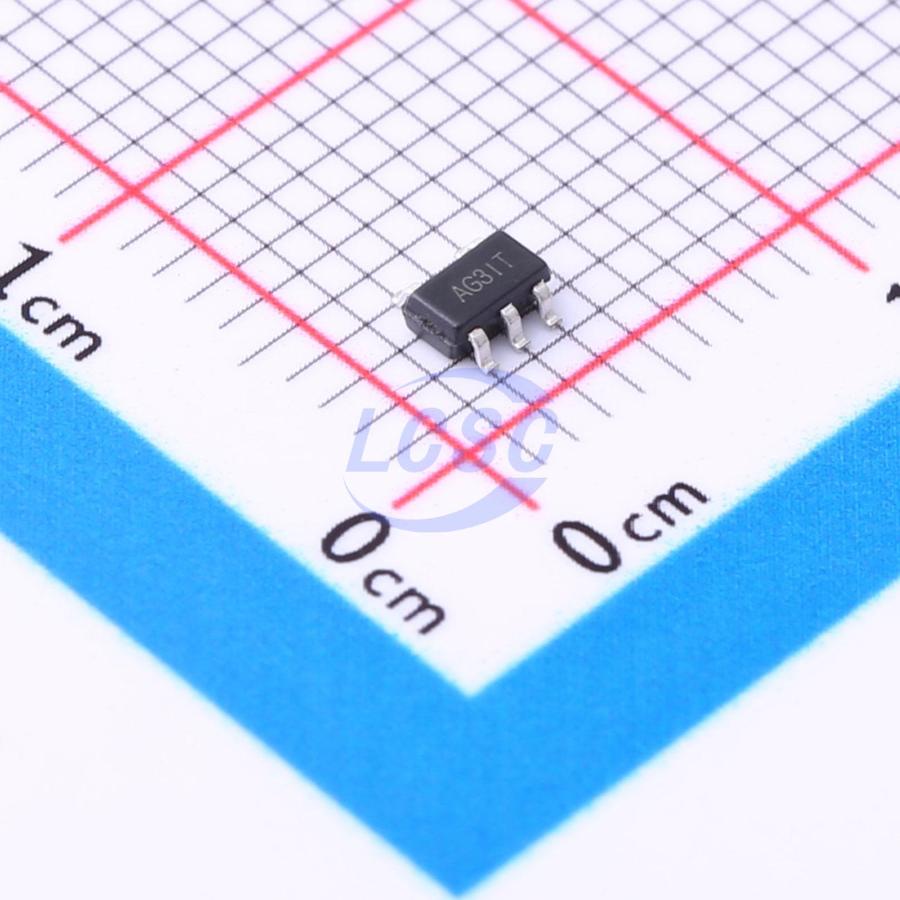

LTC6001UXT5/R6

The LTC6001 of single-channel operational amplifiers is specifically designed for general-purpose cost-sensitive systems and applications. Featuring rail-to-rail input and output (RRIO) swings, and low quiescent current (typical 75 μA) combined with a wide bandwidth (1.5 MHz) and very low noise (25 nV/√Hz at 1 kHz) makes this family very attractive for a variety of battery-powered applications that require a good balance between cost and performance, such as audio outputs, consumer electronics, smoke detectors, portable medical devices and white goods. The low input bias current supports these amplifiers to be used in applications with mega-ohm source impedances. The robust design of the LTC6001 amplifiers provides ease-of-use to the circuit designer: unity-gain stability with capacitive loads of up to 500 pF, integrated RF/EMI rejection filter, no phase reversal in overdrive conditions, and high electro-static discharge (ESD) protection (5·1 <W HBM). The LTC6001 amplifiers are optimized for operation at voltages as low as +1.8 V (±0.9 V) and up to +5.5 V (±2.75 V) at the temperature range of 0 °C to 70 °C, and operation at voltages from +2.0 V (±1.0 V) to +5.5 V (±2.75 V) over the extended temperature range of -40 °C to +125 °C. The LTC6001 single amplifier is available in both SOT23-5 and SC70-5 packages.

Applications

• Battery-Powered Instruments: Consumer, Industrial, Medical, Notebooks
• Audio Outputs
• Wireless Sensors: Home Security, Remote Sensing, Wireless Metering
• Sensor Signal Conditioning: Sensor Interfaces, Loop-Powered, Active Filters

Key features

• Precision Amplifiers for Cost-Sensitive Systems
• Low Noise: 25 nV/√Hz at 1 kHz
• Low Input Offset Voltage: 0.5 mV
• 1.5 MHz GBW for Unity-Gain Stable
• Micro-Power: 75 μA Supply Current Per Amplifier
• Single 1.8 V to 5.5 V Supply Voltage Range at 0 °C to 70 °C
• Rail-to-Rail Input and Output
• Internal RF/EMI Filter
• Extended Temperature Range: -40 °C to +125 °C
