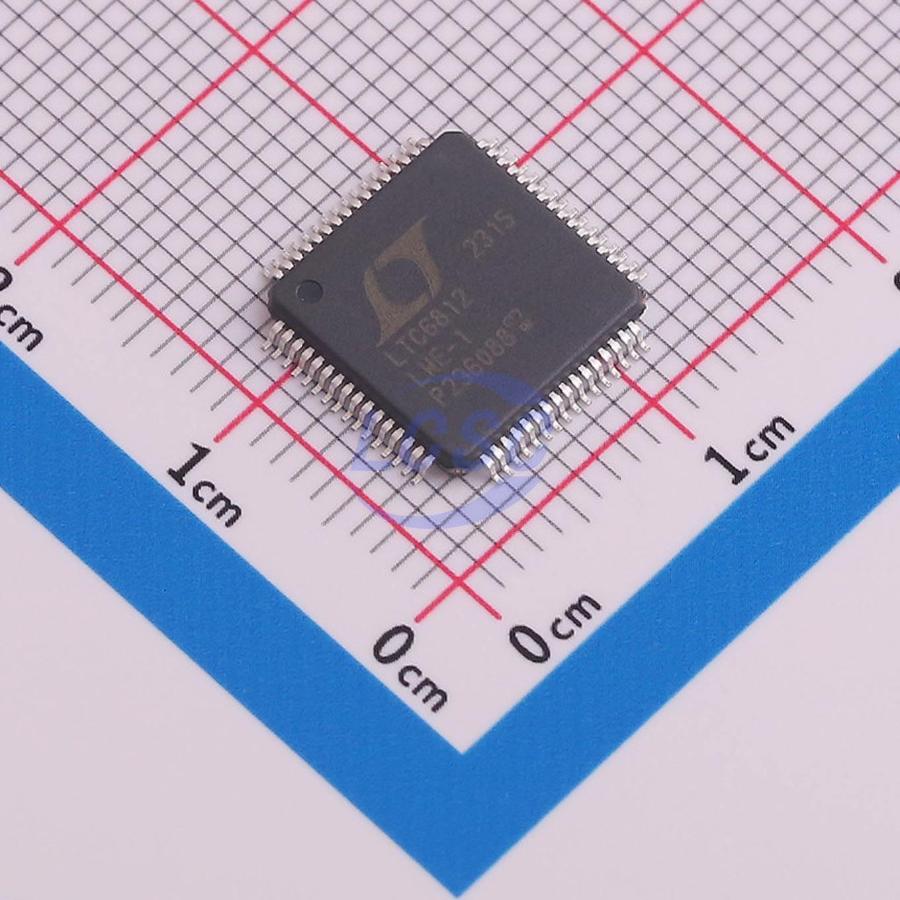

LTC6812HLWE-1#3ZZTRPBF
200mA LQFP-64(10x10) Battery Management RoHS
15-Cell Battery Stack Monitor with Daisy Chain Interface
- Manufacturer
- ADI
- Manufacturer part #
- LTC6812HLWE-1#3ZZTRPBF
- Store part #
- C18171243
- Package / case
- LQFP-64(10x10)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,875 in stock
#C18171243
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,391.52 | ₹1,391.52 |
| 10+ | ₹1,203.76 | ₹12,037.60 |
| 30+ | ₹1,089.28 | ₹32,678.40 |
| 100+ | ₹993.45 | ₹99,345.00 |
1 × ₹1,391.52
₹1,391.52
excl. GST
₹1,641.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
LTC6812HLWE-1#3ZZTRPBF
₹1,391.52 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- I2C;SPI
- Quiescent Current
- 6uA
- 0V Battery Charge
- Not supported
- Operating Voltage
- 4.5V~5.5V
- Features
- Cell balancing
- The Chip Type
- Monitoring IC
- Balance Current
- 200mA
- Charge Current - Max
- 200mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.515 g
Overview
The LTC6812-1 is a multicell battery stack monitor that measures up to 15 series connected battery cells with a total measurement error of less than 2.2mV. The cell measurement range of 0V to 5V makes the LTC6812-1 suitable for most battery chemistries. All 15 cells can be measured in 245μs and lower data acquisition rates can be selected for high noise reduction. Multiple LTC6812-1 devices can be connected in series, permitting simultaneous cell monitoring of long, high voltage battery strings. Each LTC6812-1 has an isoSPI interface for high speed, RF immune, long distance communications. Multiple devices are connected in a daisy chain with one host processor connection for all devices. This daisy chain can be operated bidirectionally, ensuring communication integrity, even in the event of a fault along the communication path. The LTC6812-1 can be powered directly from the battery stack or from an isolated supply. The LTC6812-1 includes passive balancing for each cell, with individual PwM duty cycle control for each cell. Other features include an onboard 5V regulator, nine general purpose I/O lines and a sleep mode, where current consumption is reduced to 6μA.
Applications
- Electric and Hybrid Electric Vehicles
- Backup Battery Systems
- Grid Energy Storage
- High Power Portable Equipment
Key features
- Measures Up to 15 Battery Cells in Series
- 2.2mV Maximum Total Measurement Error
- Stackable Architecture for High Voltage Systems
- Built-In isoSPI™ Interface 1 Mb Isolated Serial Communications
- Uses a Single Twisted Pair, Up to 100 Meters
- Low EMI Susceptibility and Emissions
- Bidirectional for Broken Wire Protection
- 245us to Measure All Cells in a System
- Synchronized Voltage and Current Measurement
- 16-Bit Delta-Sigma ADC with Programmable Noise Filter
- Engineered for ISO 26262-Compliant Systems
- Passive Cell Balancing Up to 200mA (Max) with Programmable Pulse-Width Modulation
- 9 General Purpose Digital I/O or Analog Inputs
- Temperature or Other Sensor Inputs
- Configurable as an I2C or SPI Master
- 6uA Sleep Mode Supply Current
- 64-Lead eLQFP Package
- AEC-Q100 Qualified for Automotive Applications
