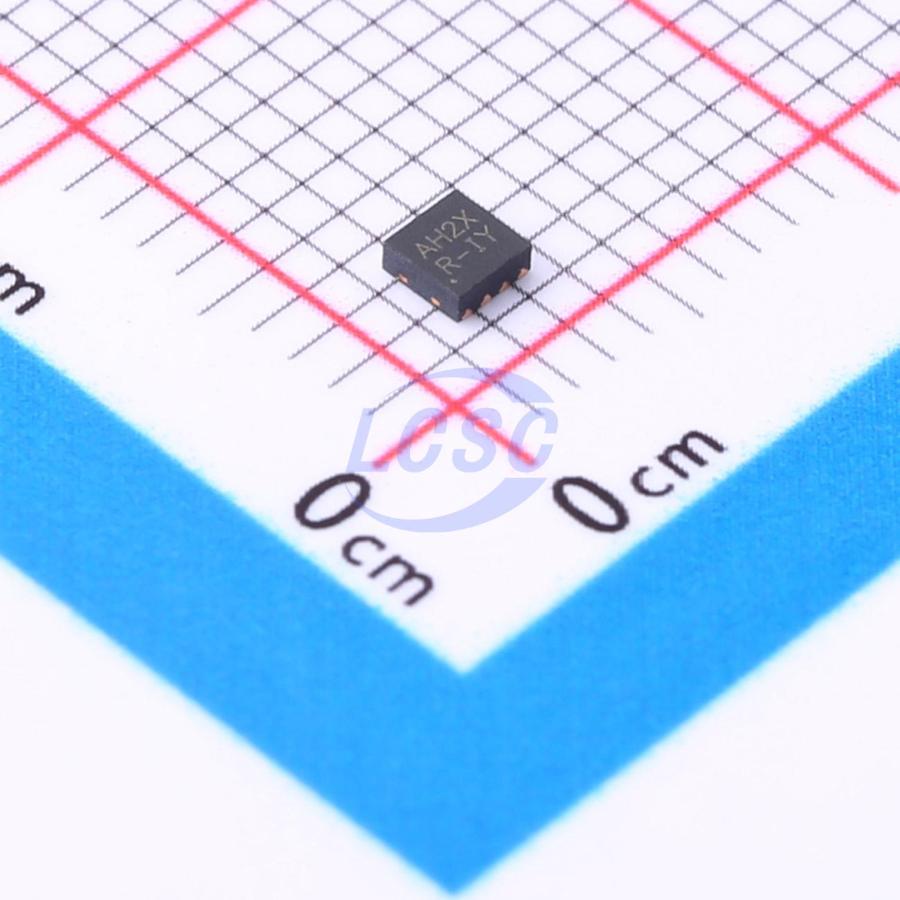

LTC722XF8/R6

70mA 2 3mV 11.5V/us 500pA 84dB 780uA 11MHz Rail-to-Rail Input, Rail-to-Rail Output DFN-8-EP(2x2) Instrumentation, Op Amps, Buffer Amps RoHS

DFN-8-EP(2x2)ROHS CompliantActive

11MHz, Low Power, Low-Noise, RRIO, CMOS Amplifiers

Manufacturer: Linearin
Manufacturer part #: LTC722XF8/R6
Store part #: C2888125
Package / case: DFN-8-EP(2x2)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,226 in stock

#C2888125

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹57.25	₹57.25
10+	₹45.10	₹451.00
30+	₹39.90	₹1,197.00
100+	₹33.39	₹3,339.00
500+	₹30.36	₹15,180.00
1,000+	₹27.11	₹27,110.00

Quantity (min 1)

1 × ₹57.25

₹57.25

excl. GST

₹67.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LTC722XF8/R6

₹57.25 for 1 + GST

Specifications

Output Current: 70mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 11.5V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 500pA
Common Mode Rejection Ratio(CMRR): 84dB
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 780uA
Gain Bandwidth Product: 11MHz
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 8nV/√Hz@1kHz
Dual Supply: 900mV~2.75V;-2.75V~-900mV
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.064 g

Overview

The LTC72x family of single-, dual-, and quad- channel operational amplifiers represents a new generation of general-purpose, low-power op-amps. Featuring railto-rail input and output (RRIO) swings, low quiescent current (typical 780 μA) combined with a wide bandwidth (11 MHz) and very low noise (8 nV/√Hz at 1 kHz) makes this family very attractive for a variety of battery-powered applications that require a good balance between cost and performance, such as audio outputs, motor phase current sensing, photodiode amplification, barcode scanners and white goods. The low input bias current supports these amplifiers to be used in applications with mega-ohm source impedances. The robust design of the LTC72x amplifiers provides ease-of-use to the circuit designer: unity-gain stability with capacitive loads of up to 500 pF, integrated RF/EMI rejection filter, no phase reversal in overdrive conditions, and high electro-static discharge (ESD) protection (5 - kV HBM). The LTC72x amplifiers are optimized for operation at voltages as low as +1.8 V (±0.9 V) and up to +5.5 V (±2.75 V) at the temperature range of 0 °C to 70 °C, and operation at voltages from +2.0 V (±1.0 V) to +5.5 V (±2.75 V) over the extended temperature range of -40 °C to +125 °C.
