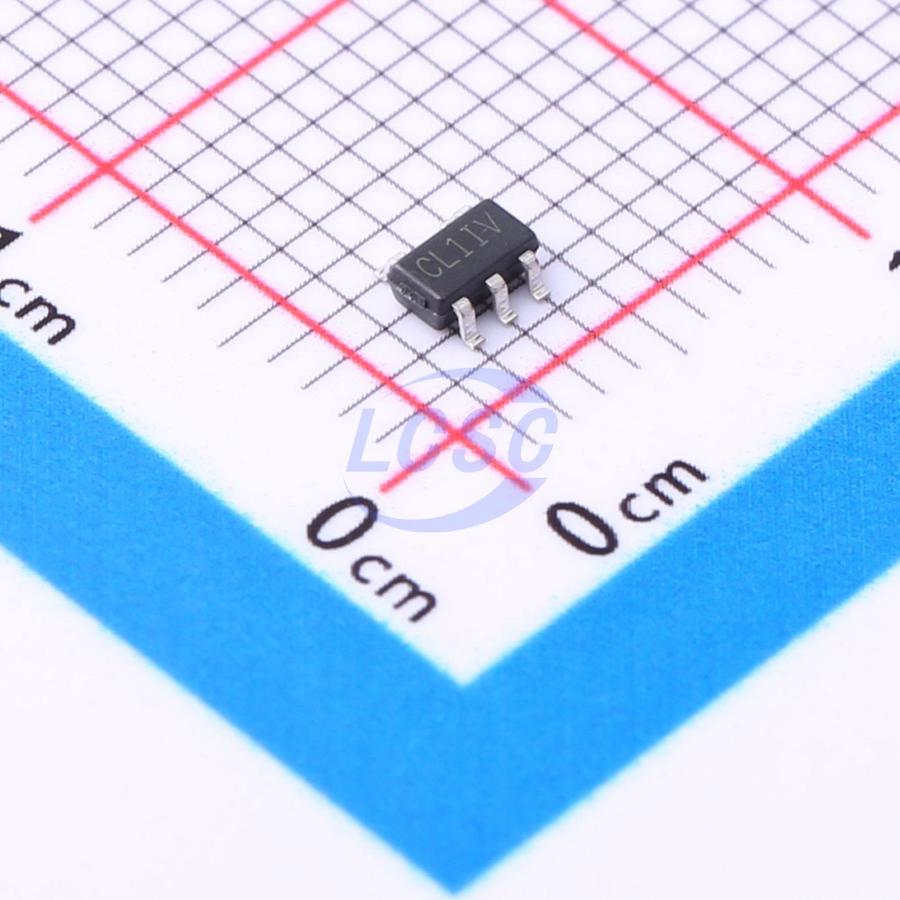

LTC8701YT5/R6
Rail-to-rail input 500uV 5pA 1 SOT-23-5L Linear Comparators RoHS
Ultra-Low Power, 1.7V, RRI, CMOS Input Comparators
- Manufacturer
- Linearin
- Manufacturer part #
- LTC8701YT5/R6
- Store part #
- C2888148
- Package / case
- SOT-23-5L
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,373 in stock
#C2888148
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.30 | ₹55.30 |
| 10+ | ₹43.80 | ₹438.00 |
| 30+ | ₹39.04 | ₹1,171.20 |
| 100+ | ₹32.74 | ₹3,274.00 |
| 500+ | ₹30.15 | ₹15,075.00 |
| 1,000+ | ₹26.90 | ₹26,900.00 |
1 × ₹55.30
₹55.30
excl. GST
₹65.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LTC8701YT5/R6
₹55.30 for 1 + GST
Specifications
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-rail input
- Quiescent Current
- 310nA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 12us
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in hysteresis;Complementary bipolar input stage;ESD protection
- Input Hysteresis Voltage (Vhys)
- 5mV
- Common Mode Rejection Ratio(CMRR)
- 84dB
- Vos - Input Offset Voltage
- 500uV
- Ib - Input Bias Current
- 5pA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Input Offset Current(Ios)
- 10pA
- Single Supply
- 1.7V~5.5V
- Response Time (tr)
- 0.19us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The LTC8701/8702/8703/8704 devices are single-, dual-, and quad- channel comparators with push-pull output that are ideal for power-sensitive, low-voltage applications. Featuring a nano-power (typical 310 nA), fast 12 μs propagation delay, and a wide range of supply voltages from 1.7 V to 5.5 V with rail-to-rail common-mode voltage range makes the LTC8701/8702/8703/8704 an ideal choice for a wide variety of portable electronics applications, such as handsets, tablets, notebooks and portable devices that have extremely power constraints and tight board space. The output of the LTC8701/8702/8703/8704 pulls to within 0.1 V of either supply rail without external pull-up circuitry, making these devices ideal for interface with both CMOS and TTL logics. All input and output pins can tolerate a continuous short-circuit fault condition to either rail. Internal hysteresis ensures clean output switching, even with slow-moving input signals. The LTC8701/LTC8703 (single) is available in both SOT23-5L and SC70-5L packages. The LTC8702 (dual) is offered in SOIC-8L, MSOP-8L and DFN-8L packages. The quad-channel LTC8704 is offered in both SOIC-14L and TSSOP-14L packages. All devices are rated over -40 °C to +85 °C industrial temperature range.
Applications
- Handsets, Tablets and Notebooks
- Wearables and Consumer Accessories
- Portable Medical Instruments
- Alarms and Monitoring Circuits
- Level Detectors
- IR Receivers
- Multi-vibrators
Key features
- Nanopower Operating Current (310 nA) Preserves Battery Power
- Propagation Delay: 12 μs (100-mV Overdrive)
- Rail-to-Rail Input
- Push-Pull Output Current Drive: 30 mA Typically at 5V Supply
- Internal Hysteresis for Clean Switching
- Internal RF/EMI Filter
- Single 1.7 V to 5.5 V Supply Voltage Range
- Can be Powered From the Same 1.8V/2.5V/3.3V/5V System Rails
- Operating Temperature Range: -40 °C to +85 °C
