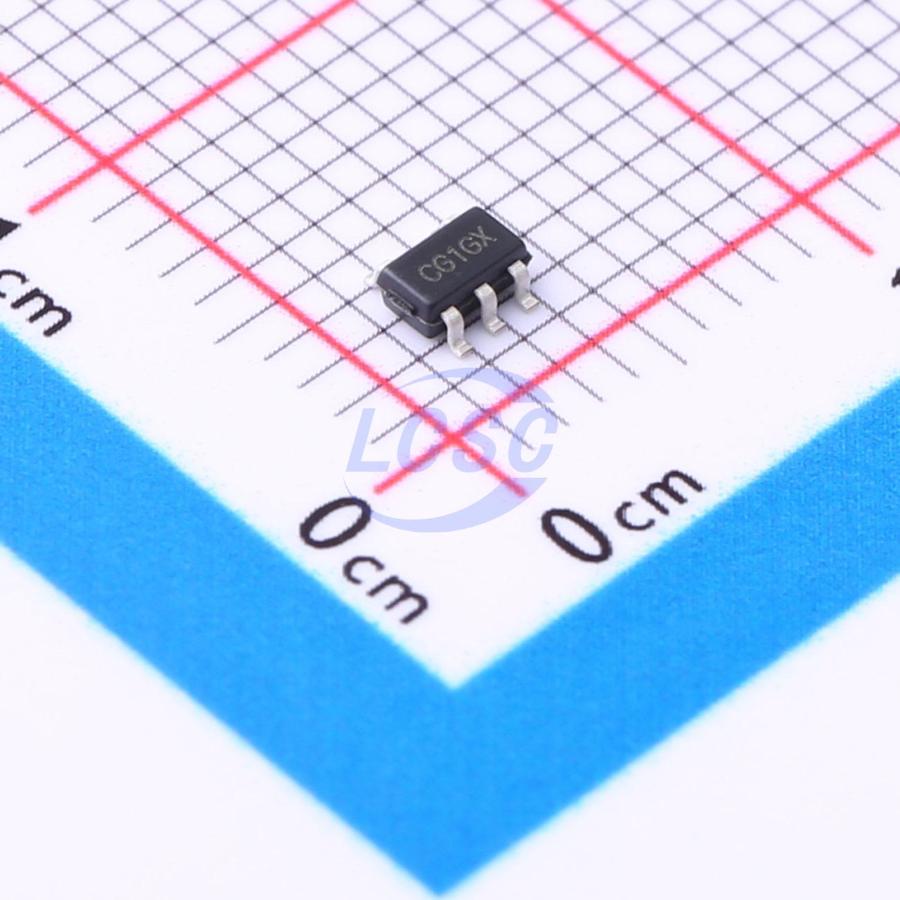

LTC8721YT5/R6

The LTC8721/LTC8722/LTC8723 are tiny, single- and dual- channel comparators with push-pull output that offer the ultimate combination of high speed (66 ns propagation delay) and very low power consumption (22μA), available in extremely small packages with features such as rail-to-rail inputs, low offset voltage (0.8 mV), large output drive current, and a wide range of supply voltages from 1.7 V to 5.5 V. The devices are very easy to implement in a wide variety of applications where require critical response time, power-sensitive, low-voltage, and/or tight board space. The output of the LTC8721/LTC8722/LTC8723 pulls to within 0.1 V of either supply rail without external pull-up circuitry, making these devices ideal for interface with both CMOS and TTL logics. All input and output pins can tolerate a continuous short-circuit fault condition to either rail. Internal hysteresis ensures clean output switching, even with slow-moving input signals. The LTC8721/LTC8723 (single) is available in both SOT23-5L and SC70-5L packages. The LTC8722 (dual) is offered in DFN-8L, SOIC-8L and MSOP-8L packages. All devices are rated over -40 °C to +85 °C industrial temperature range.

Applications

• Consumer Accessories
• Handsets, Tablets and Notebooks Portable and Battery-Powered Devices
• Threshold Detectors and Discriminators
• Alarms and Monitoring Circuits
• Zero-Crossing Detectors
• Window Comparators
• Level Translators
• Line Receivers
• IR Receivers

Key features

• Micro-power Operating Current (22μA) Preserves Battery Power
• Fast 66 ns Propagation Delay (100-mV Overdrive)
• Single 1.7 V to 5.5 V Supply Voltage Range - Can be Powered From the Same 1.8V/2.5V/3.3V/5V System Rails
• Rail-to-Rail Input
• Push-Pull Output Current Drive: 30 mA Typically at 5V Supply
• Internal Hysteresis for Clean Switching
• Internal RF/EMI Filter Operating Temperature Range: -40 °C to +85 °C
