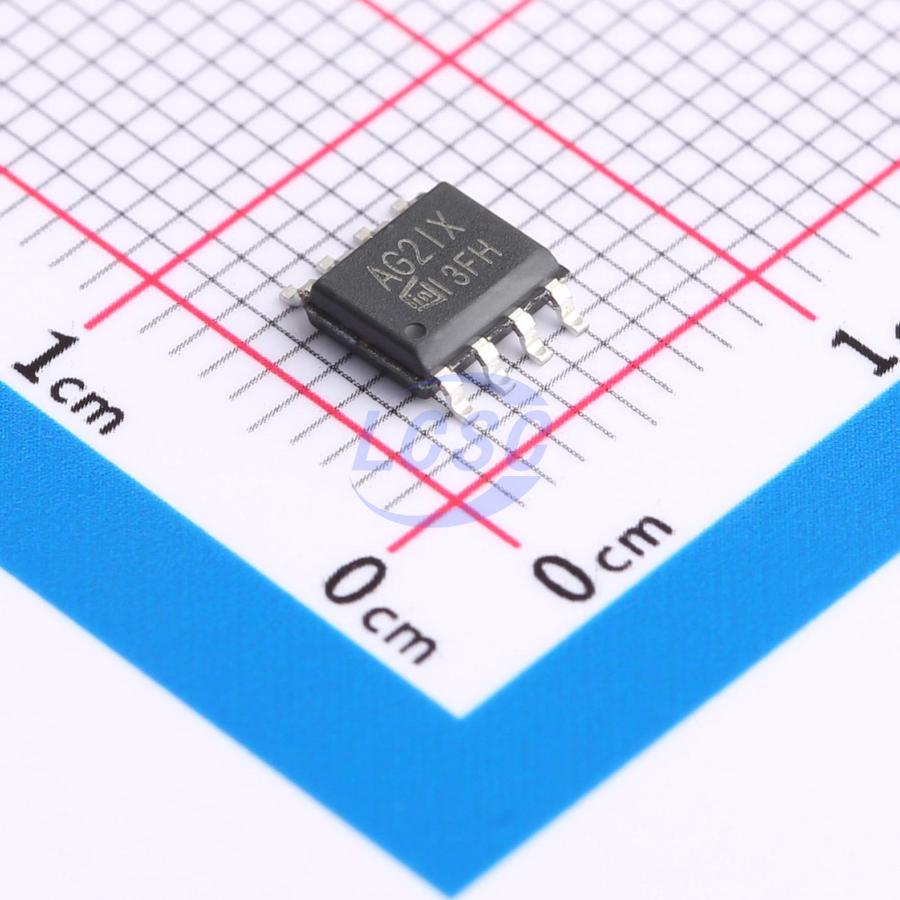

LTC8842XS8/R8

45mA 2 350uV 1.2V/us 1pA 96dB 85uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8L Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8LROHS CompliantActive

Micro-Power 1.5MHz, Low-Noise, RRIO, 1.8V Precision Amplifiers

Manufacturer: Linearin
Manufacturer part #: LTC8842XS8/R8
Store part #: C3035423
Package / case: SOIC-8L
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,973 in stock

#C3035423

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹33.39	₹33.39
500+	₹31.66	₹15,830.00

Quantity (min 1)

1 × ₹33.39

₹33.39

excl. GST

₹39.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LTC8842XS8/R8

₹33.39 for 1 + GST

Specifications

Output Current: 45mA
Number of Channels: 2
Vos - Input Offset Voltage: 350uV
Slew Rate: 1.2V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 96dB
Input Offset Voltage Drift(Vos TC): 800nV/℃
Quiescent Current: 85uA
Gain Bandwidth Product: 1.5MHz
Features: EMI filtering/RF suppression;Reverse-phase input protection;ESD protection
Input Voltage Noise Density: 25nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1V;1V~2.75V
Single Supply: 2V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.17 g

Overview

The LTC884x family of single-, dual-, and quad- channel amplifiers provides input offset voltage correction for low offset (maximum 350 μV) and drift (0.8 μV/°C) through the use of proprietary techniques. Featuring rail-to-rail input and output swings, and low quiescent current (typical 85 μA) combined with a wide bandwidth of 1.5 MHz and very low noise (25 nV/√Hz at 1 kHz) makes this family very attractive for a variety of battery-powered applications such as handsets, tablets, notebooks, and portable medical devices. The low input bias current supports these amplifiers to be used in applications with mega-ohm source impedances. The robust design of the LTC884x amplifiers provides ease-of-use to the circuit designer: unity-gain stability with capacitive loads of up to 500 pF, integrated RF/EMI rejection filter, no phase reversal in overdrive conditions, and high electro-static discharge (ESD) protection (5-kV HBM). The LTC884x amplifiers are optimized for operation at voltages as low as +1.8 V (±0.9 V) and up to +5.5 V (±2.75 V) at the temperature range of 0 °C to 70 °C, and operation at voltages from +2.0 V (±1.0 V) to +5.5 V (±2.75 V) over the extended temperature range of -40 °C to +125 °C. The LTC8841 (single) is available in both SOT23-5L and SC70-5L packages. The LTC8842 (dual) is offered in DFN-8L, SOIC-8L and MSOP-8L packages. The quad-channel LTC8844 is offered in QFN-16L, SOIC-14L and TSSOP-14L packages.
