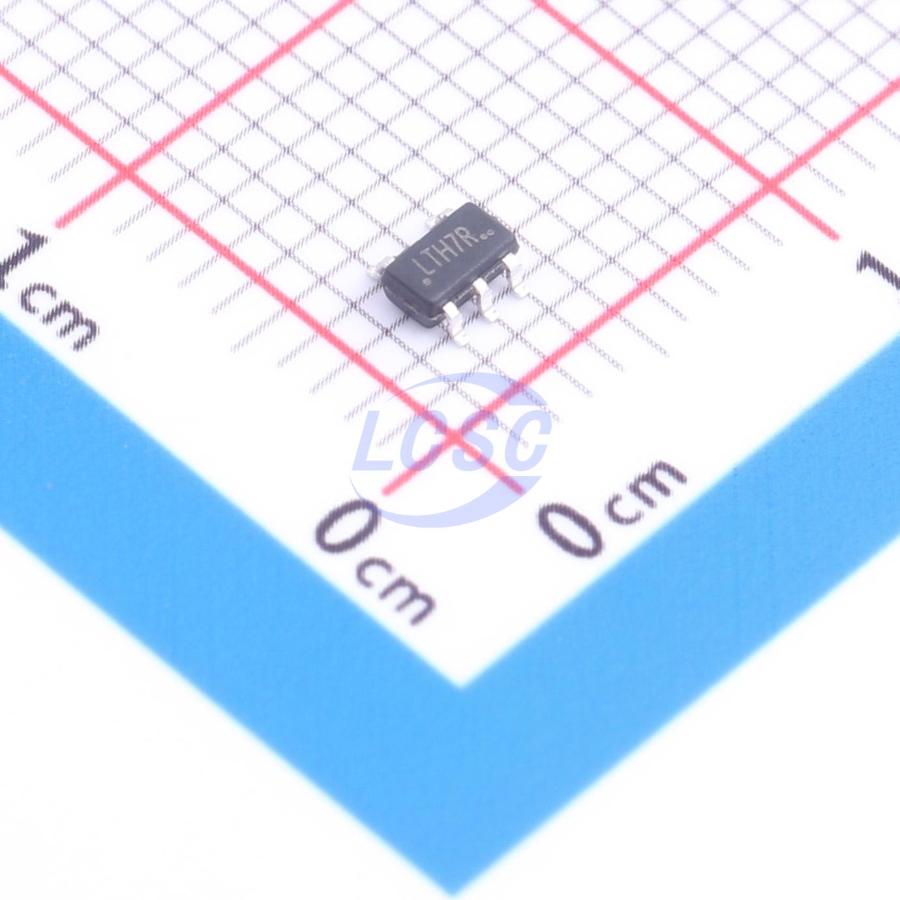

LTH7R..
Lithium Battery 500mA SOT23-5 Battery Management RoHS
- Manufacturer
- FM
- Manufacturer part #
- LTH7R..
- Store part #
- C49340408
- Package / case
- SOT23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,380 in stock
#C49340408
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.78 | ₹55.60 |
| 200+ | ₹2.17 | ₹434.00 |
| 600+ | ₹1.84 | ₹1,104.00 |
| 3,000+ | ₹1.64 | ₹4,920.00 |
| 9,000+ | ₹1.47 | ₹13,230.00 |
| 21,000+ | ₹1.36 | ₹28,560.00 |
20 × ₹2.78
₹55.60
excl. GST
₹65.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LTH7R..
₹55.60 for 20 + GST
Specifications
- Quiescent Current
- 70uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.51 g
Overview
LTH7R.. is a constant-current/constant-voltage cradle charger management IC designed primarily for single-cell lithium battery charging. Its application circuit requires no external sense resistor, and the internal MOSFET structure eliminates the need for an external reverse-blocking diode. Under high power dissipation or elevated ambient temperature conditions, the IC automatically reduces charging current to limit junction temperature. The charge voltage is fixed, while the charge current is programmable via an external resistor. When the battery voltage reaches the float voltage and the charge current drops to 1/10 of the programmed value, the IC automatically terminates the charging process. Upon removal of the input voltage, the IC enters a low-current mode, drawing less than 5uA from the battery. In standby mode, the supply current is only 70uA. Additionally, the IC features charge current monitoring, voltage detection, automatic recharge, and provides a status pin for indicating charging state and battery full condition.
Applications
- Mobile phones
- PDAs
- MP3 players
- Bluetooth headsets
Key features
- Programmable charge current up to 500 mA
- No external MOSFET, sense resistor, or blocking diode required
- Constant-current/constant-voltage operation
- Thermal protection
- Li-ion battery charging via USB port
- 1% preset charge voltage accuracy
- Low supply current in standby mode
- Trickle charge threshold voltage: 2.9V
- Soft-start to limit inrush current
- SOT23-5 package
