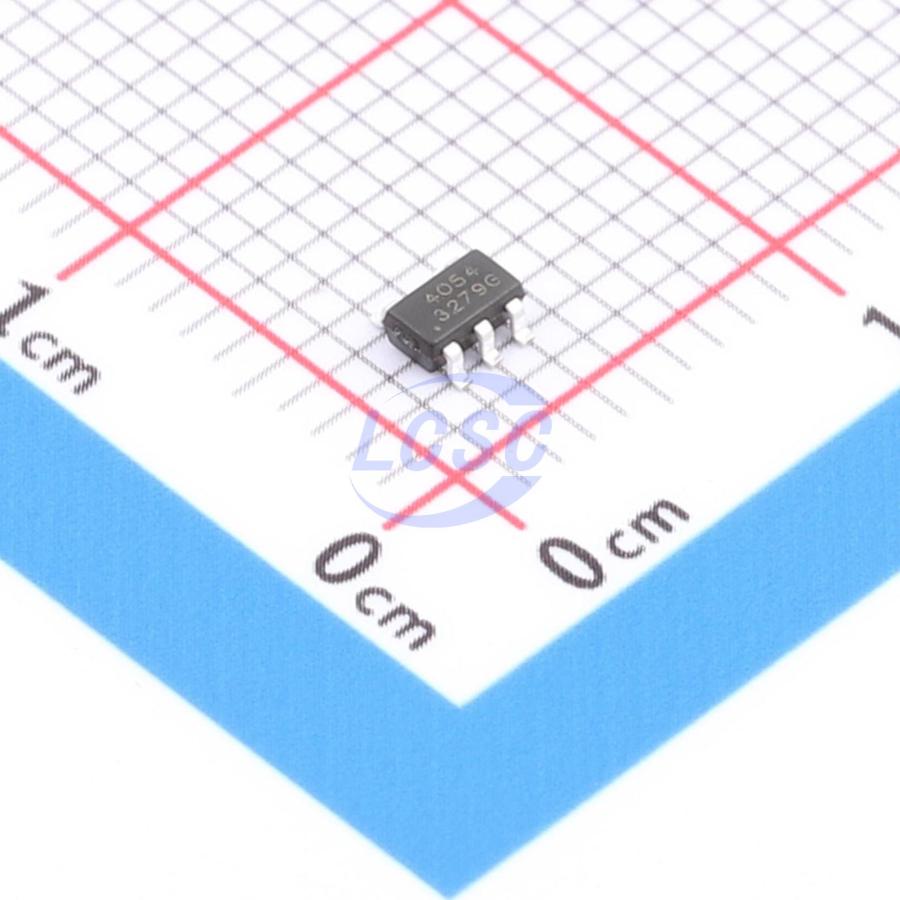

LY4054
Battery Charging IC Lithium Battery SOT-23-5
Lithium-ion battery linear charging chip
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY4054
- Store part #
- C46613882
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,750 in stock
#C46613882
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.67 | ₹133.50 |
| 500+ | ₹2.09 | ₹1,045.00 |
| 3,000+ | ₹1.76 | ₹5,280.00 |
| 6,000+ | ₹1.57 | ₹9,420.00 |
| 24,000+ | ₹1.40 | ₹33,600.00 |
| 51,000+ | ₹1.31 | ₹66,810.00 |
50 × ₹2.67
₹133.50
excl. GST
₹157.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LY4054
₹133.50 for 50 + GST
Specifications
- Operating Temperature
- 0℃~+85℃
- Quiescent Current
- 1uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 800mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.038 g
Overview
LY4054 is a single-cell lithium-ion battery CC/CV linear charger IC with reverse battery protection. It requires minimal external components, making it suitable for portable applications, with a maximum charge current of 800mA. The IC employs an internal PMOSFET architecture with integrated reverse-charge prevention circuitry, eliminating the need for an external isolation diode. A thermal feedback loop automatically adjusts the charge current to limit the IC temperature under high-power or high-temperature conditions. When the input voltage is removed, the IC automatically enters a low-current state with a typical battery leakage current of less than 1μA. Additional features include battery temperature monitoring, UVLO, automatic recharge, and charge status indication.
Applications
- Portable devices such as small speakers
- Bluetooth headsets
- GPS devices
- Other lithium battery-powered devices
Key features
- Reverse battery protection
- Maximum charge current up to 800mA
- Pre-charge to 4.2V charge voltage
- Battery terminal quiescent current less than 1μA
- Intelligent temperature regulation
- Intelligent recharge function
- C/10 charge termination
- 2.8V trickle charge threshold
- Charge indicator control signal
- SOT23-5L package
