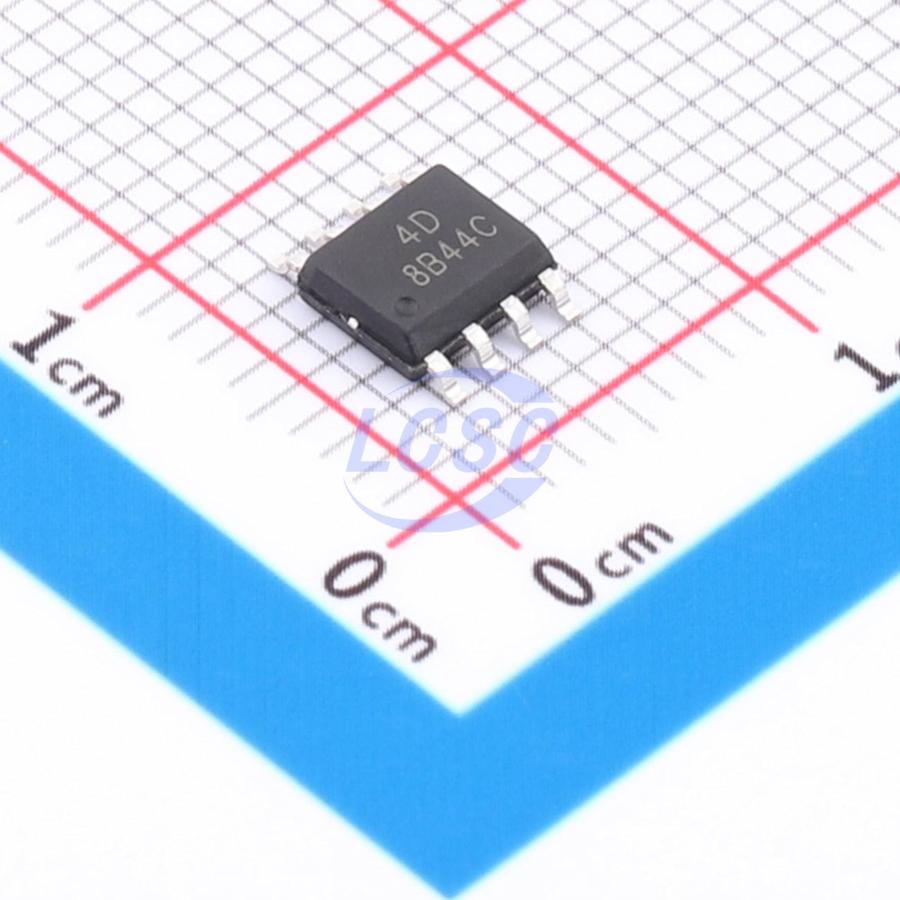

LY6294D
Battery Charging IC Lithium Battery ESOP-8
Power management chip for TWS earbud charging case
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY6294D
- Store part #
- C46613919
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,755 in stock
#C46613919
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.95 | ₹64.75 |
| 50+ | ₹10.24 | ₹512.00 |
| 150+ | ₹8.89 | ₹1,333.50 |
| 500+ | ₹7.87 | ₹3,935.00 |
| 2,500+ | ₹7.05 | ₹17,625.00 |
| 4,000+ | ₹6.64 | ₹26,560.00 |
5 × ₹12.95
₹64.75
excl. GST
₹76.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LY6294D
₹64.75 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Quiescent Current
- 4uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.6V~5.5V
- The Chip Type
- Charging IC
- Charge Current - Max
- 900mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
LY6294 is a fully integrated power management IC designed for Bluetooth charging cases, incorporating lithium battery charge management, a synchronous boost converter, battery fuel gauge, and protection function modules. The chip supports two modes: auto load detection with auto shutdown, and constant 5V output. In auto shutdown mode, the standby current is 4uA; in constant 5V output mode, the standby current is 45uA.
Applications
- Bluetooth earphone charging case
- Power bank
- Portable lithium battery applications
Key features
- Auto on/off and continuous output modes, freely configurable
- Light-load auto-shutdown current: 7mA
- Standby current in auto-shutdown state: 4uA
- Standby current in 5V continuous output state: 45uA
- Standby voltage after auto-shutdown: 2V
- Charging current: 0.21A / 0.31A / 0.9A
- Maximum discharge current: 1A
- Output overvoltage, short-circuit, and overcurrent protection
- Intelligent temperature control
- Supports 1~4 LED battery level indication
- Supports single-click to power on, long-press to power off
- Boost efficiency up to 93%
- ESOP8 package
