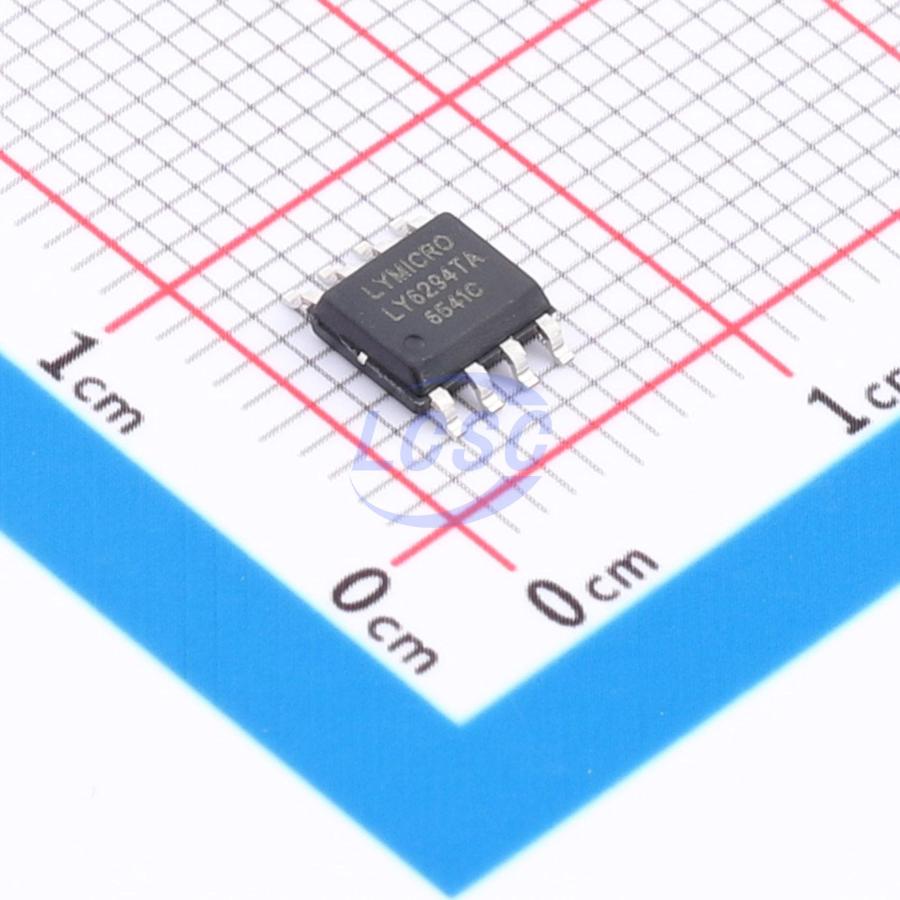

LY6294TA
Battery Charging IC Battery Protection IC Lithium Battery ESOP-8
Power management chip for TWS earphone charging case with NTC function
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY6294TA
- Store part #
- C46613906
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,990 in stock
#C46613906
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.70 | ₹53.50 |
| 50+ | ₹9.39 | ₹469.50 |
| 150+ | ₹8.75 | ₹1,312.50 |
| 500+ | ₹8.26 | ₹4,130.00 |
| 2,500+ | ₹7.86 | ₹19,650.00 |
| 4,000+ | ₹7.66 | ₹30,640.00 |
5 × ₹10.70
₹53.50
excl. GST
₹63.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LY6294TA
₹53.50 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Quiescent Current
- 4uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.6V~5.5V
- The Chip Type
- Charging IC;Protection IC
- Charge Current - Max
- 200mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.162 g
Overview
LY6294T is a fully integrated power management IC designed for Bluetooth earphone charging cases. It integrates lithium battery charge management, a synchronous boost converter, battery fuel gauge, and protection functions. The IC features NTC temperature protection, requiring only a single NTC resistor to monitor lithium battery temperature during both charging and discharging.
Applications
- Bluetooth earphone charging case
- Portable lithium battery applications
Key features
- NTC function support
- Light-load auto-shutdown current: 7mA
- Standby voltage: selectable between battery voltage or 2V
- Standby current: 4uA
- Charging current: selectable at 0.2A / 0.3A / 0.4A / 0.9A
- Maximum discharge current: 1A
- Output overvoltage, short-circuit, and overcurrent protection
- Intelligent temperature control
- 1/2/3/4-LED battery level indication support
- Boost efficiency up to 93%
- ESOP8 package
