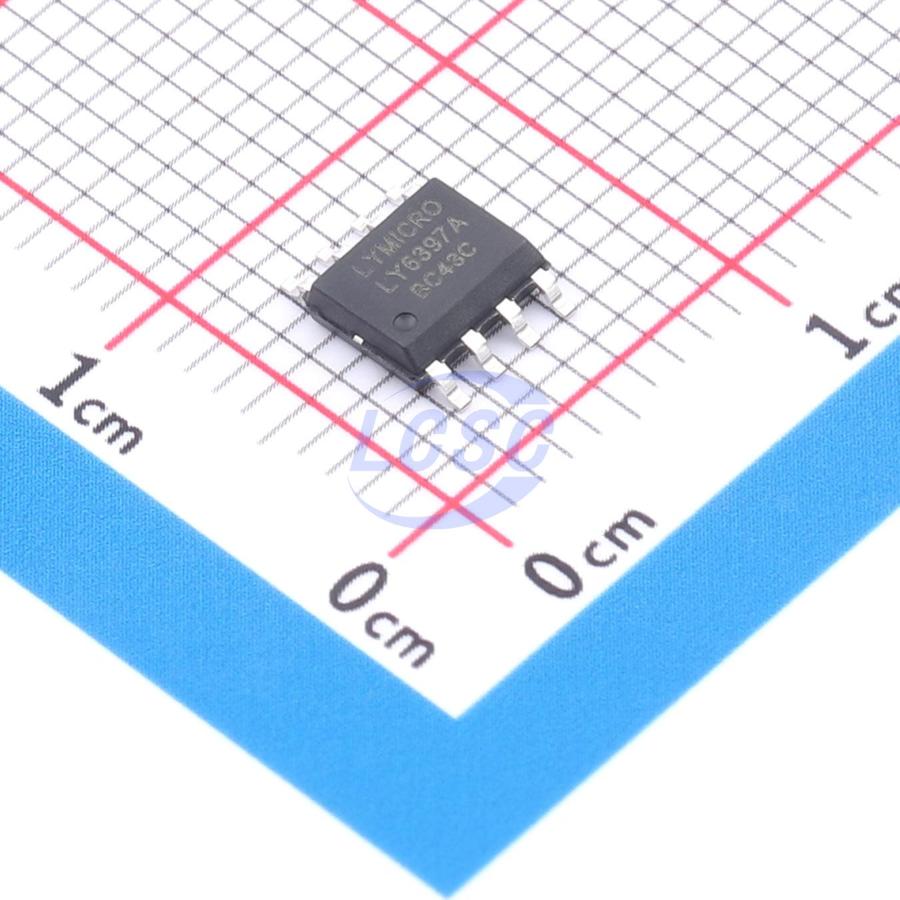

LY6397A
Lithium Battery 200mA ESOP-8 Battery Management
30V withstand voltage TWS earphone charging case management chip
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY6397A
- Store part #
- C46613885
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,990 in stock
#C46613885
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.68 | ₹53.40 |
| 50+ | ₹9.37 | ₹468.50 |
| 150+ | ₹8.72 | ₹1,308.00 |
| 500+ | ₹8.23 | ₹4,115.00 |
| 2,500+ | ₹7.85 | ₹19,625.00 |
| 4,000+ | ₹7.65 | ₹30,600.00 |
5 × ₹10.68
₹53.40
excl. GST
₹63.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LY6397A
₹53.40 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Quiescent Current
- 4.5uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.9V
- The Chip Type
- Charging IC;Protection IC
- Charge Current - Max
- 200mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.157 g
Overview
This chip is a fully integrated power management IC designed for Bluetooth charging cases, incorporating lithium battery charge management, a synchronous boost converter, battery fuel gauge, and protection function modules. It integrates an input overvoltage protection circuit with an overvoltage protection threshold of 6.1V, and the VIN input withstand voltage is up to 30V. The chip also integrates an adapter adaptive function to prevent no-charging or adapter damage scenarios. It supports automatic load detection, auto-shutdown mode, and 5V always-on output mode. In auto-shutdown mode, the default standby voltage is 2V; alternatively, the standby voltage can be set to the battery voltage by connecting a pull-up resistor from BAT to the OUT pin. The standby current in auto-shutdown mode is 4.5uA, and the chip standby current in 5V always-on output mode is 45uA.
Applications
- Bluetooth earphone charging case
- Power bank
- Portable lithium battery applications
Key features
- VIN input voltage rating: 30V
- Supports auto power on/off and always-on output modes, freely configurable
- Light-load auto shutdown current: 7mA
- Standby voltage: 2V or battery voltage selectable
- Adapter adaptive voltage: 4.6V
- Power-down mode standby current: 4.5uA
- 5V always-on output mode standby current: 45uA
- Charge current: 200mA / 300mA / 500mA selectable
- Maximum discharge current: 500mA
- Output overvoltage, short-circuit, and overcurrent protection
- Intelligent temperature control
- Supports 1~4 LED battery level indication
- Supports single-click power on, long-press power off
- Boost efficiency up to 93%
- ESOP8 package
