LY6399N

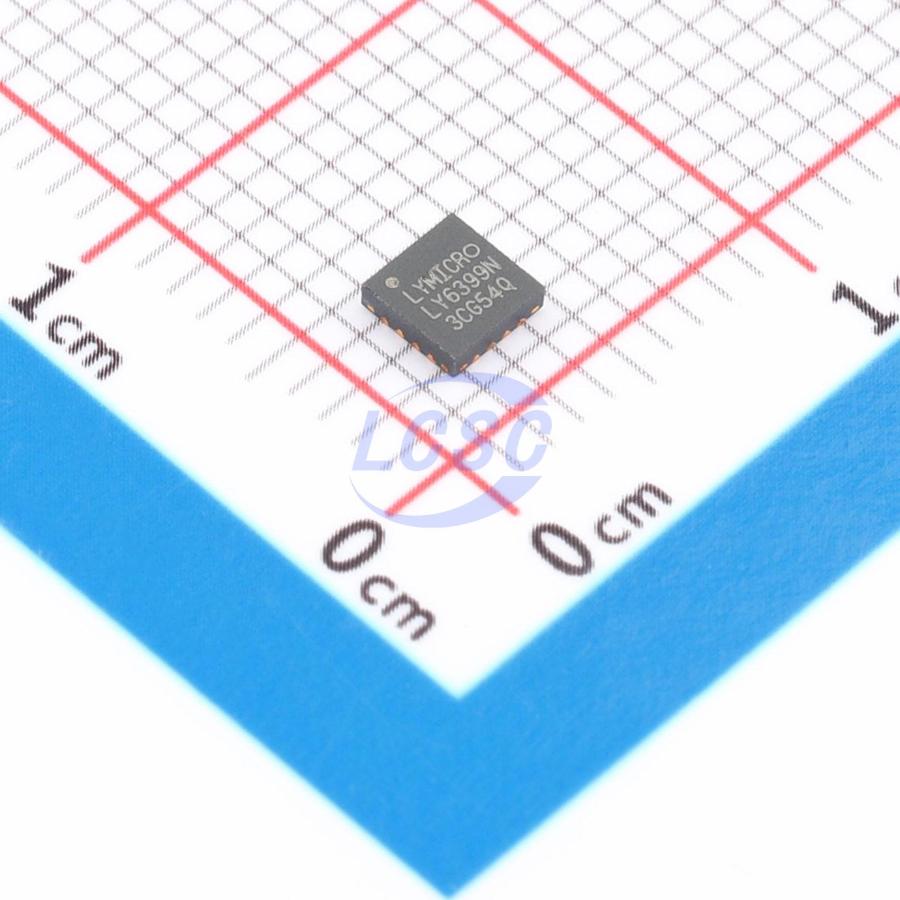

Lithium Battery 500mA QFN-16-EP(3x3) Battery Management
30V withstand voltage TWS earphone charging case management chip
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY6399N
- Store part #
- C46613884
- Package / case
- QFN-16-EP(3x3)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,695 in stock
#C46613884
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.87 | ₹64.35 |
| 50+ | ₹11.30 | ₹565.00 |
| 150+ | ₹10.52 | ₹1,578.00 |
| 500+ | ₹9.92 | ₹4,960.00 |
| 2,500+ | ₹9.46 | ₹23,650.00 |
| 4,000+ | ₹9.22 | ₹36,880.00 |
5 × ₹12.87
₹64.35
excl. GST
₹75.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LY6399N
₹64.35 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Quiescent Current
- 4.5uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.9V
- The Chip Type
- Charging IC;Protection IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.101 g
Overview
LY6399N is a fully integrated power management IC designed for Bluetooth charging cases. It integrates lithium battery charge management, a synchronous boost converter, battery fuel gauge, and protection function modules. The integrated input OVP protection circuit provides overvoltage protection at 6.1V, with VIN input withstand voltage up to 30V. An integrated adapter adaptive function prevents no-charging or adapter damage scenarios. Supports Hall sensor direct drive control of the EN pin, enabling automatic earphone reconnection upon lid opening, 4S light-on upon lid opening, and automatic boost activation upon lid closing — eliminating the need for external MOSFETs, transistors, or other output loop control circuits. The EN pin can also be controlled by an MCU to regulate output voltage for one-way communication. Supports two modes: automatic load detection with auto shutdown, and 5V constant output. In auto-shutdown mode, the chip standby current is 4.5μA; in 5V constant output mode, the chip standby current is 45μA. Integrated NTC temperature protection function — by default, a single NTC resistor enables temperature monitoring of the lithium battery during both charging and discharging states.
Applications
- Bluetooth earphone charging case
- Portable lithium battery applications
Key features
- Integrated OVP, VIN input withstand voltage 30V
- NTC monitoring for charge/discharge
- Hall sensor or MCU direct-drive control output
- Hall sensor support: open-lid light-on for 4S, close-lid auto-activate boost
- Adapter adaptive voltage: 4.6V
- Light-load auto-shutdown current 7mA
- Standby voltage: selectable 2V/VBAT/5V/0V
- Standby current 4.5uA after shutdown in voltage-drop mode
- Standby current 45uA after shutdown in 5V constant output mode
- Independent detection for dual earbuds insertion
- Charge current: selectable 200mA~500mA
- Discharge current: 300mA
- Output overvoltage, short-circuit, and overcurrent protection
- Intelligent temperature control
- 1/2/3/4-LED battery level indication
- Single-click power-on, long-press power-off
- Boost efficiency up to 93%
- Package: QFN16 (3mm×3mm)
