ST

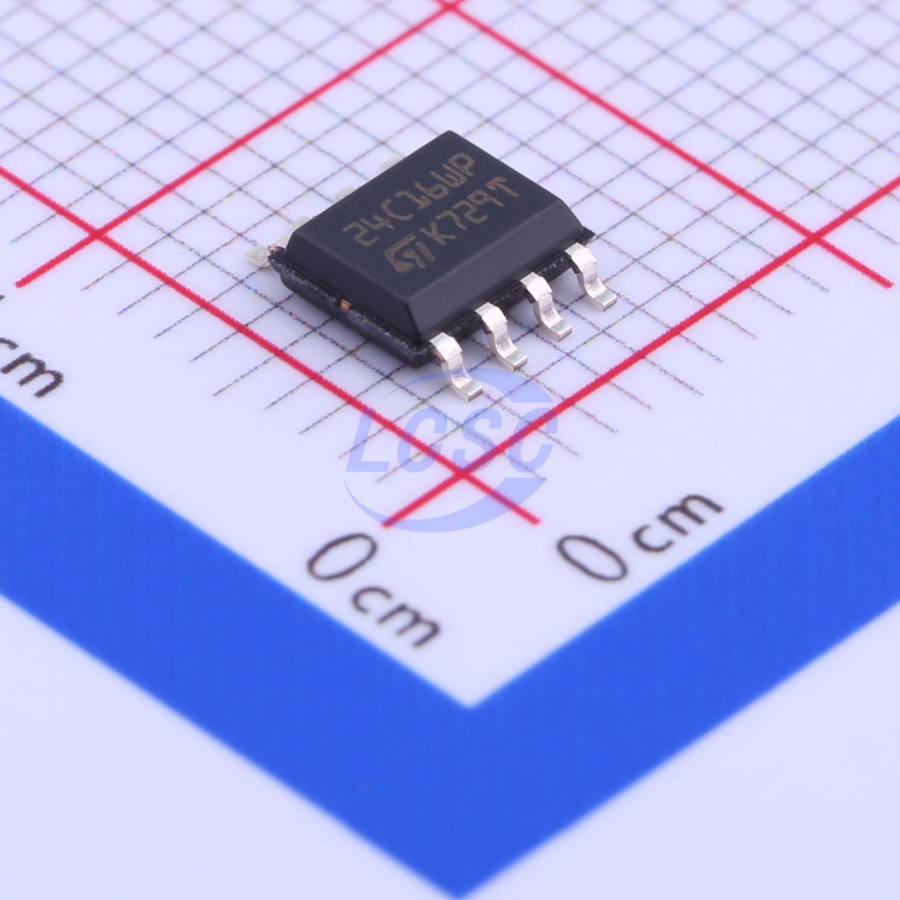

M24C16-WMN6P
16Kbit 400kHz I2C SO-8 Memory RoHS
SO-8ROHS3 CompliantActive
16-Kbit serial I2C bus EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C283443
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.61 | ₹218.05 |
| 50+ | ₹35.14 | ₹1,757.00 |
| 150+ | ₹31.50 | ₹4,725.00 |
| 500+ | ₹26.96 | ₹13,480.00 |
| 2,500+ | ₹24.94 | ₹62,350.00 |
| 5,000+ | ₹23.73 | ₹1,18,650.00 |
5 × ₹43.61
₹218.05
excl. GST
₹257.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
M24C16-WMN6P
₹218.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 16Kbit
- Voltage - Supply
- 2.5V~5.5V;1mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.194 g
Overview
The M24C16 is a 16-Kbit |²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 2 Kx8 bits. The M24C16-W can be accessed (Read and Write) with a supply voltage from 2.5 V to 5.5 V. the M24C16-R can be accessed (Read and Write) with a supply voltage from 1.8 V to 5.5 V. and the M24C16-F can be accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range).
Key features
- Compatible with all |²C bus modes:
- 400 kHz
- 100 kHz
- Memory array: 16 Kbit (2 Kbyte) of EEPROM
- Page size: 16 byte
- Single supply voltage: M24C16-W: 2.5 V to 5.5 V; M24C16-R: 1.8 V to 5.5 V; M24C16-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
- Write: Byte Write within 5 ms
- Page Write within 5 ms
- Operating temperature range: from -40 ℃ up to +85 ℃
- Random and sequential Read modes
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24C16-WMN6TP#C7997ST · SOIC-8 | ST | SOIC-8 | 7,190 | ₹28.01 · 7,190 in stock | View |
 | M24C16-RMN6TP#C79946ST · SOIC-8 | ST | SOIC-8 | 19,665 | ₹22.89 · 19,665 in stock | View |
 | M24C16-FMN6TP#C2061122ST · SO-8 | ST | SO-8 | 140 | ₹11.80 · 140 in stock | View |
 | 24LC16B-I/SN#C1349383MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1,090 | ₹53.12 · 1,090 in stock | View |
 | 24LC16BH-I/SN#C1351703MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 97 | ₹131.04 · 97 in stock | View |
