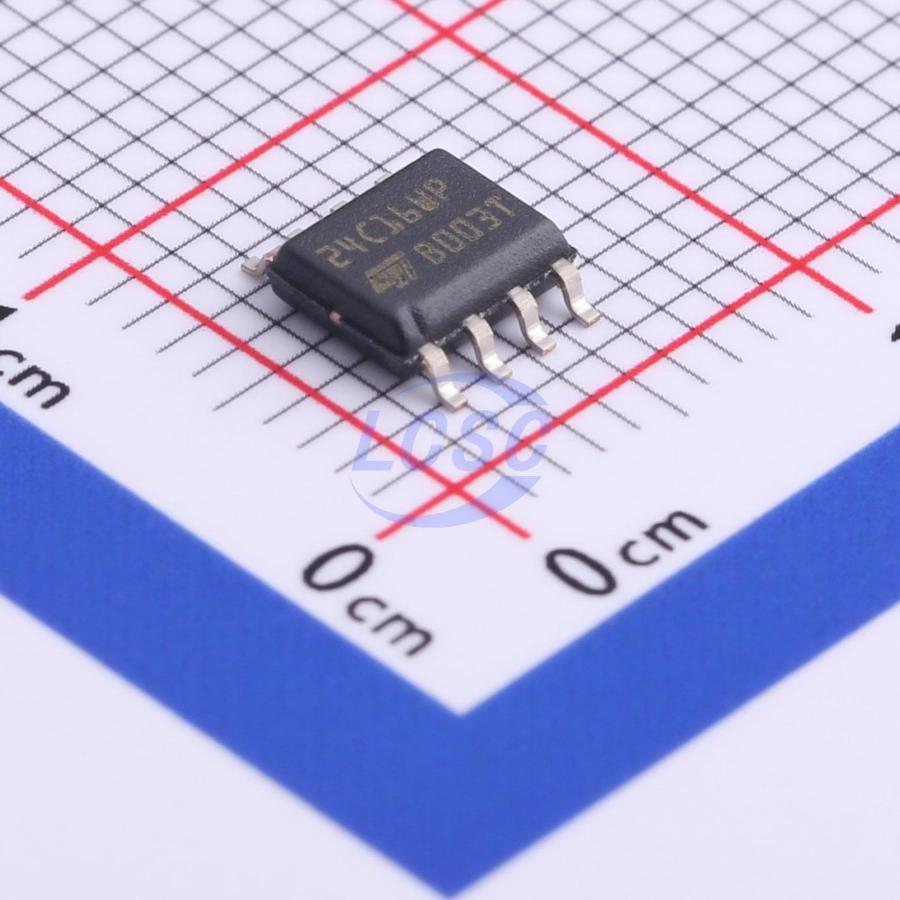

M24C16-WMN6TP
16Kbit 400kHz I2C SOIC-8 Memory RoHS
16-Kbit serial I2C bus EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,190 in stock
#C7997
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.01 | ₹140.05 |
| 50+ | ₹22.73 | ₹1,136.50 |
| 150+ | ₹20.47 | ₹3,070.50 |
| 500+ | ₹15.08 | ₹7,540.00 |
| 2,500+ | ₹13.83 | ₹34,575.00 |
| 5,000+ | ₹13.07 | ₹65,350.00 |
5 × ₹28.01
₹140.05
excl. GST
₹165.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24C16-WMN6TP
₹140.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 16Kbit
- Voltage - Supply
- 2.5V~5.5V;1mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The M24C16 is a 16-Kbit |²C -compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 2 Kx8 bits. The M24C16-W can be accessed (Read and Write) with a supply voltage from 2.5 V to 5.5 V, the M24C16-R can be accessed (Read and Write) with a supply voltage from 1.8 V to 5.5 V, and the M24C16-F can be accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 1.7 V. All these devices operate with a clock frequency of 400 kHz.
Key features
- Compatible with all |²C bus modes: 400 kHz – 100 kHz
- Memory array: 16 Kbit (2 Kbytes) of EEPROM
- Page size: 16 bytes
- Single supply voltage:
- M24C16-W: 2.5 V to 5.5 V
- M24C16-R: 1.8 V to 5.5 V
- M24C16-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
- Write:
- Byte Write within 5 ms
- Page Write within 5 ms
- Operating temperature range: from -40 ℃ up to +85 ℃
- Random and sequential Read modes
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-year data retention
- Packages: RoHS compliant and halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24C16-WMN6P#C283443ST · SO-8 | ST | SO-8 | 2,510 | ₹43.61 · 2,510 in stock | View |
 | M24C16-RMN6TP#C79946ST · SOIC-8 | ST | SOIC-8 | 19,665 | ₹22.89 · 19,665 in stock | View |
 | M24C16-FMN6TP#C2061122ST · SO-8 | ST | SO-8 | 140 | ₹11.80 · 140 in stock | View |
 | 24LC16B-I/SN#C1349383MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1,090 | ₹53.12 · 1,090 in stock | View |
 | 24LC16BH-I/SN#C1351703MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 97 | ₹131.04 · 97 in stock | View |
