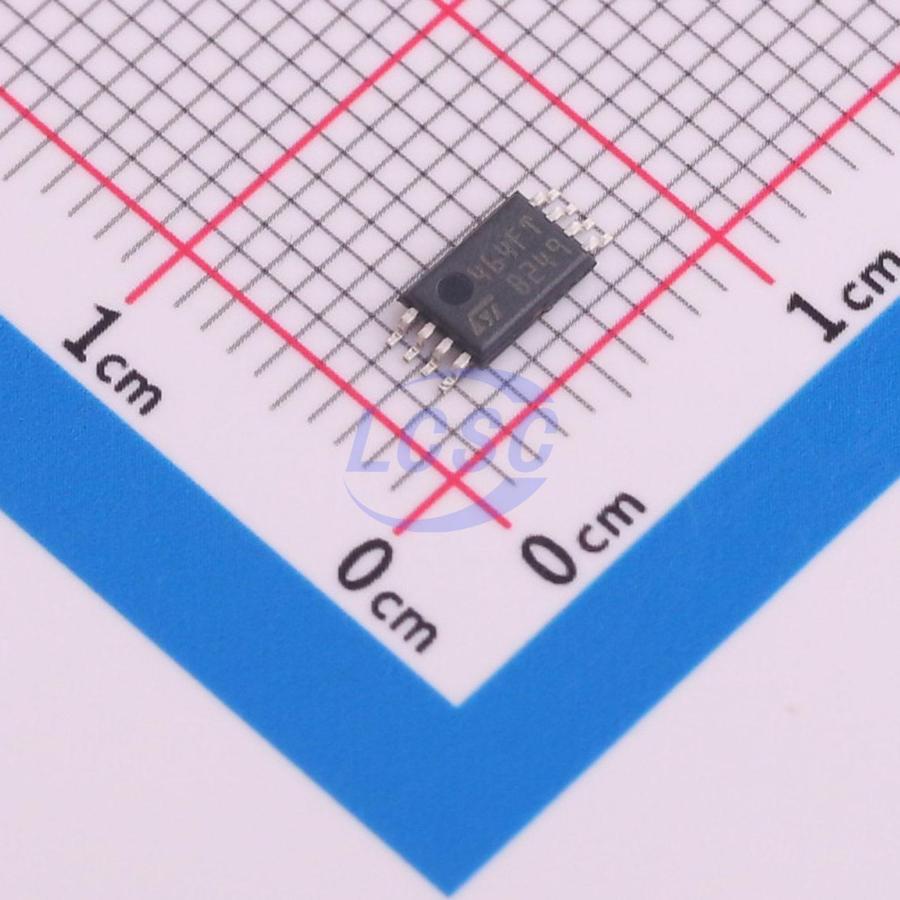

M24C64-FDW6TP
64Kbit 1MHz I2C TSSOP-8 Memory RoHS
64-Kbit serial I²C bus EEPROMs
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,730 in stock
#C222148
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.28 | ₹136.40 |
| 50+ | ₹21.37 | ₹1,068.50 |
| 150+ | ₹18.83 | ₹2,824.50 |
| 500+ | ₹15.65 | ₹7,825.00 |
| 2,500+ | ₹14.25 | ₹35,625.00 |
| 4,000+ | ₹13.40 | ₹53,600.00 |
5 × ₹27.28
₹136.40
excl. GST
₹160.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
M24C64-FDW6TP
₹136.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.7V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The M24C64 is a 64-Kbit |²C -compatible EEPROM (electrically erasable programmable memory) organized as 8Kx8 bits. Over an ambient temperature range of -40℃/+85℃, the M24C64-W can operate with a supply voltage from 2.5 V to 5.5V, the M24C64-R can operate with a supply voltage from 1.8 V to 5.5V, and the M24C64-F and M24C64-DF can operate with a supply voltage from 1.7 V to 5.5 V (the M24C64-F can also operate down to 1.6 V, under some restricting conditions). The M24C64-D offers an additional page, named the identification page (32 byte). The identification page can be used to store sensitive application parameters which can be (later) permanently locked in read-only mode.
Key features
- Compatible with following |²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 64 Kbit (8 Kbyte) of EEPROM
- Page size: 32 byte
- Additional Write lockable page (M24C64-D order codes)
- Single supply voltage: 1.7 V to 5.5 V over -40℃/+85℃, 1.6 V to 5.5 V over 0℃/+85℃
- Write: Byte write within 5 ms, Page write within 5 ms
- Random and sequential read modes
- Write protect of the whole memory array
- Enhanced ESD/latch-Up protection
- More than 4 million write cycles
- More than 200-years data retention
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24C64-DFDW6TP#C2062133ST · TSSOP-8 | ST | TSSOP-8 | 2 | ₹75.36 · 2 in stock | View |
 | FEP24C64YTSSOP8G/TR#C49425008Full-Way · TSSOP-8 | Full-Way | TSSOP-8 | 1,840 | ₹18.39 · 1,840 in stock | View |
 | FT24C64A-ETR-T#C232888FMD(Fremont Micro Devices) · TSSOP-8 | FMD(Fremont Micro Devices) | TSSOP-8 | 1,670 | ₹18.20 · 1,670 in stock | View |
 | M24C64-DRDW8TP/K#C2062642ST · TSSOP-8 | ST | TSSOP-8 | 49 | ₹132.82 · 49 in stock | View |
 | AT24C64D-XHM-T#C111440MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 1,018 | ₹103.63 · 1,018 in stock | View |
