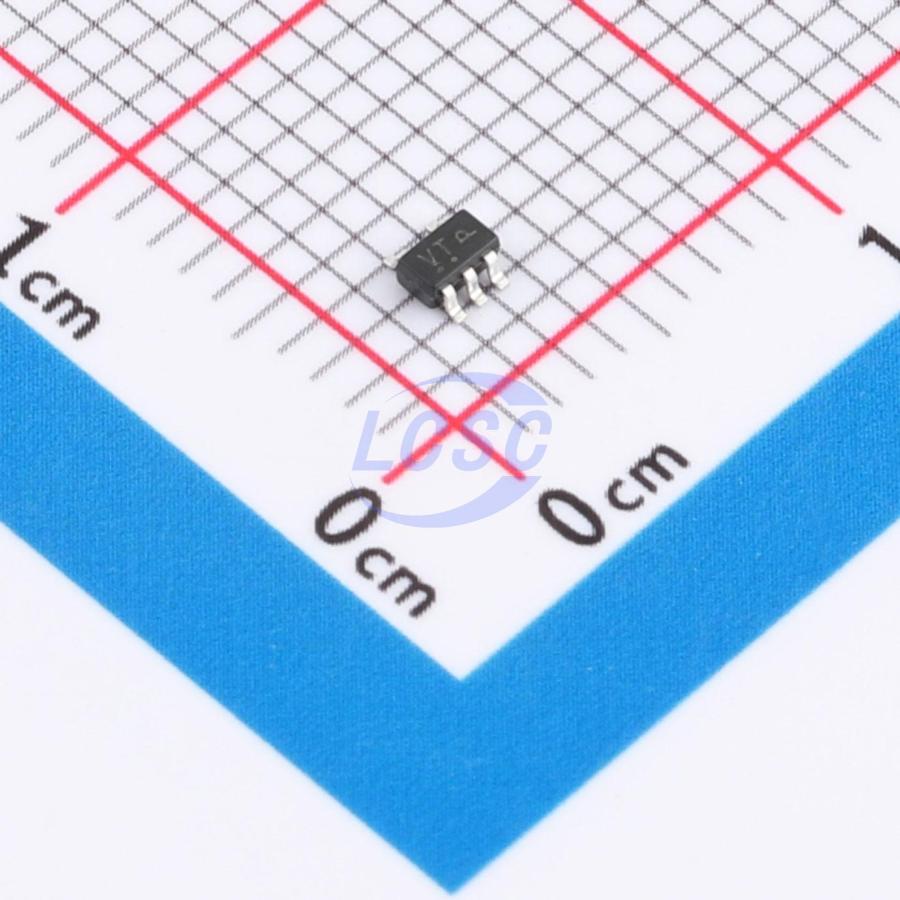

M74VHC1GT08DFT2G-TP
10uA 2V~6V 17ns@6.0V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- M74VHC1GT08DFT2G-TP
- Store part #
- C52098126
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,360 in stock
#C52098126
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.42 | ₹67.10 |
| 50+ | ₹10.54 | ₹527.00 |
| 150+ | ₹9.12 | ₹1,368.00 |
| 500+ | ₹8.04 | ₹4,020.00 |
| 3,000+ | ₹7.18 | ₹21,540.00 |
| 6,000+ | ₹6.75 | ₹40,500.00 |
5 × ₹13.42
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
M74VHC1GT08DFT2G-TP
₹67.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Logic Family
- 74VHC
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 1;2
- Propagation Delay
- 17ns@6.0V,50pF
- Output Logic Level - Low
- 100mV;260mV;330mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Voltage level translation
- General-purpose logic
- Power-down signal isolation
- Consumer electronics
- Computing and communications equipment
Key features
- Supply voltage range: 2.0~6.0V
- Operating temperature range: -40~+85℃
- |IOH| = IOL = 2mA (minimum)
- ESD protection exceeds ESD 22 standard
- 2000-V Human Body Model (A114-A)
- 1000-V Charged Device Model (C101)
- Available in SOT23-5 package
- Available in SOT353 package
