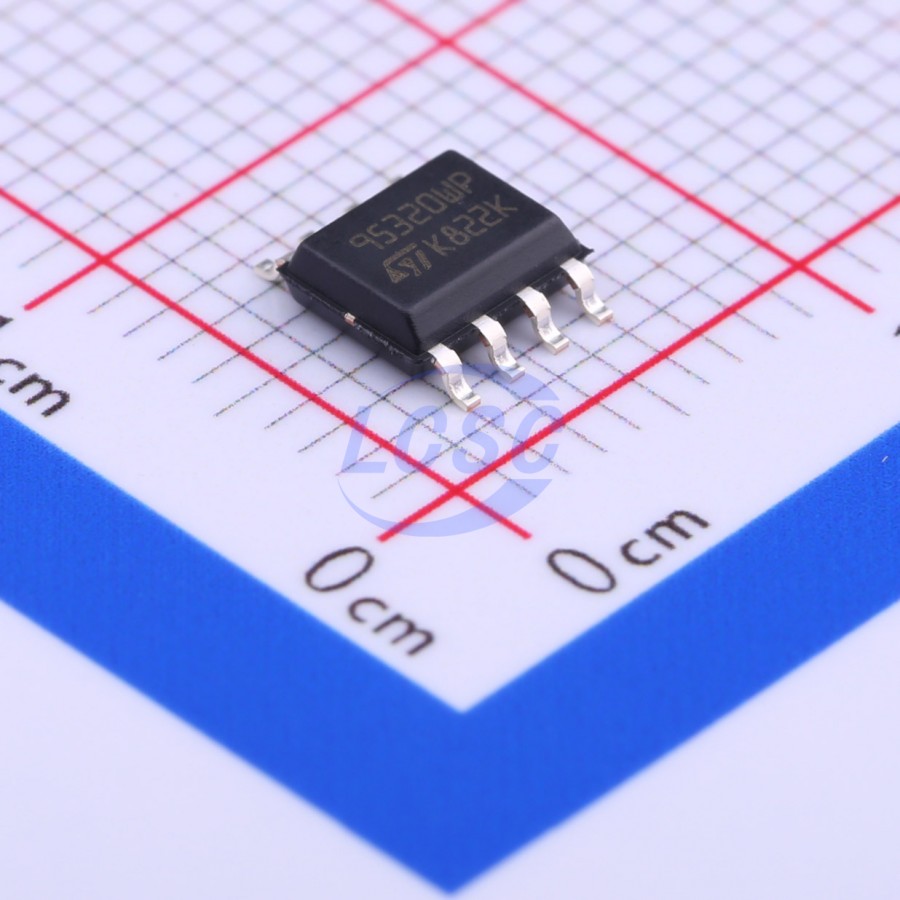

M95320-WMN6TP
32Kbit 20MHz SPI SOP-8 Memory RoHS
32-Kbit serial SPI bus EEPROM with high-speed clock
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C283459
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.16 | ₹210.80 |
| 50+ | ₹32.85 | ₹1,642.50 |
| 150+ | ₹28.85 | ₹4,327.50 |
| 500+ | ₹23.88 | ₹11,940.00 |
| 2,500+ | ₹21.66 | ₹54,150.00 |
| 5,000+ | ₹20.33 | ₹1,01,650.00 |
5 × ₹42.16
₹210.80
excl. GST
₹248.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M95320-WMN6TP
₹210.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function;Built-in write enable latch (WEL);Page write protection function;Software write protection function
- Memory Size
- 32Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 20MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.194 g
Overview
The M95320 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 4096 × 8 bits, accessed through the SPl bus. The M95320 devices can operate with a supply range from 1.7 V to 5.5 V and are guaranteed over the -40 ℃/+85 ℃ temperature range. The M95320-D offers an additional page, named the Identification Page (32 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with the Serial Peripheral Interface (SPI) bus
- Memory array:
- 32 Kb (4 Kbytes) of EEPROM
- Page size: 32 bytes
- Write:
- Byte Write within 5 ms
- Page Write within 5 ms
- Additional Write lockable page (Identification page)
- Write Protect: quarter, half or whole memory array
- High-speed clock: 20 MHz
- Single supply voltage:
- 2.5 V to 5.5 V for M95320 - W
- 1.8 V to 5.5 V for M95320 - R
- 1.7 V to 5.5 V for M95320 - DF
- Operating temperature range: from -40 ℃ up to +85 ℃
- Enhanced ESD protection
- More than 4 million Write cycles
- More than 200 - year data retention
- Packages:
- SO8 (ECOPACK2)
- TSSOP8 (ECOPACK2)
- UFDFPN8 (ECOPACK2)
