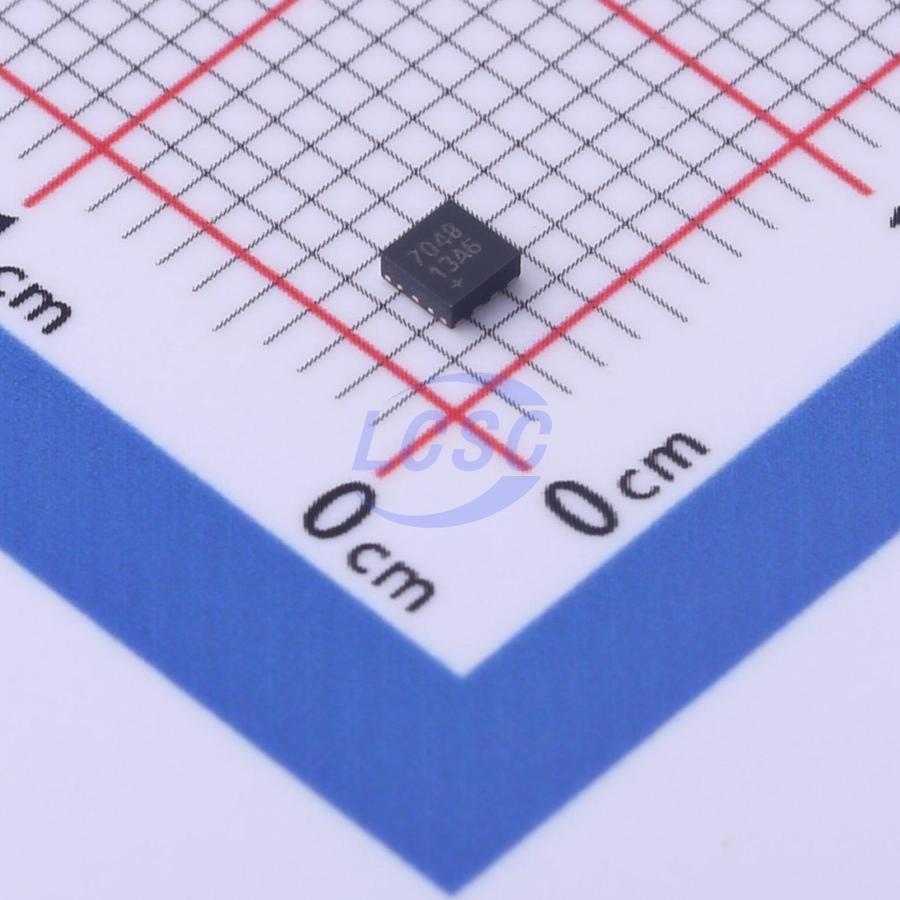

MAX17048G+T10
I2C Lithium Battery DFN-8-EP(2x2) Battery Management RoHS
1-Cell/2-Cell Fuel Gauge with ModelGauge
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX17048G+T10
- Store part #
- C2682616
- Package / case
- DFN-8-EP(2x2)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,884 in stock
#C2682616
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹290.48 | ₹290.48 |
| 10+ | ₹256.79 | ₹2,567.90 |
| 30+ | ₹232.90 | ₹6,987.00 |
| 100+ | ₹211.18 | ₹21,118.00 |
| 500+ | ₹185.54 | ₹92,770.00 |
| 1,000+ | ₹181.63 | ₹1,81,630.00 |
1 × ₹290.48
₹290.48
excl. GST
₹342.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
MAX17048G+T10
₹290.48 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- I2C
- Quiescent Current
- 3uA
- 0V Battery Charge
- Not supported
- Operating Voltage
- 2.5V~4.5V
- Type of Battery
- Lithium Battery
- Features
- Automatic recharge;Overcharge protection;Over-discharge protection;Programmable charging current
- The Chip Type
- Monitoring IC
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.027 g
Overview
The MAX17048/MAX17049 ICs are tiny, micropower current fuel gauges for lithium-ion (Li+) batteries in handheld and portable equipment. The MAX17048 operates with a single lithium cell and the MAX17049 with two lithium cells in series. The ICs use the sophisticated Li+ battery-modeling algorithm ModelGauge to track the battery relative state-ofcharge (SOC) continuously over widely varying charge and discharge conditions. The ModelGauge algorithm eliminates current-sense resistor and battery-learn cycles required in traditional fuel gauges. Temperature compensation is implemented using the system microcontroller. The ICs automatically detect when the battery enters a low-current state and enters low-power 3μA hibernate mode, while still providing accurate fuel gauging. The ICs automatically exit hibernate mode when the system returns to active state. On battery insertion, the ICs debounce initial voltage measurements to improve the initial SOC estimate, thus allowing them to be located on system side. SOC, voltage, and rate information is accessed using the I2C interface. The ICs are available in a tiny 0.9mm×1.7mm, 8-bump wafer-level package (WLP), or a 2mm x 2mm, 8-pin TDFN package.
Applications
- Smartphones, Tablets
- Smartwatches, Wearables
- Bluetooth Headsets
- Health and Fitness Monitors
- Digital Still, Video, and Action Cameras
- Medical Devices
- Handheld Computers and Terminals
- Wireless Speakers
- Home and Building Automation, Sensors
Key features
- MAX17048: 1 Cell, MAX17049: 2 Cells
- Precision ±7.5mV/Cell Voltage Measurement
- ModelGauge Algorithm
- Provides Accurate State-of-Charge
- Compensates for Temperature/Load Variation
- Does Not Accumulate Errors, Unlike Coulomb Counters
- Eliminates Learning
- Eliminates Current-Sense Resistor
- Ultra-Low Quiescent Current
- 3μA Hibernate, 23μA Active
- Fuel Gauges in Hibernate Mode
- Automatically Enters and Exits Hibernate Mode
- Reports Charge and Discharge Rate
- Battery-Insertion Debounce
- Best of 16 Samples to Estimate Initial SOC
- Programmable Reset for Battery Swap
- 2.28V to 3.48V Range
- Configurable Alert Indicator
- Low SOC
- 1% Change in SOC
- Battery Undervoltage/Overvoltage
- VRESET Alert
- I2C Interface
- 8-Bit OTP ID Register (Contact Factory)
