MAXIMDatasheet (PDF)

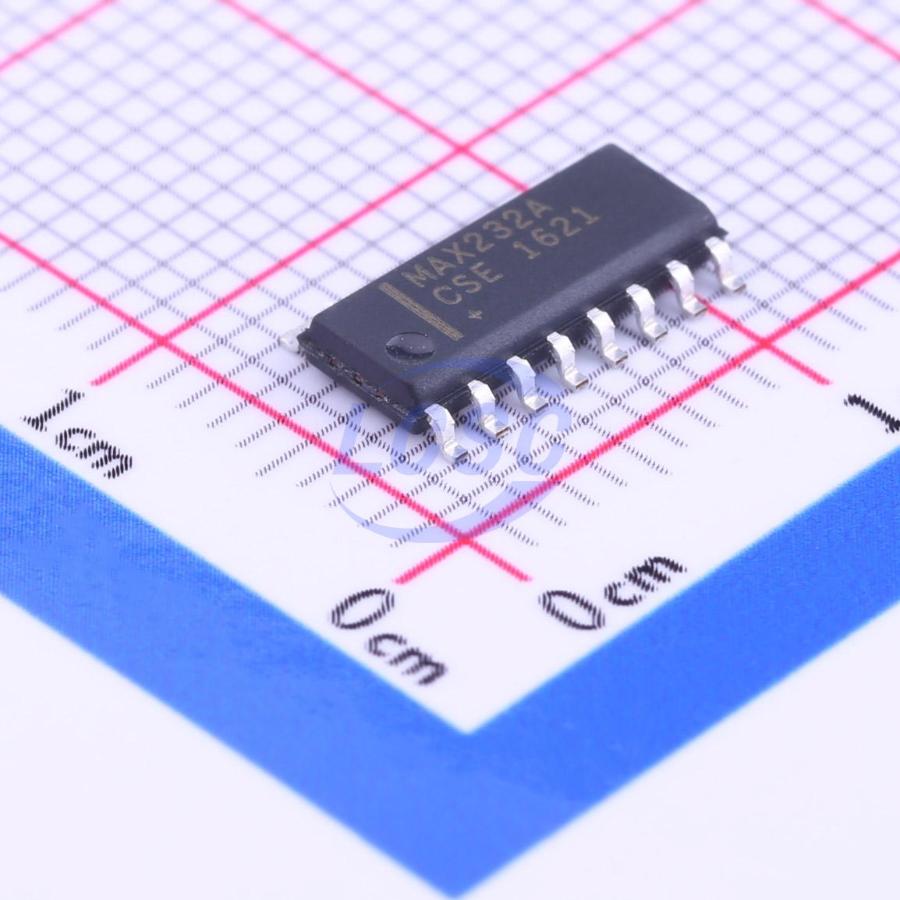

MAX232ACSE+
5V Transceiver 120Kbps SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS3 CompliantActive
+5V-Powered, Multichannel RS-232 Drivers/Receivers
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX232ACSE+
- Store part #
- C143392
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,544 in stock
#C143392
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹643.39 | ₹643.39 |
| 10+ | ₹566.05 | ₹5,660.50 |
| 50+ | ₹519.90 | ₹25,995.00 |
| 100+ | ₹473.40 | ₹47,340.00 |
| 500+ | ₹451.94 | ₹2,25,970.00 |
| 1,000+ | ₹442.20 | ₹4,42,200.00 |
1 × ₹643.39
₹643.39
excl. GST
₹759.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MAX232ACSE+
₹643.39 for 1 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 120Kbps
- Operating Temperature
- 0℃~+70℃
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Low-power mode
- Number of Receivers
- 2
- Quiescent Supply Current
- 5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.304 g
Overview
The MAX220–MAX249 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX225, MAX233, MAX235, and MAX245/MAX246/ MAX247 use no external components and are recommended for applications where printed circuit board space is critical. The MAX220-MAX249 are offered in 26 different packages with temperatures from 0 to +70℃ up to -55℃ to +125℃.
Applications
- Interface Translation
- Multidrop RS-232 Networks
- Portable Diagnostics Equipment
Key features
- Saves Board Space
- Integrated Charge Pump Circuitry
- Eliminates the Need for a Bipolar ±12V Supply
- Enables Single Supply Operation from +5V Supply
- Integrated Capacitors (MAX223, MAX233, MAX235, MAX245-MAX247)
- 5µW Shutdown Mode
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232ACSE+T#C14690MAXIM · SOIC-16 | MAXIM | SOIC-16 | 386 | ₹505.52 · 386 in stock | View |
 | MAX232EESE+T#C113731MAXIM · SOIC-16 | MAXIM | SOIC-16 | 751 | ₹417.51 · 751 in stock | View |
 | MAX232ESE-MS#C7434438MSKSEMI · SOP-16 | MSKSEMI | SOP-16 | 4,110 | ₹49.18 · 4,110 in stock | View |
 | SP232EEN-MS#C7434439MSKSEMI · SOP-16 | MSKSEMI | SOP-16 | 605 | ₹39.93 · 605 in stock | View |
 | MAX202ECSE+T#C116494MAXIM · SOP-16 | MAXIM | SOP-16 | 194 | ₹340.77 · 194 in stock | View |
