TDSEMICDatasheet (PDF)

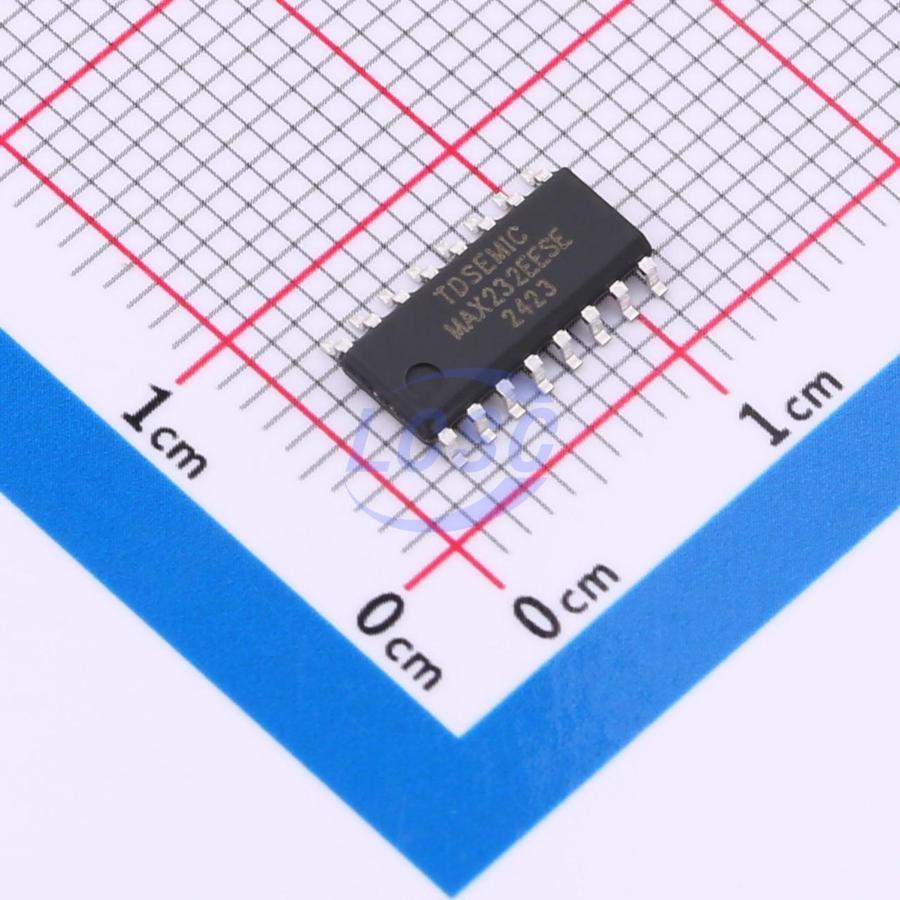

MAX232EESE-TD
4.5V~5.5V Transceiver 140Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
5V Dual channel RS-232 Drivers/Receivers
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MAX232EESE-TD
- Store part #
- C42422008
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,230 in stock
#C42422008
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.78 | ₹53.78 |
| 10+ | ₹42.28 | ₹422.80 |
| 30+ | ₹37.52 | ₹1,125.60 |
| 100+ | ₹31.22 | ₹3,122.00 |
| 500+ | ₹28.63 | ₹14,315.00 |
| 1,000+ | ₹26.90 | ₹26,900.00 |
1 × ₹53.78
₹53.78
excl. GST
₹63.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX232EESE-TD
₹53.78 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 140Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.234 g
Overview
MAX232XXX-TD is a dual driver/receiver compliant with RS-232 standard, powered by a single supply with bipolar output voltages. The transmitter output voltage is generated by an on-chip charge pump voltage doubler, which requires four external 1.0μF capacitors. This device is designed for modern high-performance computing systems and high-speed electronic equipment requiring reliable data exchange between remote nodes. Input voltage levels are compatible with standard CMOS and TTL logic levels.
Applications
- Portable computers
- Battery-powered RS-232 systems
- Interface conversion
- Low-power modems
- Terminal equipment
Key features
- Output voltage levels compatible with CMOS and TTL IC input levels
- Compliant with all EIA/TIA-232E and V.28/V.24 specifications
- Supply voltage range up to 5.5V
- Low input current: 1.0μA at 25℃
- Output current 30mA
- Available in SOP-16 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232CDR-TD#C42422004TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 904 | ₹52.38 · 904 in stock | View |
 | MAX232DR-TD#C42422006TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 570 | ₹47.32 · 570 in stock | View |
 | MAX232ESE-TD#C42422009TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 3,015 | ₹28.64 · 3,015 in stock | View |
 | MAX232IDR-TD#C42422010TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 2,220 | ₹33.13 · 2,220 in stock | View |
 | SP202CN-TD#C42422067TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 990 | ₹40.42 · 990 in stock | View |
