TDSEMICDatasheet (PDF)

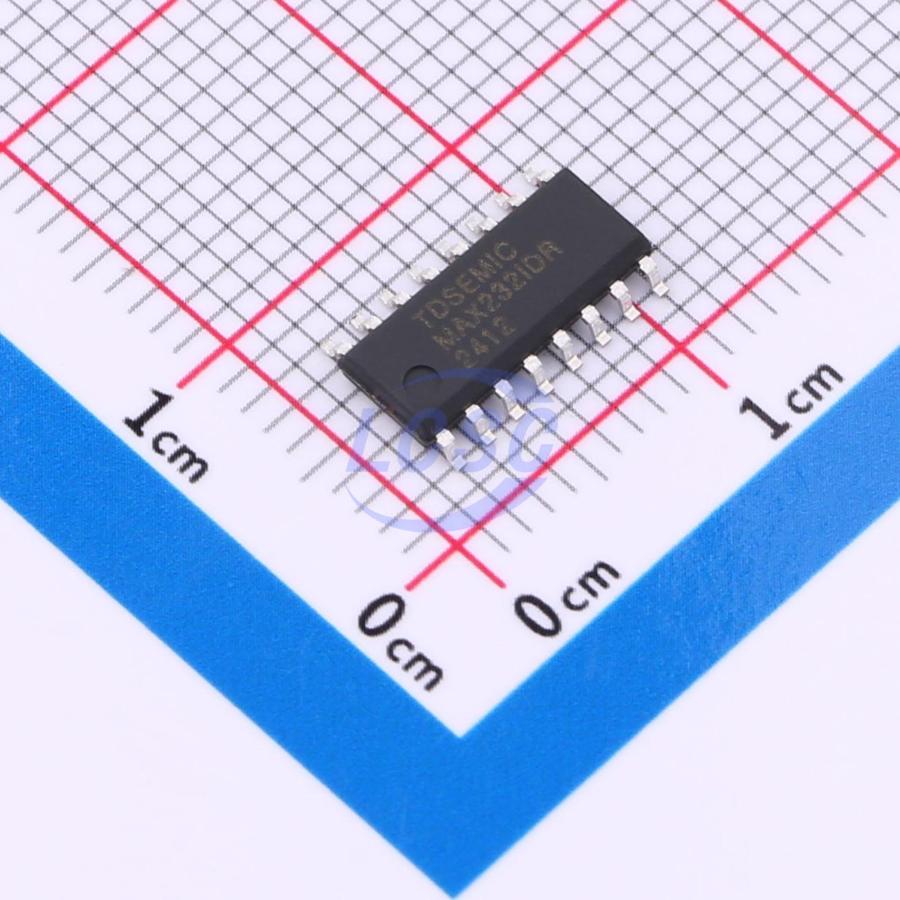

MAX232IDR-TD
4.5V~5.5V Transceiver 140Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
5V Dual channel RS-232 Drivers/Receivers
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MAX232IDR-TD
- Store part #
- C42422010
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,220 in stock
#C42422010
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.13 | ₹165.65 |
| 50+ | ₹28.93 | ₹1,446.50 |
| 150+ | ₹27.13 | ₹4,069.50 |
| 500+ | ₹24.90 | ₹12,450.00 |
| 2,500+ | ₹23.89 | ₹59,725.00 |
| 5,000+ | ₹23.30 | ₹1,16,500.00 |
5 × ₹33.13
₹165.65
excl. GST
₹195.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX232IDR-TD
₹165.65 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 140Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Automatic level shifting;Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.234 g
Overview
The MAX232IDR is a dual driver/receiver of RS - 232 standard with a single supply voltage and bipolar output voltage of the transmitter formed by a built - In voltage multiplying generator on four 1.0μF external capacitors, designed for use in state - of - the - art high performance computing systems, high - speed electronic devices with high reliability of information exchange between remote objects. Input voltage levels are compatible with standard CMOS and TTL levels.
Applications
- Portable Computers
- Battery - Powered RS - 232 Systems
- Interface Translation
- Low - Power Modems
- Terminals
Key features
- Output voltage levels are compatible with input levels of CMOS and TTL integrated circuits
- Meets All EIA/TIA - 232E and V.28V.24 Specifications
- Supply voltage range from 5.5V
- Low input current: 1.0μA at 25°C
- Output current 30mA
- Available in SOP - 16 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232CDR-TD#C42422004TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 904 | ₹52.38 · 904 in stock | View |
 | MAX232DR-TD#C42422006TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 570 | ₹47.32 · 570 in stock | View |
 | MAX232EESE-TD#C42422008TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 5,230 | ₹53.78 · 5,230 in stock | View |
 | MAX232ESE-TD#C42422009TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 3,015 | ₹28.64 · 3,015 in stock | View |
 | SP202CN-TD#C42422067TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 990 | ₹40.42 · 990 in stock | View |
