NXP
TJA1043T/1J4.5V~5.5V CAN FD Transceiver 5Mbps SOIC-14 Drivers, Receivers, Transceivers RoHS
From
₹94.90
3,25,300 in stock
MAXIMDatasheet (PDF)

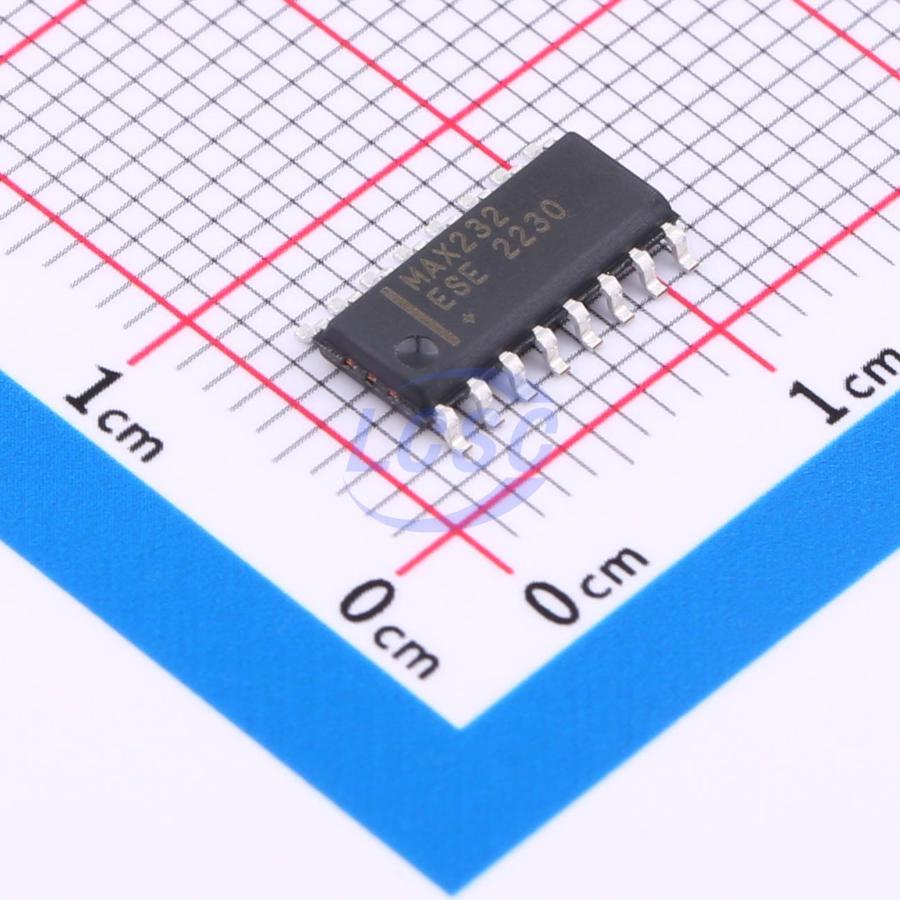

MAX232ESE+T
Transceiver 4.5V~5.5V 120Kbps SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS3 CompliantActive
+5V-Powered, Multichannel RS-232 Drivers/Receivers
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX232ESE+T
- Store part #
- C26860
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,110 in stock
#C26860
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹204.31 | ₹204.31 |
| 10+ | ₹179.88 | ₹1,798.80 |
| 30+ | ₹156.96 | ₹4,708.80 |
| 100+ | ₹139.67 | ₹13,967.00 |
| 500+ | ₹132.75 | ₹66,375.00 |
| 1,000+ | ₹129.30 | ₹1,29,300.00 |
1 × ₹204.31
₹204.31
excl. GST
₹241.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX232ESE+T
₹204.31 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 4.5V~5.5V
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Low-power mode
- Number of Receivers
- 2
- Quiescent Supply Current
- 5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.368 g
Overview
The MAX220–MAX249 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ± 12V is not available. These parts are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The MAX225, MAX233, MAX235, and MAX245/MAX246/MAX247 use no external components and are recommended for applications where printed circuit board space is critical.
Applications
- Portable Computers
- Low-Power Modems
- Interface Translation
- Battery-Powered RS-232 Systems
- Multidrop RS-232 Networks
Key features
- For Low-Voltage, Integrated ESD Applications MAX3222E/MAX3232E/MAX3237E/MAX3241E/ MAX3246E: +3.08 to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors (MAX3246E Available in a UCSP Package)
- For Low-Cost Applications MAX221E: ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIT232ESE#C313016SIT · SO-16 | SIT | SO-16 | 1,553 | ₹78.88 · 1,553 in stock | View |
 | SIT202EESE#C382674SIT · SOP-16 | SIT | SOP-16 | 1 | ₹78.81 · 1 in stock | View |
 | MAX232D#C5342103Tokmas · SOP-16 | Tokmas | SOP-16 | 3,510 | ₹46.74 · 3,510 in stock | View |
 | MAX232AESE+#C2997993MAXIM · SOIC-16 | MAXIM | SOIC-16 | 38 | ₹499.76 · 38 in stock | View |
 | ST232EBDR#C6870ST · SOIC-16 | ST | SOIC-16 | 282 | ₹84.31 · 282 in stock | View |
