TIDatasheet (PDF)

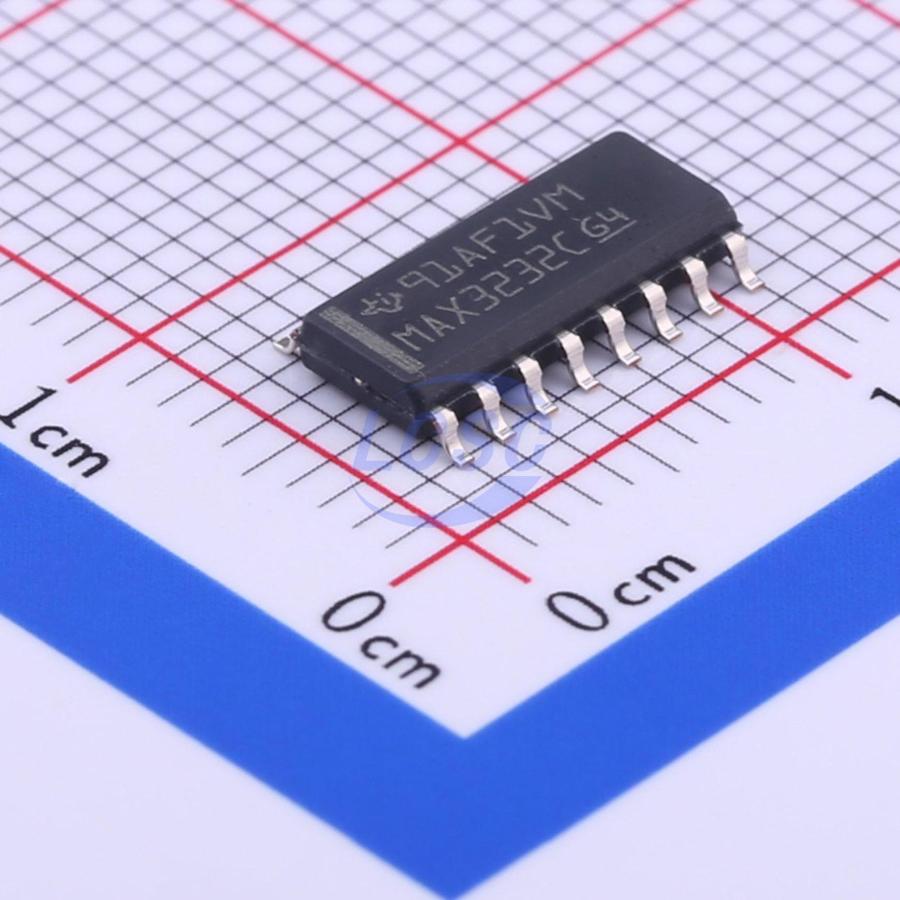

MAX3232CDR
Transceiver 3.3V~5.5V 250Kbps SOP-16-150mil Drivers, Receivers, Transceivers RoHS
PopularSOP-16-150milROHS CompliantActive
3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With ±15-kV ESD Protection
- Manufacturer
- TI
- Manufacturer part #
- MAX3232CDR
- Store part #
- C45843
- Package / case
- SOP-16-150mil
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
43,730 in stock
#C45843
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.48 | ₹65.48 |
| 10+ | ₹51.77 | ₹517.70 |
| 30+ | ₹45.68 | ₹1,370.40 |
| 100+ | ₹38.50 | ₹3,850.00 |
| 500+ | ₹32.41 | ₹16,205.00 |
| 1,000+ | ₹30.46 | ₹30,460.00 |
1 × ₹65.48
₹65.48
excl. GST
₹77.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3232CDR
₹65.48 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3.3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.314 g
Overview
The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serialport connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
Applications
- Battery-Powered Systems
- PDAs
- Notebooks
- Laptops
- Palmtop PCs
- Hand-Held Equipment
Key features
- RS-232 Bus-Terminal ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
- Meets or Exceeds the Requirements of TIA/EIA 232-F and ITU V.28 Standards
- Operates With 3-V to 5.5-V Vcc Supply
- Operates up to 250 kbit/s
- Two Drivers and Two Receivers
- Low Supply Current: 300 μA Typical
- External Capacitors: 4×0.1 μF
- Accepts 5-V Logic Input With 3.3-V Supply
- Alternative High-Speed Terminal-Compatible Devices (1 Mbit/s) SN65C3232 (-40°C to 85°C), SN75C3232 (0°C to 70°C)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TRSF3232ECDR#C2671395TI · SOIC-16 | TI | SOIC-16 | 237 | ₹319.81 · 237 in stock | View |
 | TRS3232ECDR#C2867695TI · SOIC-16 | TI | SOIC-16 | 3,356 | ₹146.79 · 3,356 in stock | View |
 | MAX3232ECDR#C414613TI · SOIC-16 | TI | SOIC-16 | 1,495 | ₹137.96 · 1,495 in stock | View |
 | MAX3232CDR#C5250737Tokmas · SOP-16 | Tokmas | SOP-16 | 505 | ₹49.45 · 505 in stock | View |
 | MAX3232CDR-TUDI#C53286141Tudi · SOP-16 | Tudi | SOP-16 | 200 | ₹65.05 · 200 in stock | View |
