TIDatasheet (PDF)

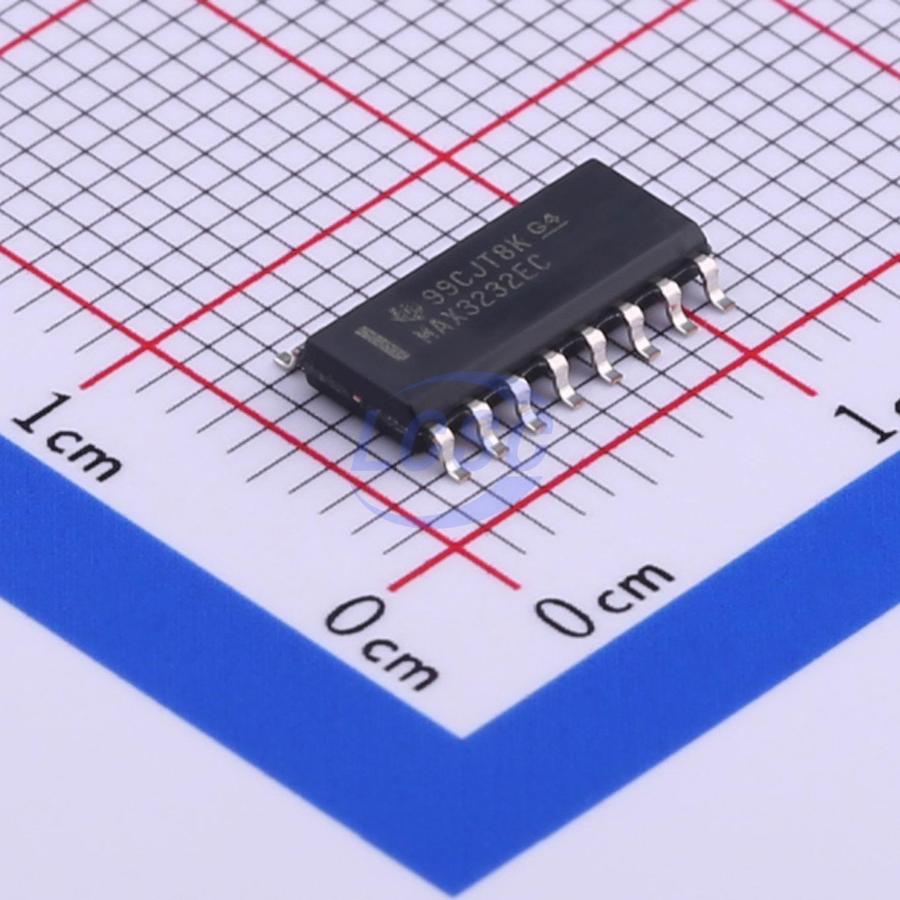

MAX3232ECDR
Transceiver 3V~5.5V 250Kbps SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS CompliantActive
3-V to 5.5-V Multichannel RS-232 Line Driver and Receiver With ±15-kV IEC ESD Protection
- Manufacturer
- TI
- Manufacturer part #
- MAX3232ECDR
- Store part #
- C414613
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,495 in stock
#C414613
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.96 | ₹137.96 |
| 10+ | ₹114.51 | ₹1,145.10 |
| 30+ | ₹101.69 | ₹3,050.70 |
| 100+ | ₹87.13 | ₹8,713.00 |
| 500+ | ₹75.17 | ₹37,585.00 |
| 1,000+ | ₹72.13 | ₹72,130.00 |
1 × ₹137.96
₹137.96
excl. GST
₹162.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3232ECDR
₹137.96 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
The MAX3232E device consists of two line drivers, two-line receivers, and a dual charge-pump circuit with ±15-kV IEC ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
Applications
- Battery-Powered Systems
- Notebooks
- Laptops
- Palmtop PCs
- Hand-Held Equipment
Key features
- ESD Protection for RS-232 Bus Pins ±15 kV (HBM) ±8 kV (IEC61000-4-2, Contact Discharge) ±15 kV (IEC61000-4-2, Air-Gap Discharge)
- Meets or Exceeds the Requirements of TIA/EIA 232-F and ITU V.28 Standards
- Operates With 3-V to 5.5-V Vcc Supply
- Operates up to 250 kbit/s
- Two Drivers and Two Receivers
- Low Supply Current: 300 μA (Typical)
- External Capacitors: 4×0.1 μF
- Accepts 5-V Logic Input With 3.3-V Supply
- Pin Compatible to Alternative High-Speed Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TRS3232ECDR#C2867695TI · SOIC-16 | TI | SOIC-16 | 3,356 | ₹146.79 · 3,356 in stock | View |
 | MAX3232CDR#C5250737Tokmas · SOP-16 | Tokmas | SOP-16 | 505 | ₹49.45 · 505 in stock | View |
 | MAX3232CDR-TUDI#C53286141Tudi · SOP-16 | Tudi | SOP-16 | 200 | ₹65.05 · 200 in stock | View |
 | ST3232ECDR#C90468ST · SO-16 | ST | SO-16 | 2 | ₹171.10 · 2 in stock | View |
 | SP3232ECN-L/TR#C916170MaxLinear · SOIC-16 | MaxLinear | SOIC-16 | 2,702 | ₹131.65 · 2,702 in stock | View |
