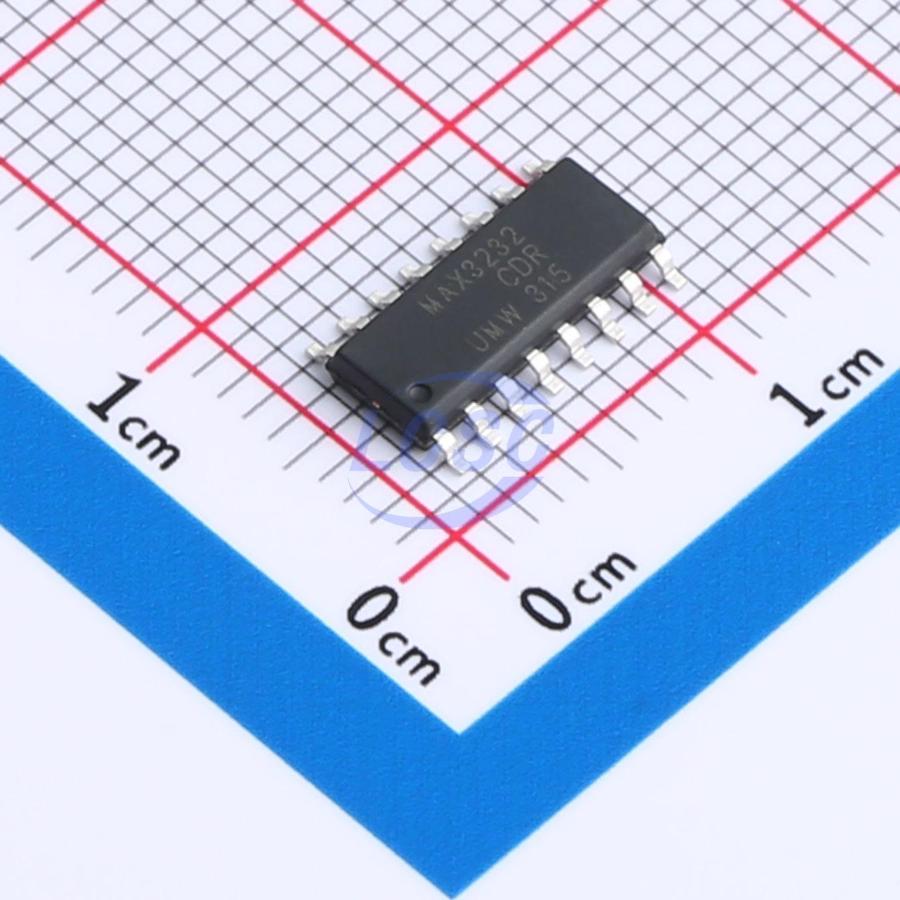

MAX3232CDR(UMW)
Transceiver 3V~5.5V 250Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
LOW POWER MULTICHANNEL RS-232 LINE TRANSCEIVERS USING FOR EXTERNAL CAPACITORS
- Manufacturer
- UMW
- Manufacturer part #
- MAX3232CDR(UMW)
- Store part #
- C5721293
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,880 in stock
#C5721293
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.43 | ₹202.15 |
| 50+ | ₹31.57 | ₹1,578.50 |
| 150+ | ₹27.77 | ₹4,165.50 |
| 500+ | ₹23.02 | ₹11,510.00 |
| 2,500+ | ₹20.92 | ₹52,300.00 |
| 5,000+ | ₹19.65 | ₹98,250.00 |
5 × ₹40.43
₹202.15
excl. GST
₹238.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3232CDR(UMW)
₹202.15 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -20℃~+85℃
- ESD Protect
- ±8kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.298 g
Overview
UMW MAX3232 features two receivers, two drivers, and a dual charge pump circuit. The device complies with TIA/EIA-232-F requirements, providing an electrical interface between asynchronous communication controllers and serial port connectors. The charge pump and four small external capacitors enable operation from a single 3.0V to 5.5V supply. The device supports data signaling rates up to 250kbit/s, with a maximum driver output slew rate of 35V/μs.
Key features
- RS-232 I/O pins with over ±8KV ESD (Human Body Model) protection
- Compliant with TIA/EIA-232-F and ITU V.28 standards
- Operates from 3.0V to 5.5V VCC supply
- Data rate up to 250kbit/s
- Two drivers and two receivers
- External capacitors: 4×0.1μF
- Accepts 5.0V logic inputs with 3.3V supply
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232IDR(UMW)#C5721296UMW · SOP-16 | UMW | SOP-16 | 6,230 | ₹42.27 · 6,230 in stock | View |
 | ST3232CDR(UMW)#C19185931UMW · SOP-16 | UMW | SOP-16 | 4,477 | ₹41.03 · 4,477 in stock | View |
 | MAX3232CSE(UMW)#C5693009UMW · SOP-16 | UMW | SOP-16 | 1,670 | ₹49.10 · 1,670 in stock | View |
 | SP3232EEN(UMW)#C2904739UMW · SOP-16 | UMW | SOP-16 | 1,57,315 | ₹36.51 · 1,57,315 in stock | View |
 | MAX3232ID(UMW)#C5721299UMW · SOP-16 | UMW | SOP-16 | 4,155 | ₹40.07 · 4,155 in stock | View |
