UMWDatasheet (PDF)

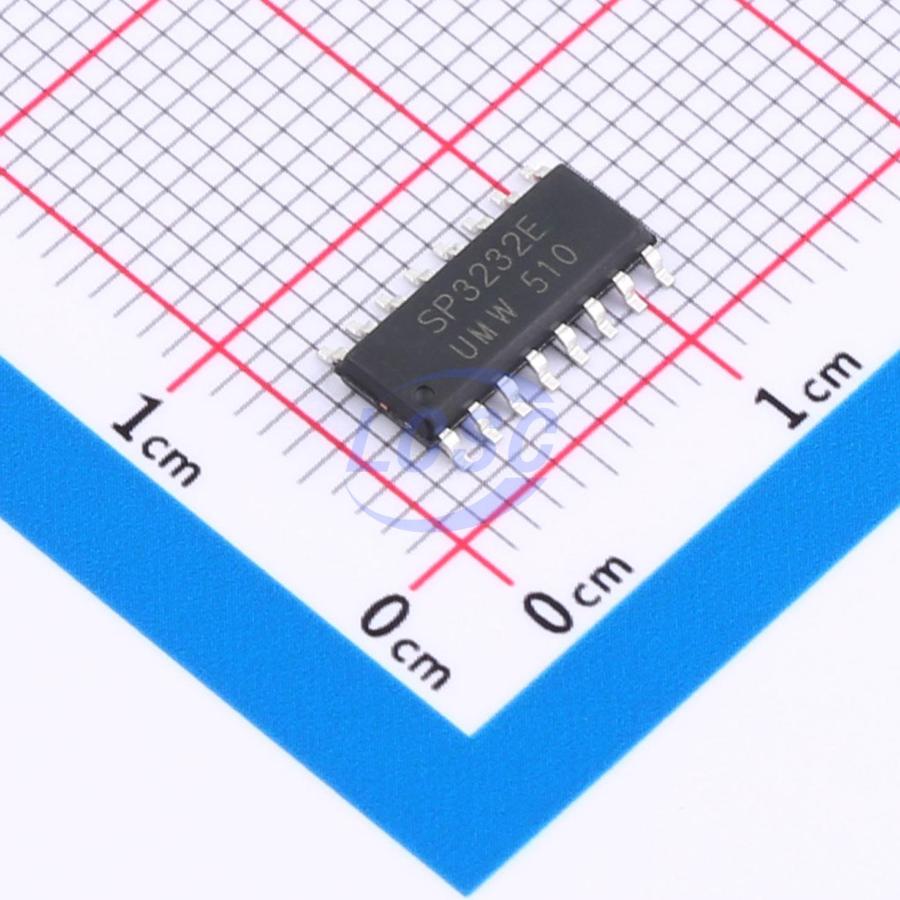

SP3232EEN(UMW)
Transceiver 3V~5.5V 250Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
Multichannel RS-232 Line Transceivers Using for 0.1uF External Capacitors
- Manufacturer
- UMW
- Manufacturer part #
- SP3232EEN(UMW)
- Store part #
- C2904739
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,57,315 in stock
#C2904739
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.51 | ₹182.55 |
| 50+ | ₹27.88 | ₹1,394.00 |
| 150+ | ₹23.66 | ₹3,549.00 |
| 500+ | ₹19.90 | ₹9,950.00 |
| 2,500+ | ₹18.85 | ₹47,125.00 |
| 5,000+ | ₹18.23 | ₹91,150.00 |
5 × ₹36.51
₹182.55
excl. GST
₹215.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP3232EEN(UMW)
₹182.55 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+105℃
- ESD Protect
- ±8kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.29 g
Overview
The UMW SP3232EEN features two receivers, two drivers, and a dual charge pump circuit. The device complies with TIA/EIA-232-F requirements, providing an electrical interface between asynchronous communication controllers and serial port connectors. The charge pump and four small external capacitors allow operation from a single 3.0V to 5.5V supply. The device supports data signaling rates up to 250kbit/s, with a maximum driver output slew rate of 30V/μs.
Key features
- RS-232 I/O pin ESD protection exceeds ±8KV (HBM)
- Compliant with TIA/EIA-232-F and ITU V.28 standards
- Operating supply voltage: 3.0V to 5.5V
- Data rate up to 250kbit/s
- Two drivers and two receivers
- External capacitors 4×0.1μF
- Accepts 5.0V logic inputs with 3.3V supply
