TIDatasheet (PDF)

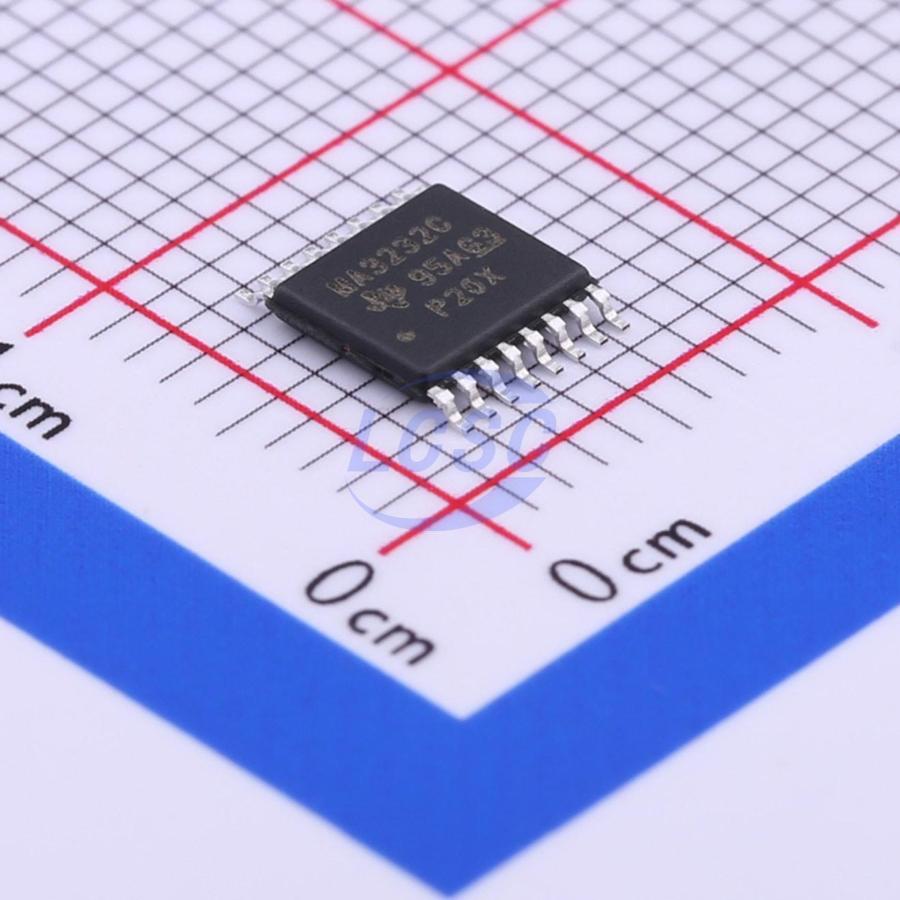

MAX3232CPWR
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS CompliantActive
3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With ±15-kV ESD Protection
- Manufacturer
- TI
- Manufacturer part #
- MAX3232CPWR
- Store part #
- C428620
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41,531 in stock
#C428620
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.02 | ₹67.02 |
| 10+ | ₹53.32 | ₹533.20 |
| 30+ | ₹47.65 | ₹1,429.50 |
| 100+ | ₹40.48 | ₹4,048.00 |
| 500+ | ₹31.55 | ₹15,775.00 |
| 1,000+ | ₹29.60 | ₹29,600.00 |
1 × ₹67.02
₹67.02
excl. GST
₹79.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MAX3232CPWR
₹67.02 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.192 g
Overview
The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serialport connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
Applications
- Battery-Powered Systems
- PDAs
- Notebooks
- Laptops
- Palmtop PCs
- Hand-Held Equipment
Key features
- RS-232 Bus-Terminal ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
- Meets or Exceeds the Requirements of TIA/EIA 232-F and ITU V.28 Standards
- Operates With 3-V to 5.5-V Supply
- Operates up to 250 kbit/s
- Two Drivers and Two Receivers
- Low Supply Current: 300 μA Typical
- External Capacitors: 4x0.1 μF
- Accepts 5-V Logic Input With 3.3-V Supply
- Alternative High-Speed Terminal-Compatible Devices (1 Mbit/s) SN65C3232 (-40℃ to 85℃) SN75C3232 (0℃ to 70℃)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232ECUE+T#C2671534MAXIM · TSSOP-16 | MAXIM | TSSOP-16 | 135 | ₹429.82 · 135 in stock | View |
 | SP3232ECY-L/TR#C3028967MaxLinear · TSSOP-16 | MaxLinear | TSSOP-16 | 284 | ₹143.47 · 284 in stock | View |
 | HGX3232ECMT/TR#C5310893HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 106 | ₹72.42 · 106 in stock | View |
 | MAX3232EUE+T#C19767MAXIM · TSSOP-16 | MAXIM | TSSOP-16 | 10,494 | ₹228.73 · 10,494 in stock | View |
 | MAX3232IDBR#C477939TI · SSOP-16-4.4mm | TI | SSOP-16-4.4mm | 1,923 | ₹290.76 · 1,923 in stock | View |
